Description

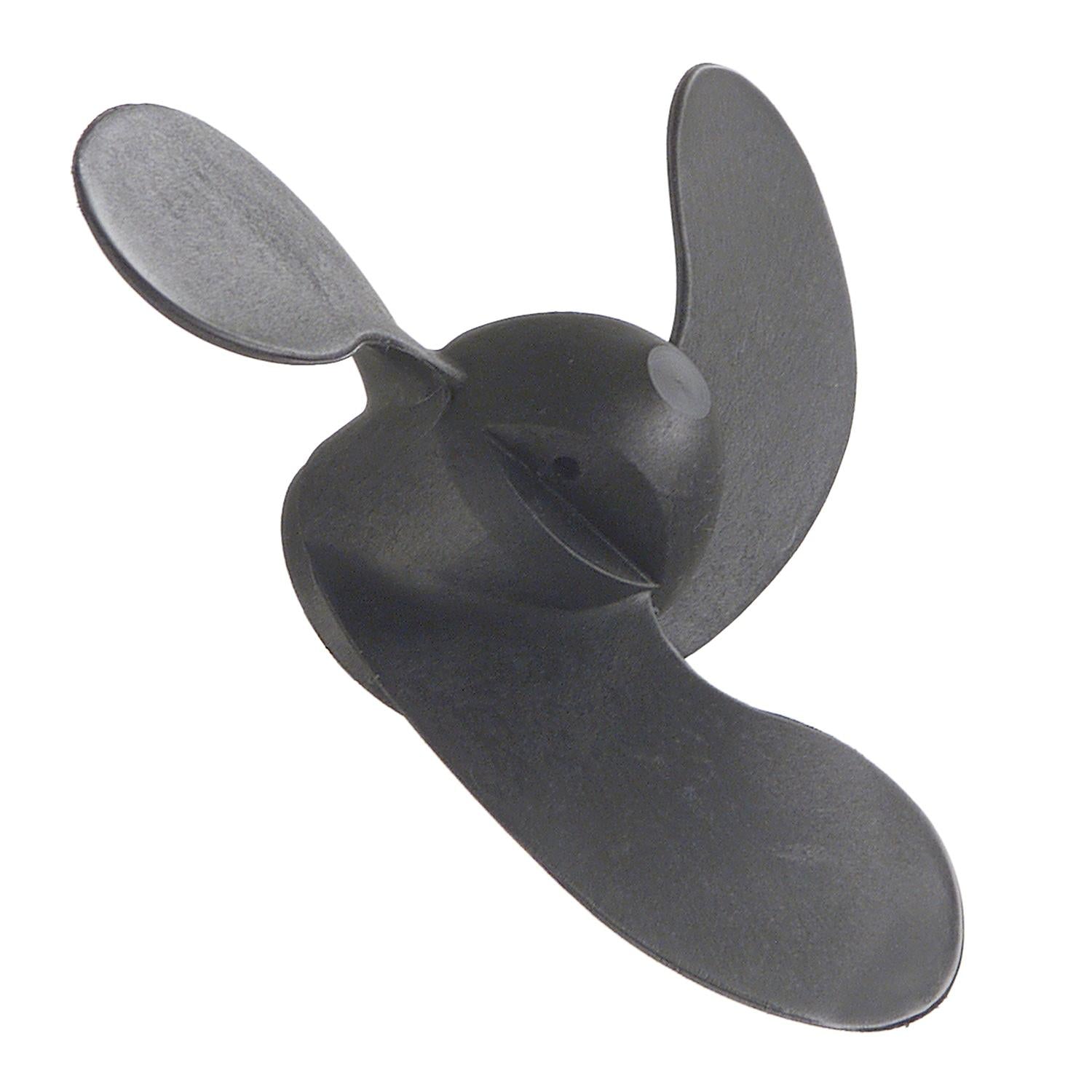

Mercury Black Max 3-Blade Plastic Propeller 7.375 x 7 RH Pin Drive for 2.5-3.5hp
Mercury Propeller 815083A02 is a Black Max 3-blade plastic propeller with a 7.375-inch diameter, 7-inch pitch, right hand rotation, and pin drive design for Mercury and Mariner 2.5hp to 3.5hp outboards. This durable and economical propeller is designed for portable outboard applications and uses a shear pin and cotter pin installation setup rather than a splined hub.
Applications
For Mercury and Mariner 2.5hp to 3.5hp TwoStroke and FourStroke outboards.
Includes 2.5 and 3.3hp TwoStroke models and 2.5 and 3.5hp FourStroke 2007 and newer models.
Standard with 2.5hp TwoStroke and FourStroke, 3.5hp FourStroke, and 3.3hp TwoStroke non-shift applications.
Shipping
Ships as one boxed Mercury Black Max propeller package.
Key Facts
Brand: Mercury Propeller
Part Number: 815083A02
UPC: 745061007185
Product Name: Black Max Plastic Propeller
Blade Count: 3
Diameter: 7.375 in.
Pitch: 7
Rotation: Right Hand
Material: Plastic
Drive Style: Pin Drive
Spline Count: 0
Engine Family: Mercury and Mariner 2.5hp to 3.5hp TwoStroke and FourStroke outboards
Country of Origin: TW
Package Length: 9.25 in.
Package Width: 8.95 in.
Package Height: 4 in.
Package Weight: 0.578 lb
Prop 65: Cancer
What’s Included
Propeller: Included
Service Notes
This propeller uses a pin drive setup and does not use a splined hub.
Requires shear pin 17-815111 for plastic propeller applications.
Requires cotter pin 18-95295.
Confirm horsepower, model year, drive style, and exact fitment before ordering.
