Description

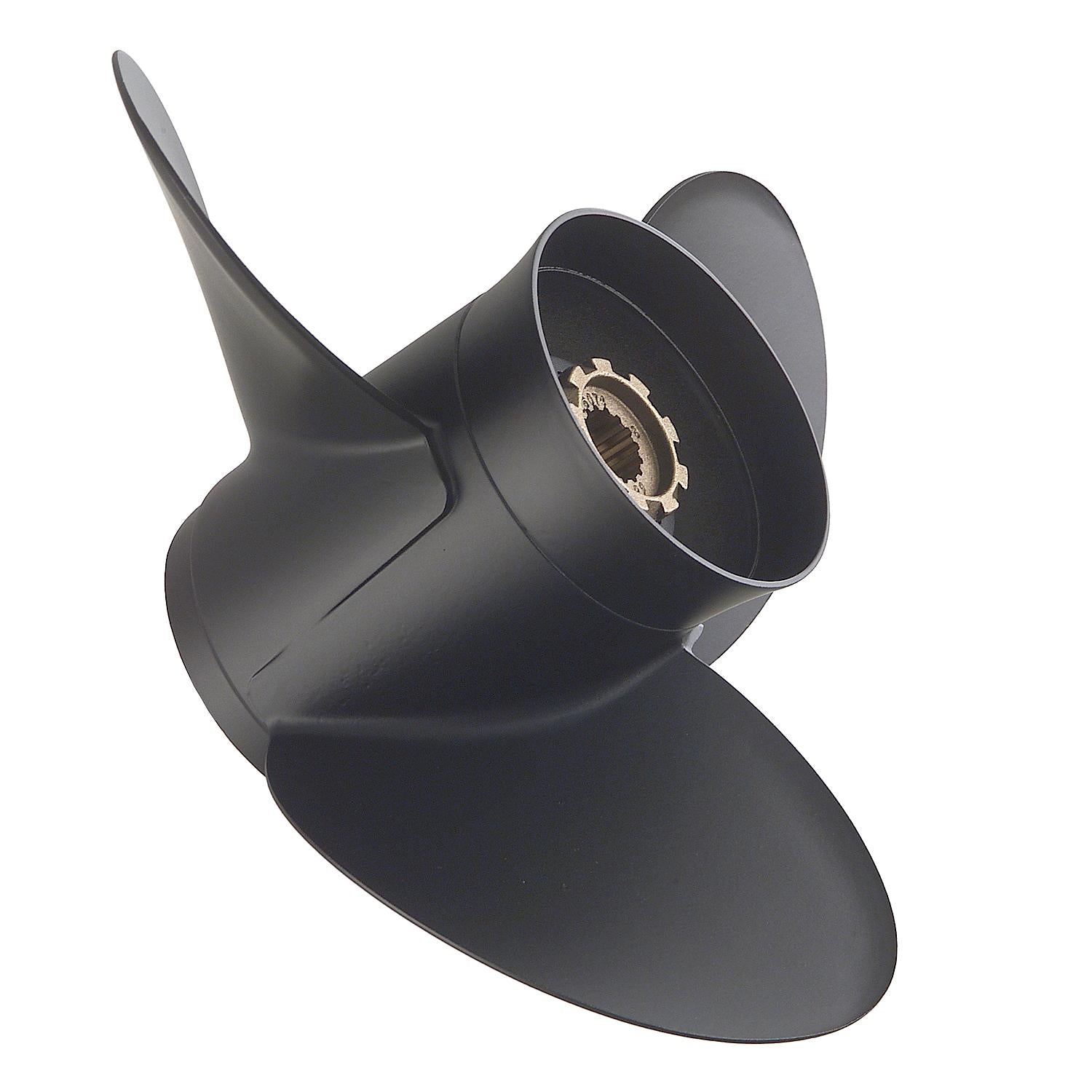

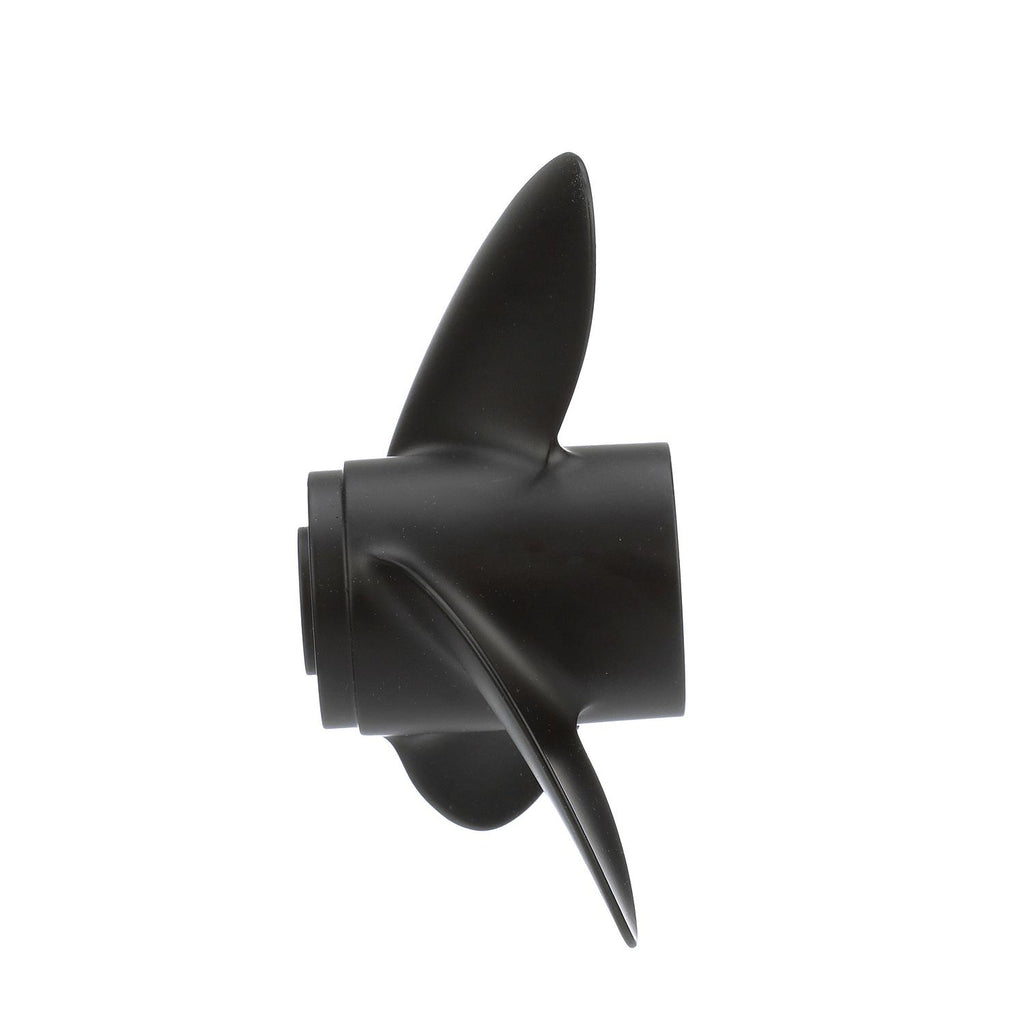

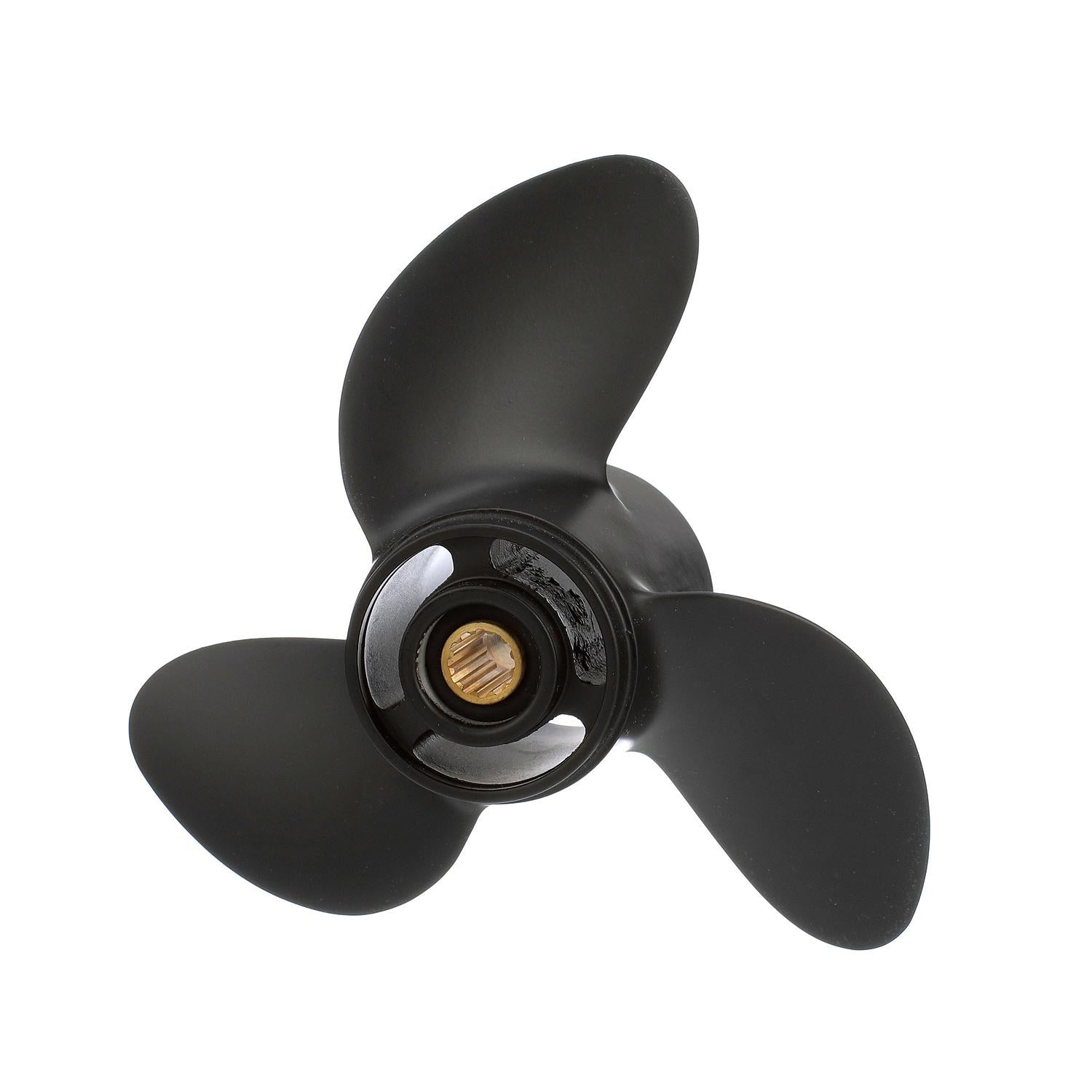

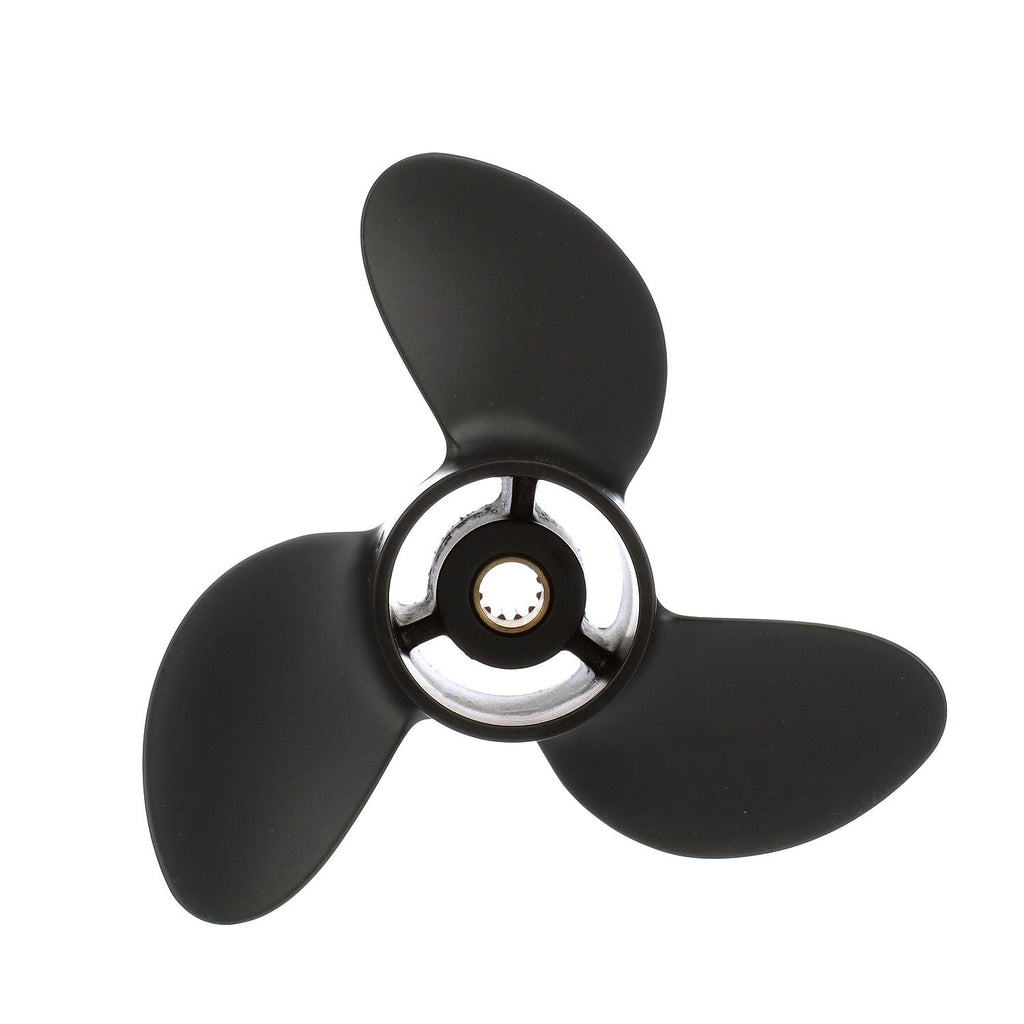

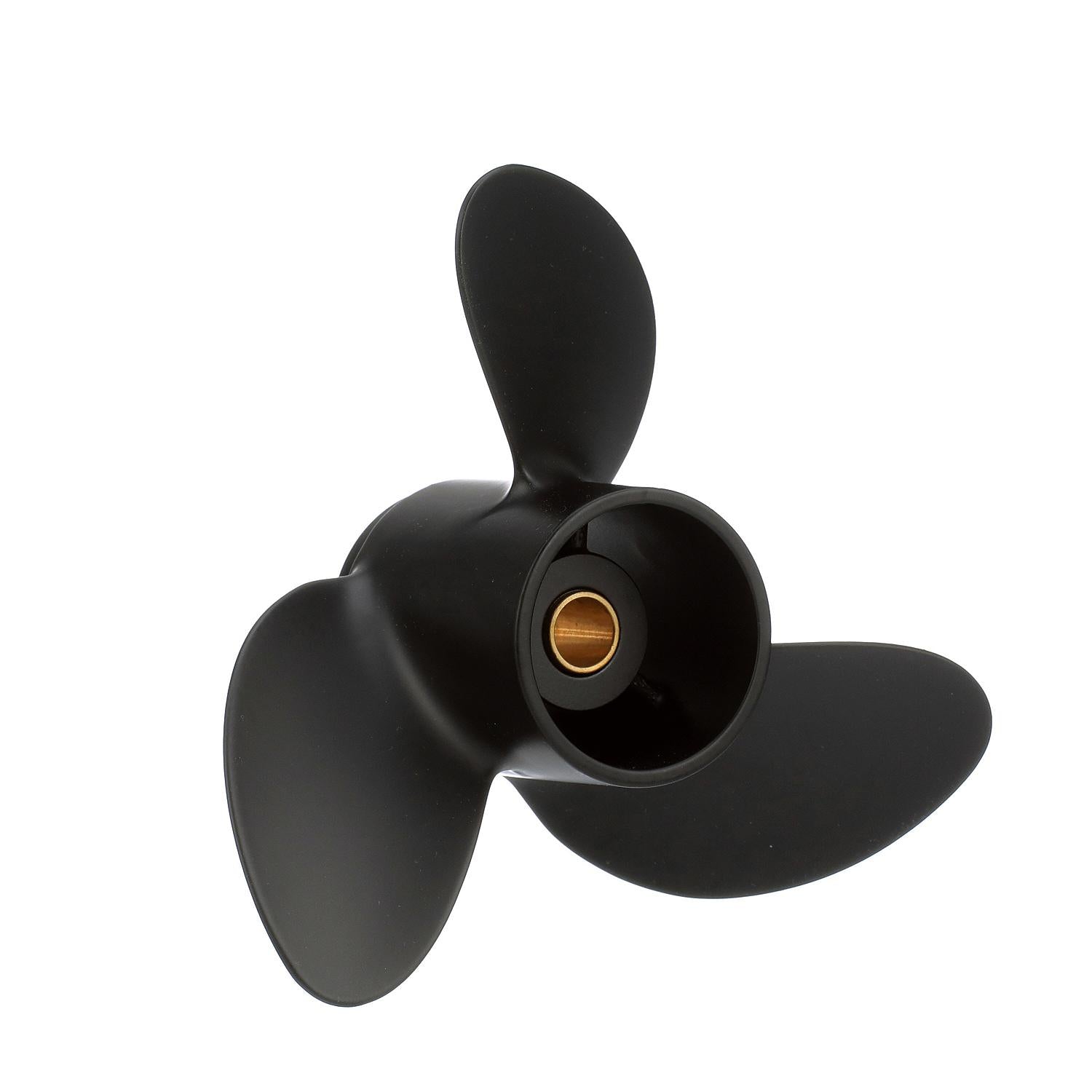

Mercury Black Max 3-Blade Aluminum Propeller 7.8 x 8 RH 12 Tooth Spline for 4-6hp
Mercury Propeller 812950A02 is a Black Max 3-blade aluminum propeller with a 7.8-inch diameter, 8-inch pitch, right hand rotation, and 12 tooth spline hub for Mercury and Mariner 4hp to 6hp outboards. Built from patented Mercalloy aluminum alloy, this propeller is designed for durability, dependable everyday performance, and use with the Flo-Torq I rubber hub system.
Applications
For Mercury and Mariner 4hp to 6hp FourStroke outboards from 1999 and newer and 4hp to 5hp TwoStroke outboards from 1987 and newer.
Standard with 5hp FourStroke and 6hp FourStroke applications.
The supplied application field also states standard with 5 HP and 5-6 HP FourStroke.
Shipping
Ships as one boxed Mercury Black Max propeller package.
Key Facts
Brand: Mercury Propeller
Part Number: 812950A02
UPC: 745061007109
Product Name: Black Max Aluminum Propeller
Blade Count: 3
Diameter: 7.8 in.
Pitch: 8

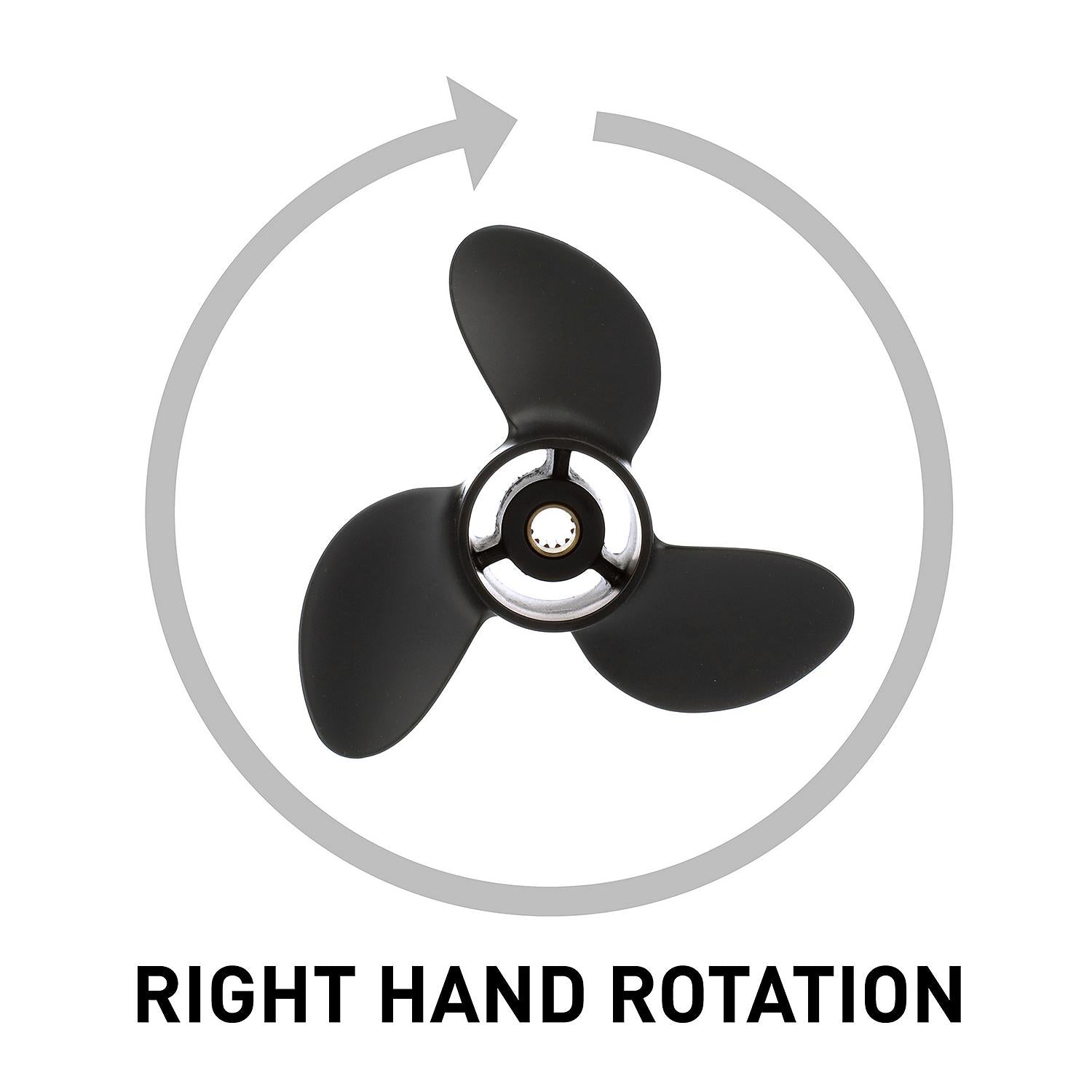

Rotation: Right Hand
Material: Aluminum
Spline Count: 12 Tooth
Hub System: Flo-Torq I rubber hub system
Engine Family: Mercury and Mariner 4hp to 6hp outboards
Country of Origin: TW
Finish: Mercury Phantom Black glossy enamel
Package Length: 9.55 in.
Package Width: 8.85 in.
Package Height: 3.35 in.
Package Weight: 1.1 lb
Prop 65: Cancer
What’s Included
Propeller: Included
Service Notes
Uses 12 tooth spline fitment.
Supplied hardware references include thrust washer 16145 1, aft prop washer 12-16146, prop nut 11-16147, and cotter pin 18-815026 locking-cotter-pin.
See your engine owner's manual for the thrust washer and prop nut part numbers that best fit your engine or drive with this propeller.
Confirm horsepower, model year, spline count, and exact fitment before ordering.
