Description

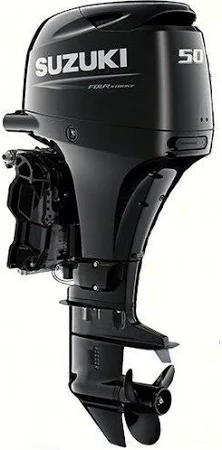

The Suzuki DF50ATL5 is a 50 HP outboard motor in Nebular Black, featuring a 20" shaft and equipped with power trim and tilt for precise and convenient control.
Suzuki’s DF50A outboard motor combines advanced engineering and efficiency in a compact, lightweight package. This three-cylinder engine features a four-valve DOHC design paired with Suzuki’s Lean Burn Control System for optimized fuel economy and reliable performance. Updated models include the Suzuki Troll Mode System, enhancing low-speed control. Recognized for innovation, the DF50A received the NMMA Innovation Award from the Boating Writers of America at the 2011 Miami Boat Show.
Suzuki DF50A — Key Specifications
| Specification | Details |
|---|---|
| Model | DF50A |
| Body Color | Pearl Nebular Black or White |
| Recommended Transom Height (inches) | L: 20 |
| Starting System | Electric |
| Weight (lbs) | L: 229 |
| Engine Type | DOHC 12-Valve |
| Fuel Delivery System | Multi Point Sequential Electronic Fuel Injection |
| No. of Cylinders | 3 |
| Piston Displacement (in³ / cc) | 57.4 / 941 |
| Bore × Stroke (in / mm) | 2.85 × 2.99 (72.5 × 76) |
| Maximum Output (HP) | 50 |
| Operating Range (RPM) | 5300 – 6300 |
| Steering | Remote (Tiller Kit Optional) |
| Choke | N/A |
| Oil Pan Capacity (qt / L) | 2.9 / 2.7 |
| Ignition System | Solid State Direct Ignition |
| System Output | 12V 19A |
| Trim Position | Power Trim and Tilt |
| Gear Ratio | 2.27:1 |
| Standard Propeller | Optional — See Dealer |
| Propeller Selection (Pitch) | 9 – 17 |
Notes: Specifications are provided for the DF50A “L” (20") model. Availability of colors and propeller pitches may vary by inventory; confirm final rigging and prop selection with your dealer based on boat, load, and target RPM at WOT.
