Suzuki 17400-92824 100 Hour Maintenance Kit for DF115A, DF115SS and DF140A Outboards

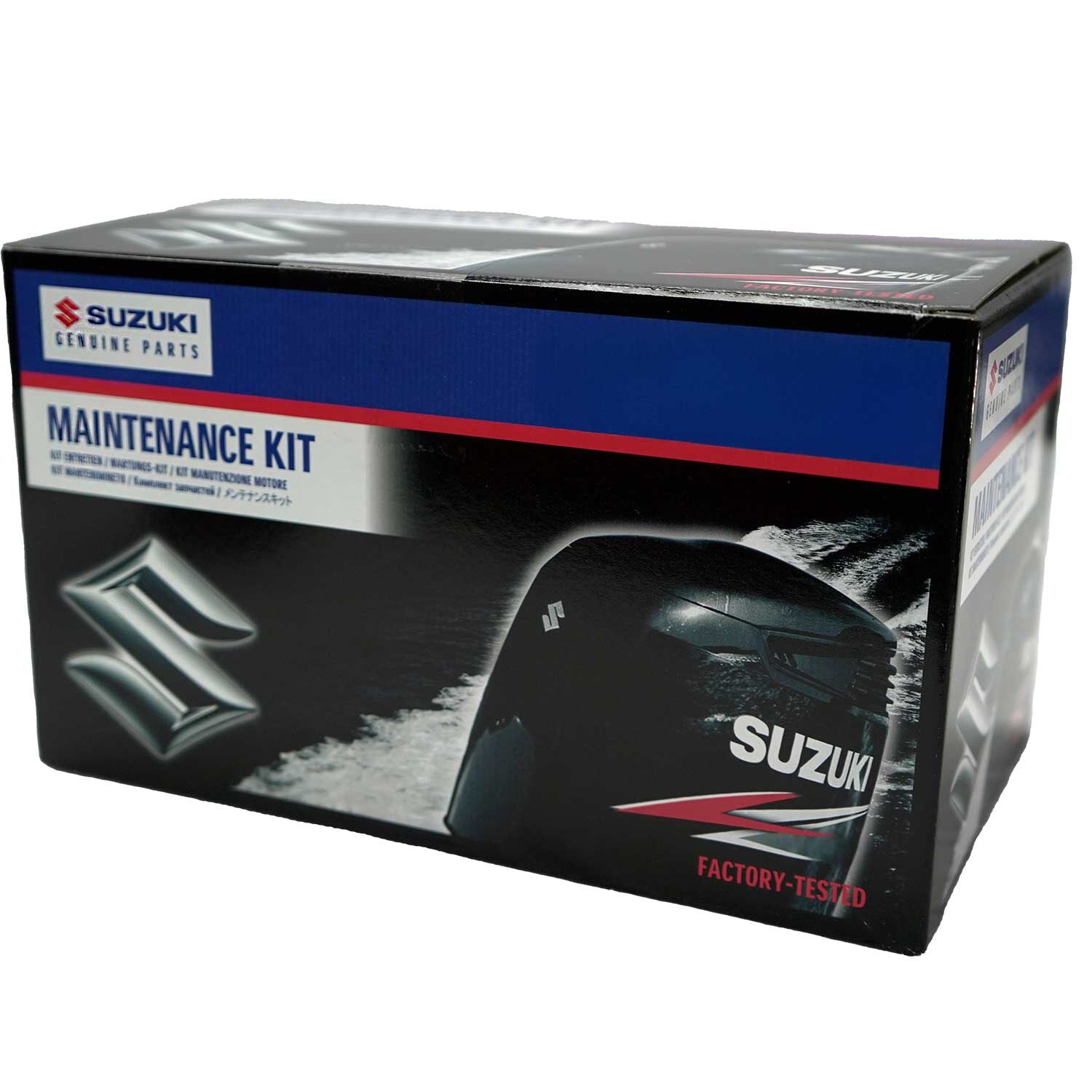

The Suzuki 17400-92824 maintenance kit is a genuine Suzuki service kit for select DF115A, DF115SS and DF140A four-stroke outboards. Suzuki lists this kit for 2013 and newer applications in this engine family.
Applications
- Make: Suzuki
- Engine style: Outboard
- Horsepower range: 115-140 HP
- Models: DF115A, DF115SS and DF140A
- Model years: 2013 and newer
- Service interval: 100 hours or 1 year, whichever comes first

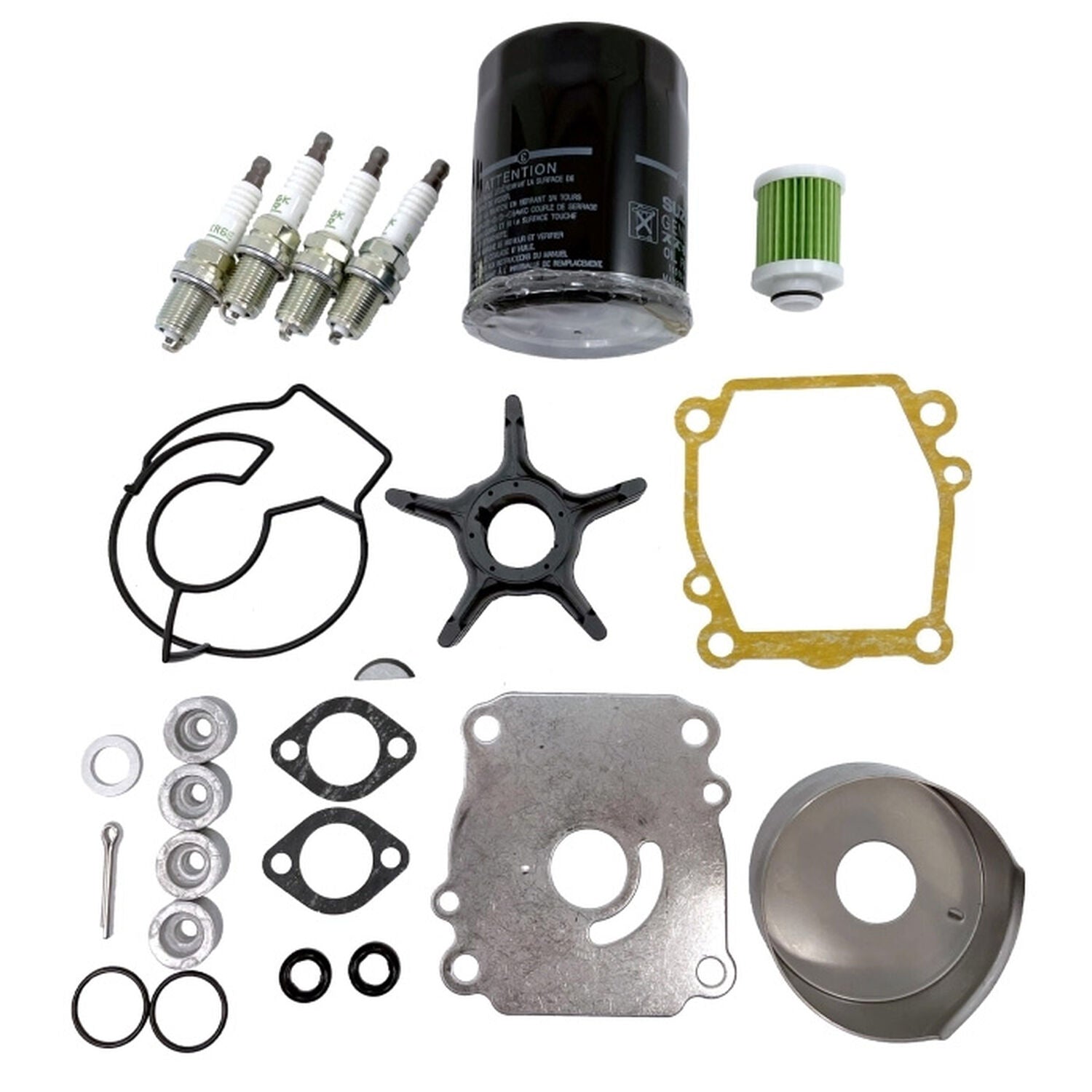

Verified Kit Contents
- 1 × 17400-92J23 water pump repair kit
- 2 × 09168-10022 gaskets (9.5 × 16.5 × 2)
- 1 × 09168-12012 gasket (12.5 × 20 × 2.5)
- 1 × 09204-03003 pin
- 2 × 09280-22019 O-rings (D: 1.9, ID: 21.8)
- 4 × 09482-00427 NGK BKR6E spark plugs
- 2 × 11265-87E10 protection-cover gaskets
- 1 × 15412-92J00 fuel filter
- 1 × 16510-61A33 engine oil filter assembly
- 4 × 55321-87J01 protection anodes
Key Details
- Suzuki part number: 17400-92824
- Product: Genuine Suzuki maintenance kit
- Sold as: One complete service-parts kit
- Fluids: Engine oil and gear lube are not included
Supersedes
This kit replaces Suzuki maintenance kit part numbers 17400-92820, 17400-92821, 17400-92822 and 17400-92823.
Service Notes
Suzuki recommends scheduled maintenance every 100 hours or once per year, whichever comes first. Kit contents and fitment can vary by model and production date.
Frequently Asked Questions
What engines does Suzuki 17400-92824 fit?
It is listed for DF115A, DF115SS and DF140A outboards from 2013 and newer where this maintenance kit is specified.
Does the kit include a water pump repair kit?
Yes. The verified Suzuki contents list includes water pump repair kit 17400-92J23 along with filters, spark plugs, anodes, gaskets, O-rings and a service pin.
Are engine oil and gear lube included?
No. This kit contains the scheduled service parts listed above; engine oil and gear lube are purchased separately.
Fitment Reminder
Please verify your engine model, model year, serial information and Suzuki part number before ordering. Refer to the appropriate Suzuki service information for installation procedures and fluid specifications.
