Description

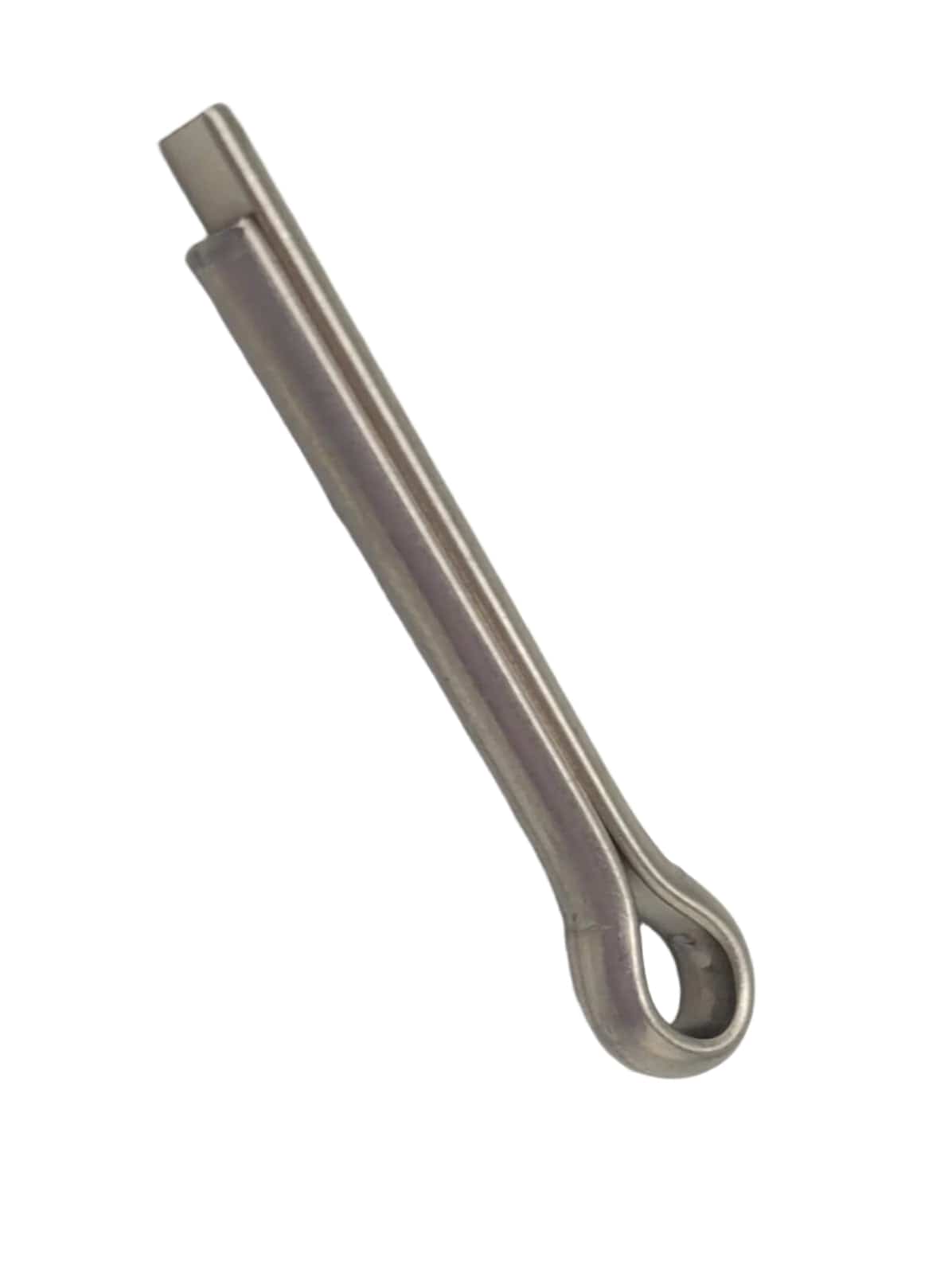

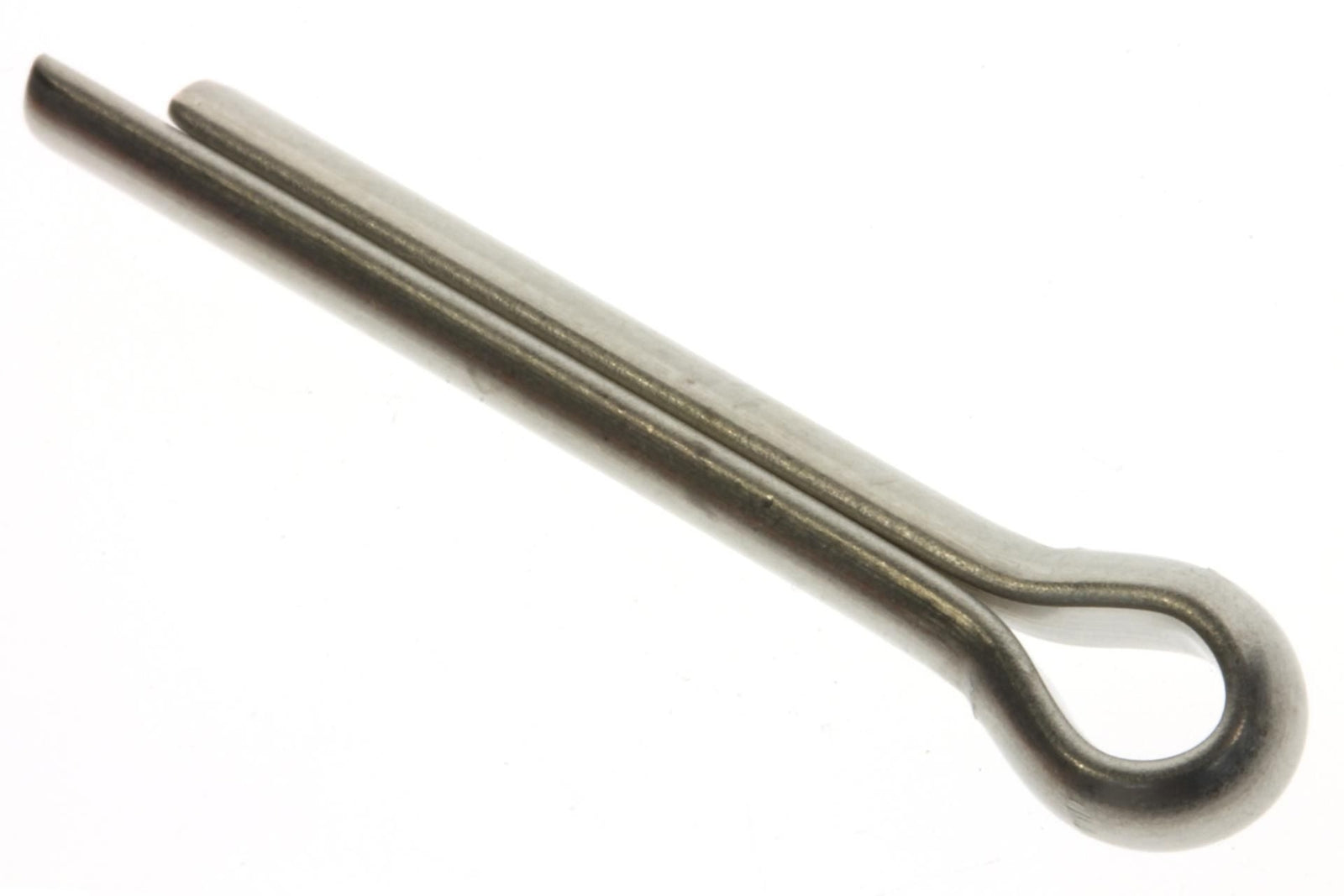

Suzuki 09204-03003 Propeller Cotter Pin
Suzuki 09204-03003 is a genuine Suzuki propeller-nut cotter pin used to lock the castle nut on compatible Suzuki outboard propeller shafts. It is listed for Watergrip and conventional propeller hardware applications, depending on the engine and propeller configuration.
Key Features
- Genuine Suzuki marine propeller hardware
- Locks the propeller castle nut to help prevent loosening during operation
- Corrosion-resistant metal construction for marine service
- Nominal size: 4 × 35 mm (approximately 5/32 × 1-3/8 in.)
- Sold individually
- Replace the cotter pin whenever the propeller nut is removed; do not straighten and reuse a previously installed pin
Verified Suzuki Applications
The Suzuki propeller-hardware chart lists 09204-03003 for the following applications where this exact cotter pin is specified:
- DF2.5
- DF4A and DF6A
- DF25A and DF30A
- DF40A, DF50A and DF60A
- DF50AV and DF60AV
- DF75A and DF90A
- DF115A, DF115BG, DF140A and DF140BG
- DF150 through DF300 non-Watergrip propeller hardware
- DF150A through DF300AP Watergrip propeller hardware
- DF300B and DF350A rear-propeller hardware
Product Details
- Brand: Suzuki
- Part number: 09204-03003
- Product type: Propeller cotter pin
- Assembly location: Propeller shaft / castle nut
- Country of origin: Japan
- Quantity: One cotter pin
Supersession Information
Suzuki 09204-03003 supersedes previous propeller cotter pin part number 09204-03004.
What’s Included

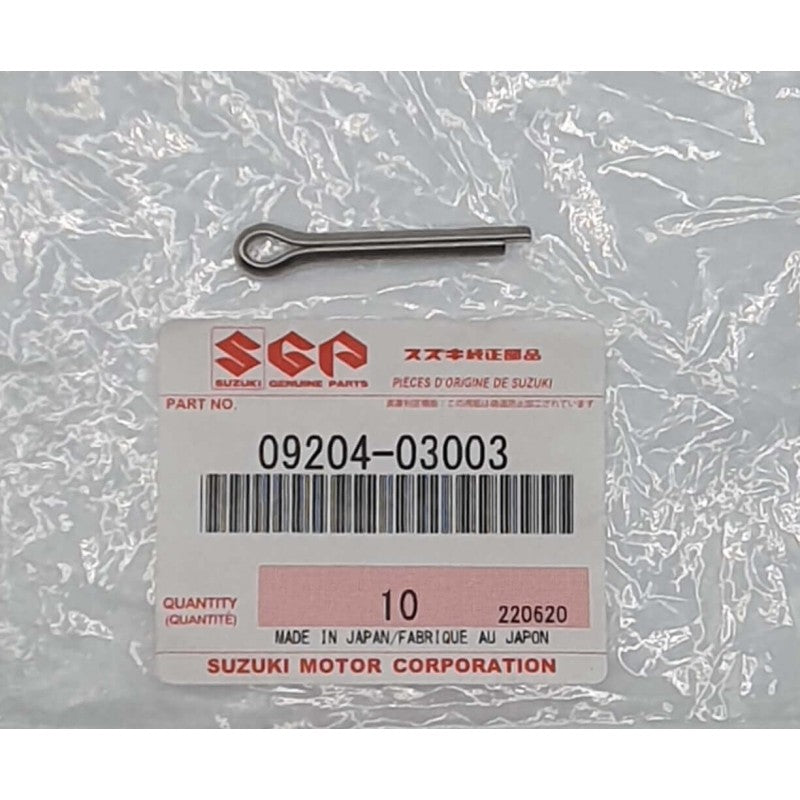

- 1 × genuine Suzuki 09204-03003 propeller cotter pin
The propeller nut, washer, spacer, stopper, propeller bushing and other installation hardware are not included.
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm. For more information, visit P65Warnings.ca.gov.
Fitment Reminder
Propeller hardware varies by engine model and propeller system. Match part number 09204-03003 to the Suzuki propeller-hardware chart or the applicable parts diagram before ordering.
