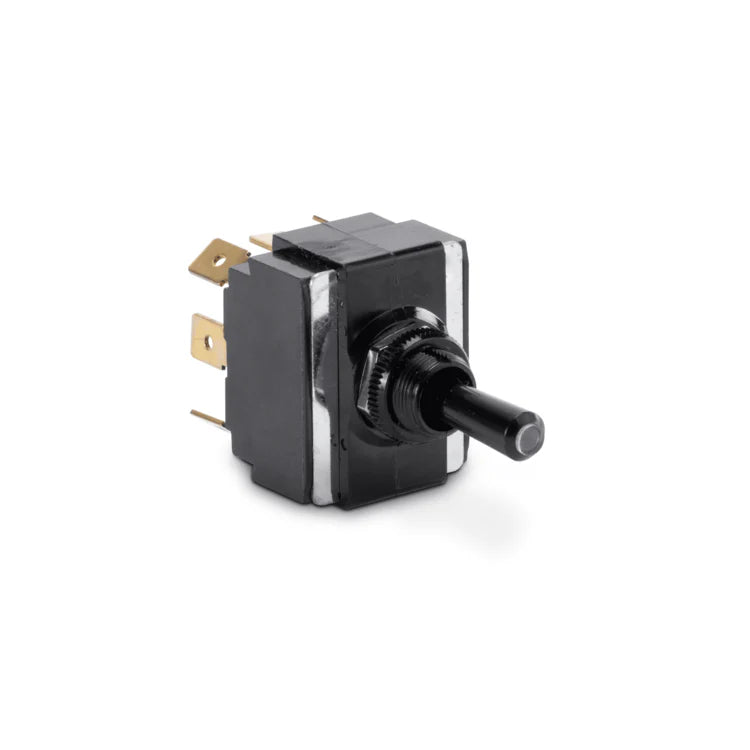

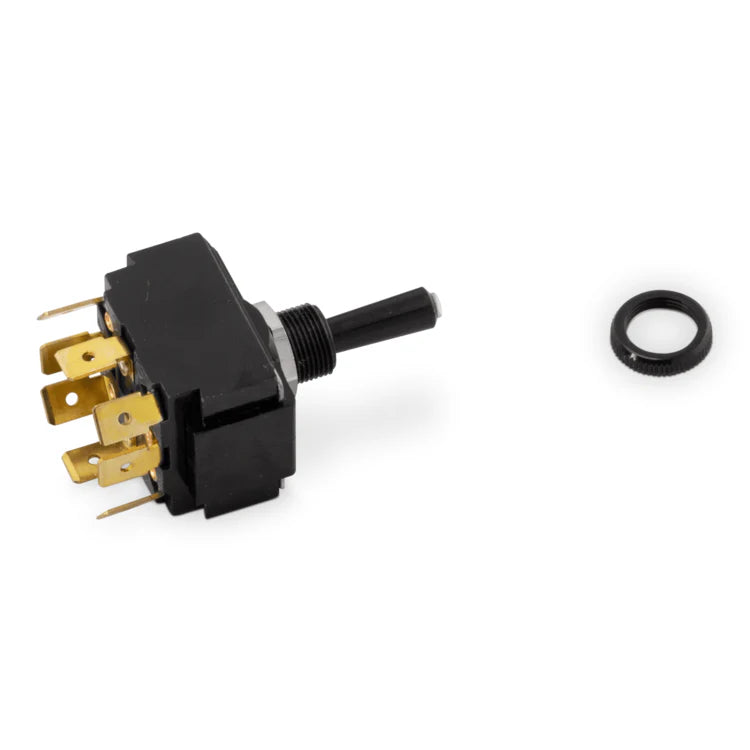

Sierra TG19530 Tip Lit DPDT Toggle Switch Momentary
The Sierra TG19530 Tip Lit Toggle Switch is a marine electrical switch with momentary ON-OFF-momentary ON DPDT function and 8 blade terminals. Sierra TG19530 features a lighted handle tip that illuminates white when panel lights are on and changes to red when the switch is on. Built with non-corrosive plastic construction, brass blade terminals, and silver contacts, this switch is designed for compatible 12VDC marine electrical panel applications.
Key Features
- Sierra tip lit toggle switch
- Part number TG19530
- Momentary ON-OFF-momentary ON switch function
- DPDT double pole double throw design
- 8 blade terminals
- Tip-lit toggle handle
- Illuminates white with panel lights on and red when switch is on
- 20 amps at 12VDC rating
- Non-corrosive plastic construction
- Brass blade terminals with silver contacts
Product Details
- Brand: Sierra
- Part Number: TG19530
- Product Type: Tip lit toggle switch
- Switch Type: DPDT
- Switch Function: (ON)-OFF-(ON)
- Terminals: 8 blade
- Rating: 20 amps at 12VDC
- Mounting Stem: 15/32" long x 15/32"-32 thread
- Construction: Non-corrosive plastic body, brass terminals, silver contacts
- Replaces: Sea-Dog 420129-1
Why You Should Buy
- Provides a reliable replacement switch for compatible marine electrical panel applications
- Momentary ON-OFF-momentary ON function works well for control circuits that require spring-return operation
- Tip-lit handle improves switch visibility and status identification at the helm or control panel
- DPDT 8-blade layout supports compatible double pole double throw wiring applications
- Marine-ready materials help support dependable use in boat electrical systems
Common Applications
- Marine electrical panel switch replacement
- Boat helm control switch service
- Momentary accessory control circuits
- 12VDC marine wiring projects
- Replacement for compatible Sea-Dog 420129-1 applications
FAQ
-
What is Sierra TG19530?
Sierra TG19530 is a tip lit DPDT toggle switch with momentary ON-OFF-momentary ON function. -
How many terminals does Sierra TG19530 have?
Sierra TG19530 has 8 blade terminals. -
What is the electrical rating for Sierra TG19530?
Sierra TG19530 is rated at 20 amps at 12VDC. -
What does the lighted tip do?
The toggle tip illuminates white when panel lights are on and changes to red when the switch is on. -
What part does Sierra TG19530 replace?
Sierra TG19530 replaces Sea-Dog 420129-1 in compatible applications.
