Description

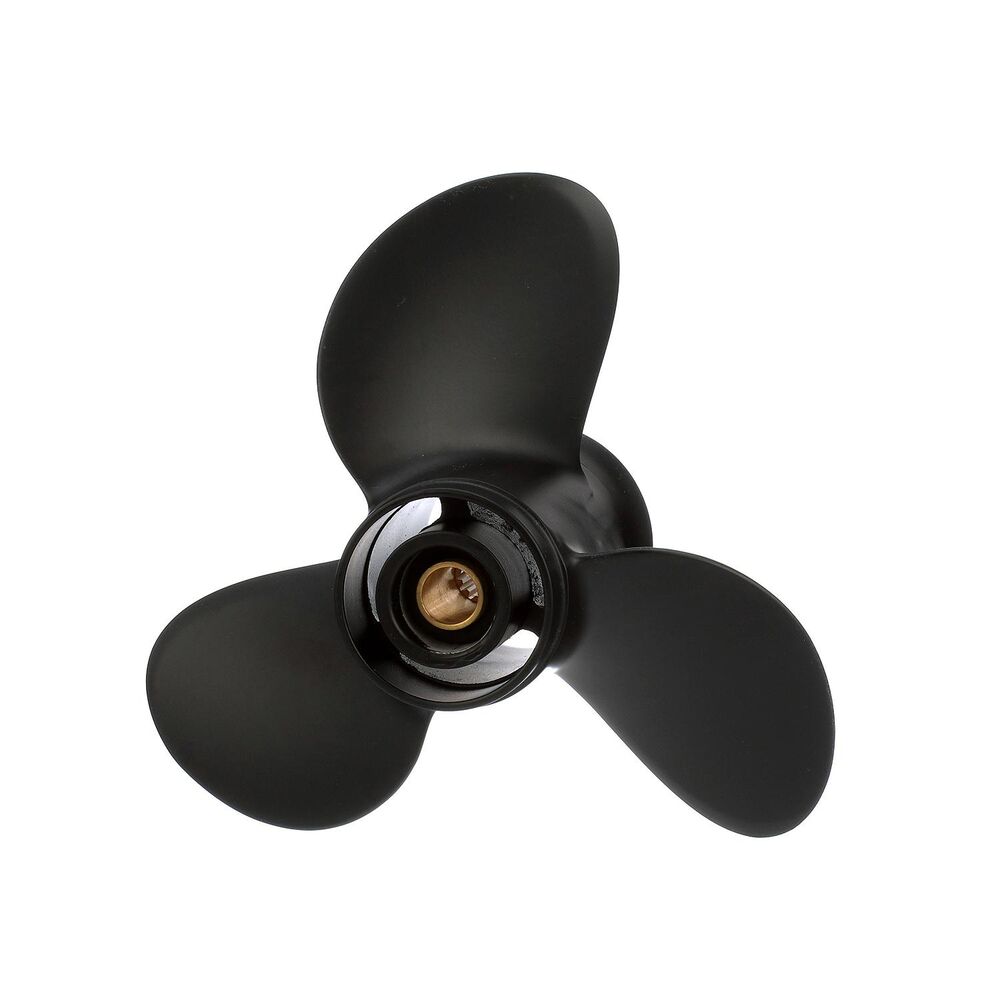

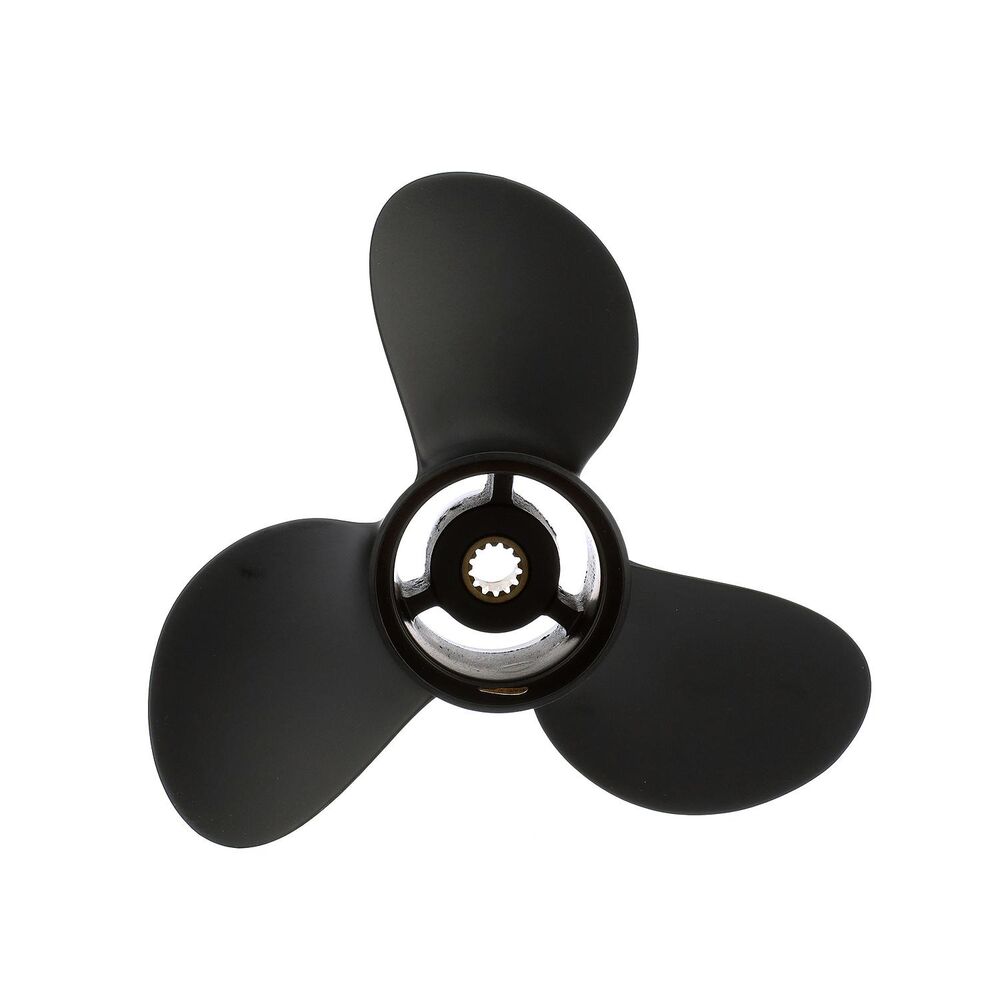

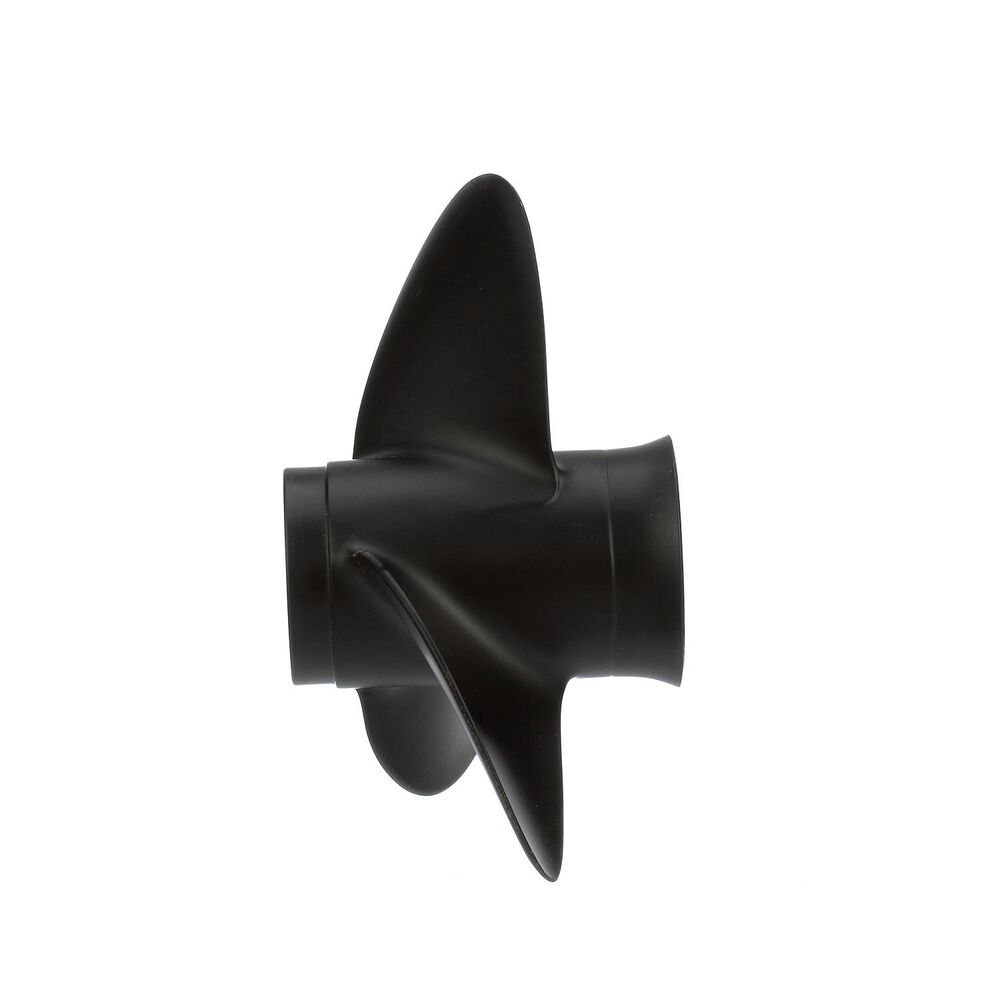

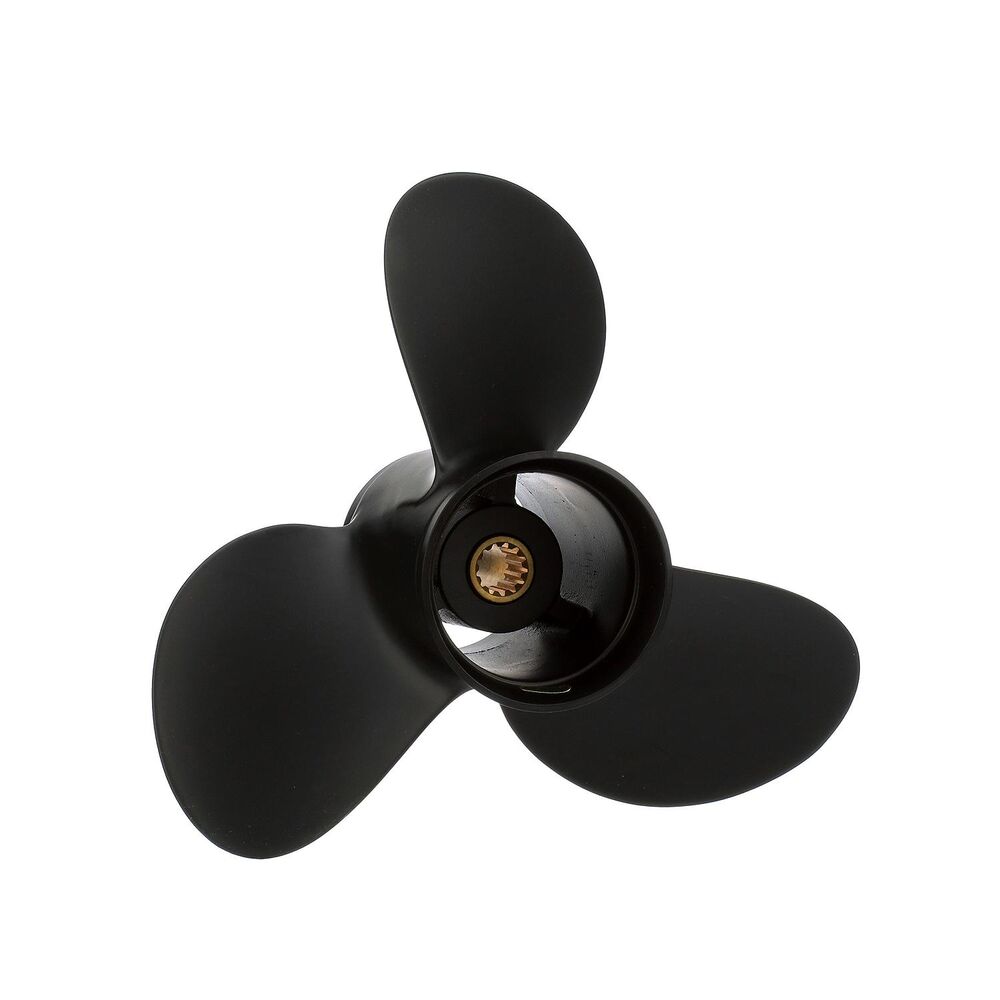

Quicksilver Black Diamond 9.25 x 10 RH Propeller (QA3168R)
This 3-blade aluminum propeller combines a 9.25-inch diameter, 10-inch pitch and right-hand rotation for compatible outboards.
Key Features
- 3-blade aluminum construction
- Protective black finish
- Pressed-in rubber hub included
- 13-tooth spline application
Applications
For Evinrude/Johnson 9.9 and 15 HP two-strokes (1974-2000), and 8, 9.9 and 15 HP four-strokes (2000-2001), with a 13-tooth propeller shaft.
Fitment / Product Details
- Brand: Quicksilver
- Series: Black Diamond
- Part Number: QA3168R
- Material: Aluminum
- Blades: 3
- Diameter: 9.25 inches
- Pitch: 10 inches

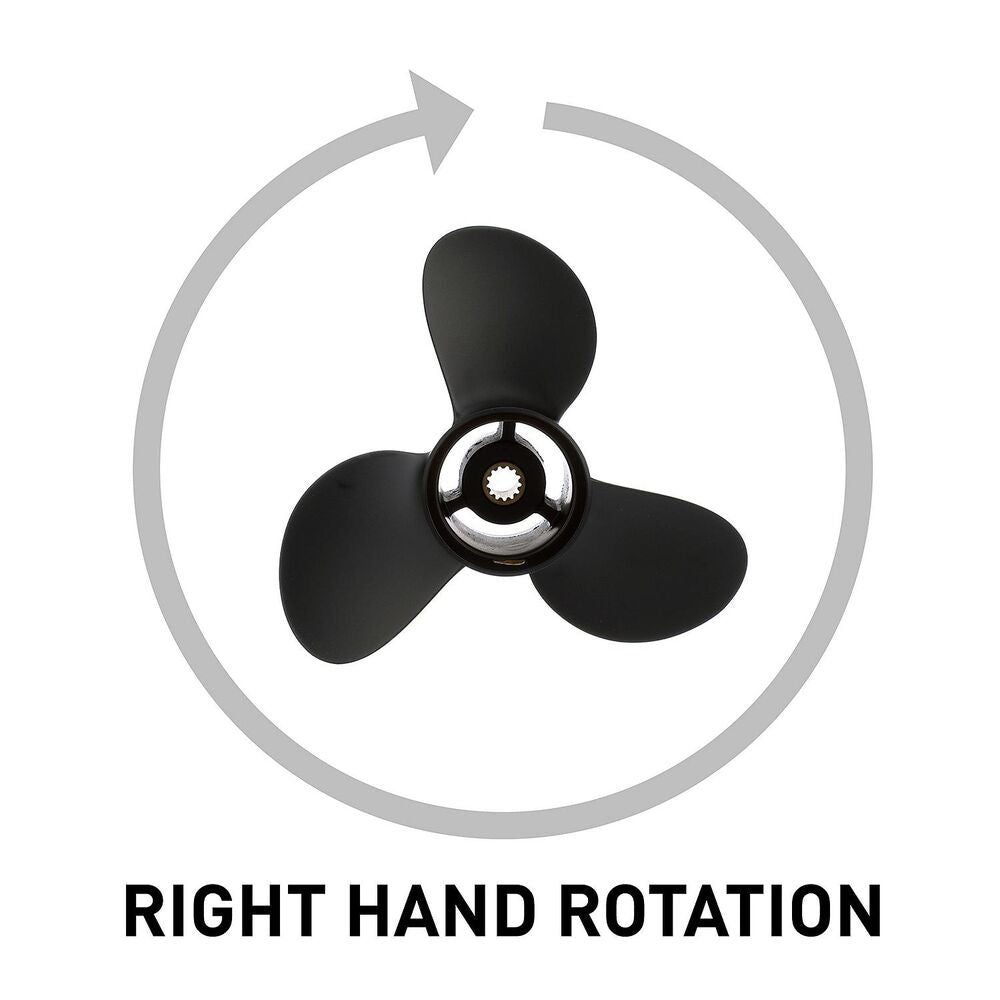

- Rotation: Right-hand (RH)
- Splines: 13
- Hub: Pressed-in rubber hub included
- Condition: New
- UPC: 745061045002
What's Included
One Quicksilver QA3168R Black Diamond aluminum propeller. The pressed-in rubber hub is included; confirm the required attaching hardware for your engine.
Service Notes
Inspect the propeller shaft and hardware before installation. Follow the engine manufacturer's instructions for hardware selection, lubrication and tightening torque. Choose pitch using your normal boat load and the recommended full-throttle RPM range.
Why You Should Buy
Aluminum construction and a protective black finish make the Black Diamond a practical replacement or spare. This size serves compatible installations requiring 10-inch pitch.
Common Applications
Replacement or spare propeller for compatible outboards. Match the diameter, pitch, rotation, spline count and gearcase before ordering.
FAQ
What does 9.25 x 10 RH mean?
Diameter is 9.25 inches, pitch is 10 inches, and rotation is right-hand.
Is the hub included?
Pressed-in rubber hub included.
How do I confirm fitment?
Match the exact engine model, year, gearcase, spline count and required hardware to the manufacturer chart. Horsepower alone is insufficient.
How do I select pitch?
Use your current propeller and operating RPM with the engine manufacturer's recommended range under your normal load.
