Description
Quicksilver Black Diamond 14 x 13 RH Propeller (QA2832X)

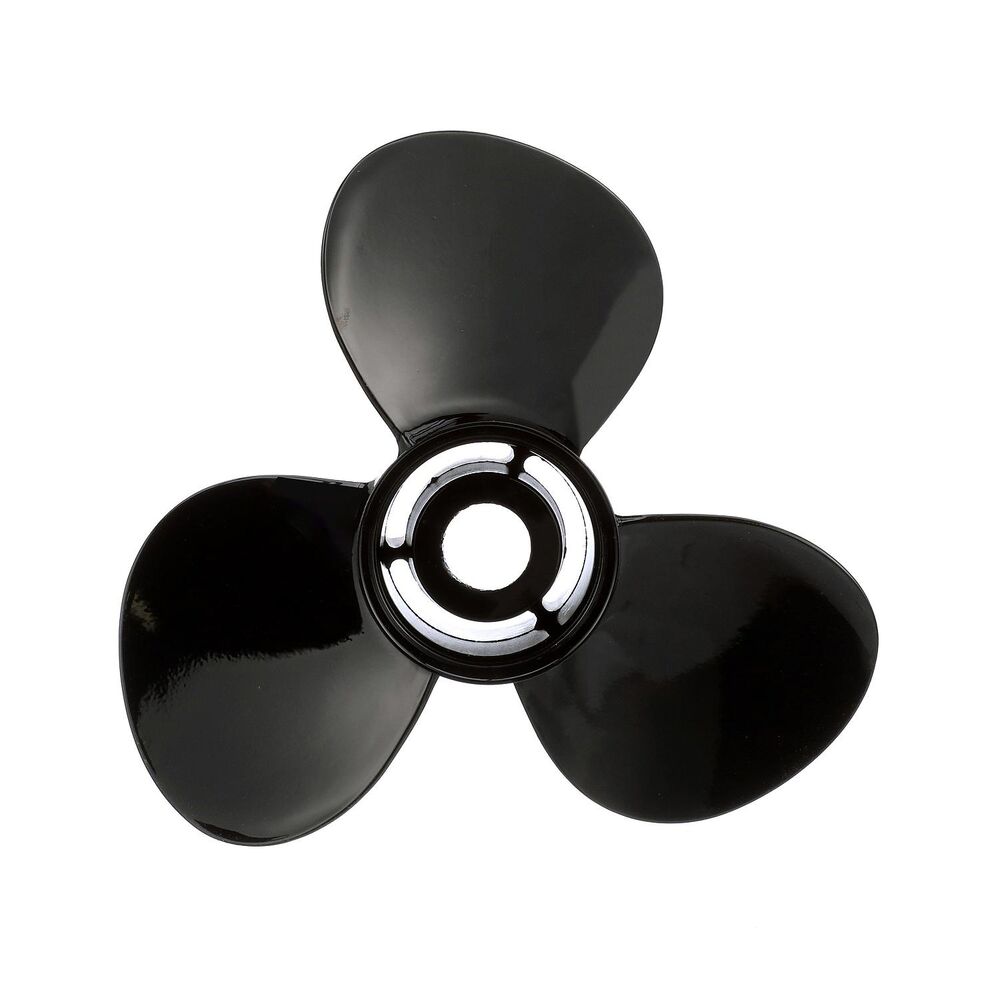

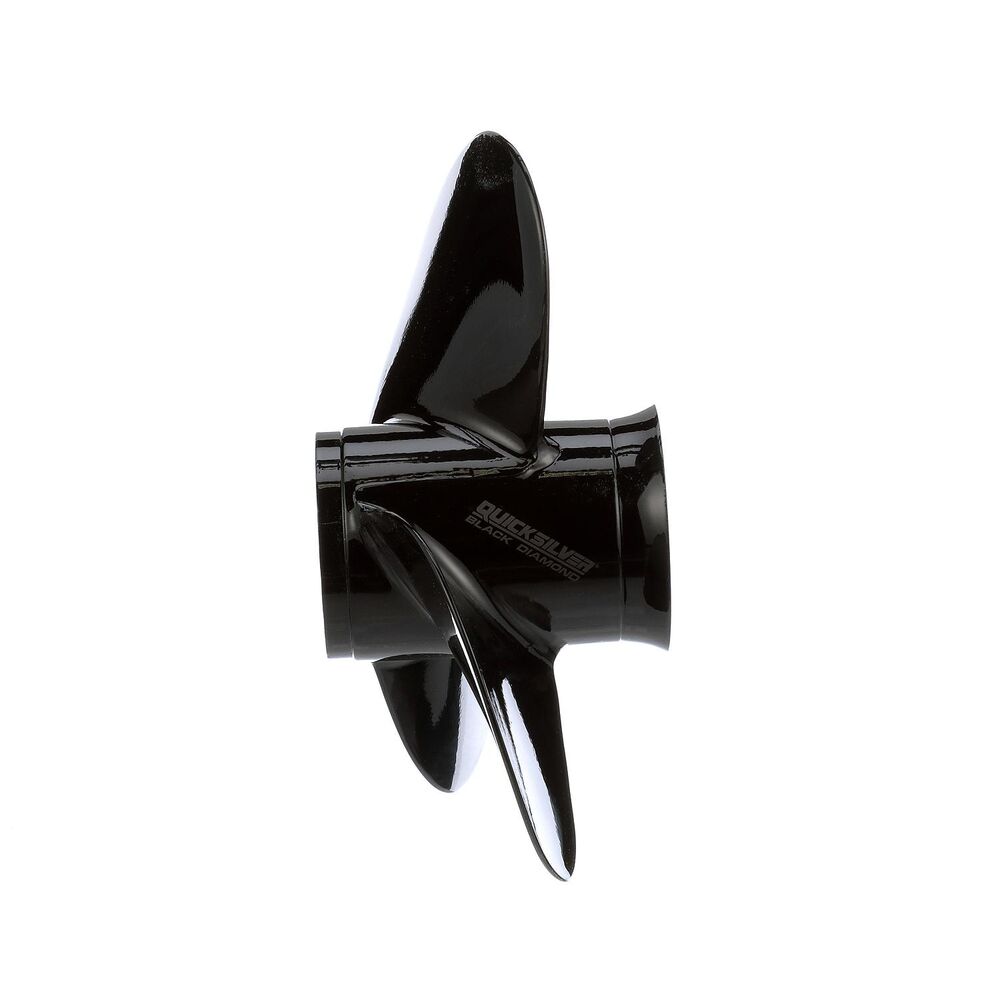

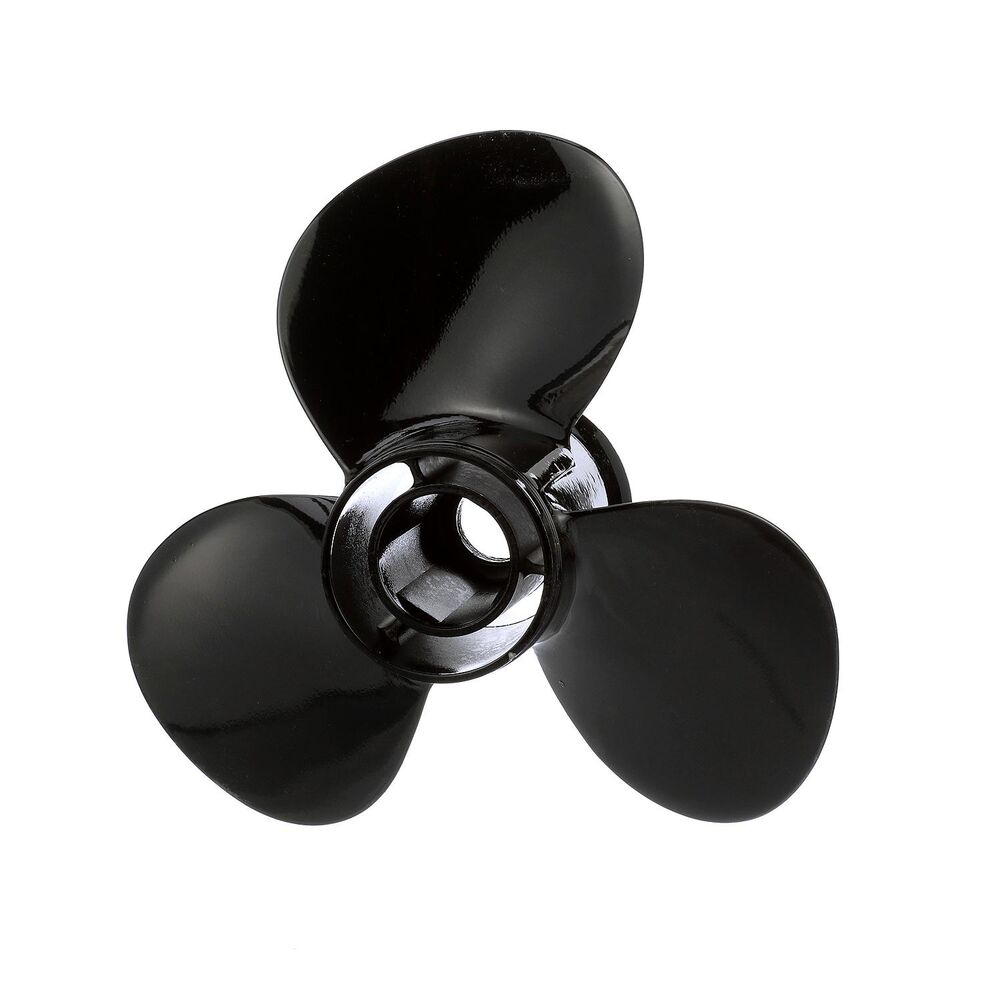

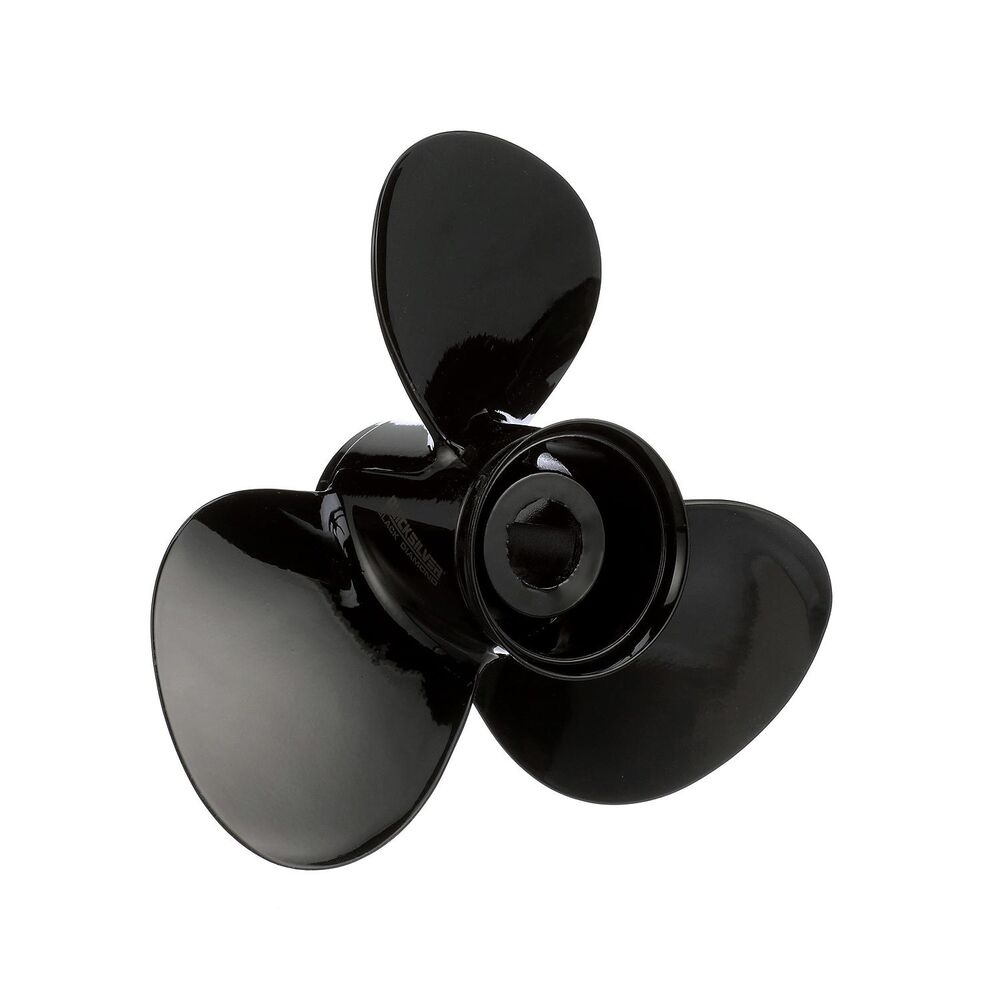

This 3-blade aluminum propeller combines a 14-inch diameter, 13-inch pitch and right-hand rotation for pontoon boats.
Key Features
- 3-blade aluminum construction
- Protective black finish
- Separate engine-specific Flo-Torq hub kit required; sold separately
- 15-tooth spline application
- Extra cup for pontoon applications
Applications
Extra-cup pontoon version for specified 15-spline outboards using the engine-specific hub kit. Mercury/Mariner: 40-60 HP CT/BigFoot and chart-listed 70-140 HP standard gearcase applications; standard-gearcase 40-60 HP engines do not fit. Honda: BFP60 large gearcase and chart-listed 75, 90, 115 and 130 HP engines. Suzuki: DF70-100 (2009 and newer) and DF115-140 (2002 and newer) four-strokes with 15 splines. Nissan/Tohatsu: 70C (1996 and newer), 90 (1987 and newer), 115 (1992 and newer), and 120/140 HP (1988 and newer). Yamaha: chart-listed T50/T60 and 60-130 HP 15-spline applications; exclude standard 50 HP and other 13-spline gearcases. Force: 75 HP (1999 and newer) and 90/120/150 HP (1995 and newer). Confirm the exact model, year and gearcase against the Quicksilver application chart and hub-selection grid.
Fitment / Product Details
- Brand: Quicksilver
- Series: Black Diamond
- Part Number: QA2832X
- Material: Aluminum
- Blades: 3
- Diameter: 14 inches
- Pitch: 13 inches

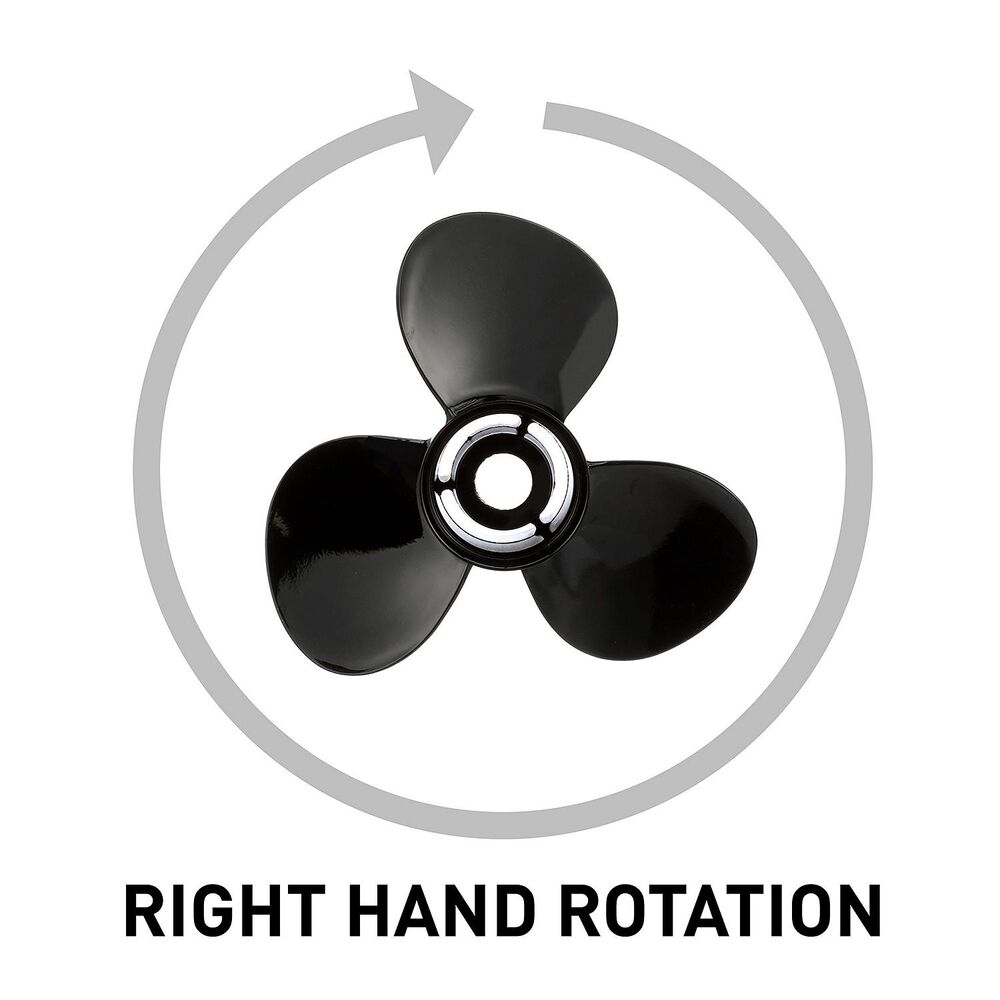

- Rotation: Right-hand (RH)
- Splines: 15
- Hub: Separate engine-specific Flo-Torq hub kit required; sold separately
- Condition: New
- UPC: 745061733237
What's Included
One Quicksilver QA2832X Black Diamond aluminum propeller. Hub kit and attaching hardware are purchased separately for the exact engine.
Service Notes
Inspect the propeller shaft and hardware before installation. Follow the engine manufacturer's instructions for hardware selection, lubrication and tightening torque. Choose pitch using your normal boat load and the recommended full-throttle RPM range.
Why You Should Buy
Aluminum construction and a protective black finish make the Black Diamond a practical replacement or spare. This extra-cup version is designed for pontoon applications.
Common Applications
Replacement or spare for compatible pontoon outboards. Match the diameter, pitch, rotation, spline count and gearcase before ordering.
FAQ
What does 14 x 13 RH mean?
Diameter is 14 inches, pitch is 13 inches, and rotation is right-hand.
Is the hub included?
Separate engine-specific Flo-Torq hub kit required; sold separately.
How do I confirm fitment?
Match the exact engine model, year, gearcase, spline count and required hardware to the manufacturer chart. Horsepower alone is insufficient.
How do I select pitch?
Use your current propeller and operating RPM with the engine manufacturer's recommended range under your normal load.
