Description

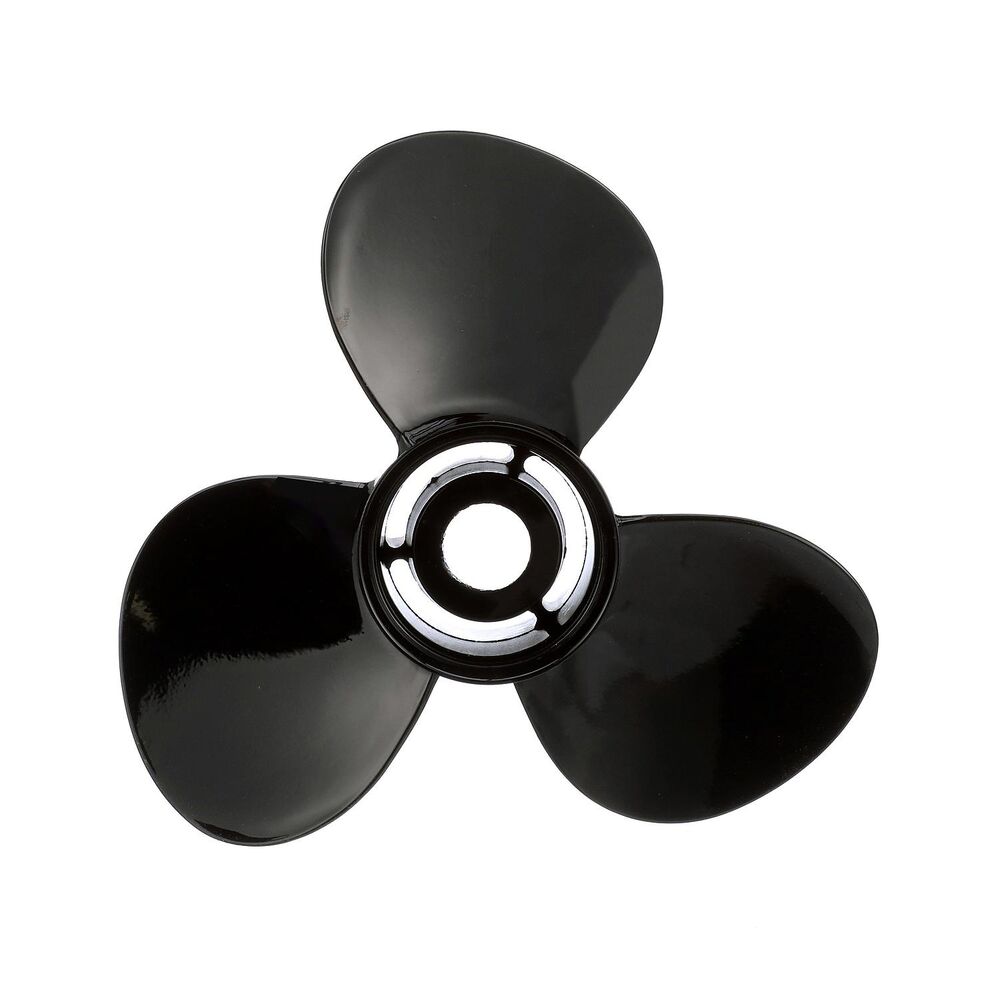

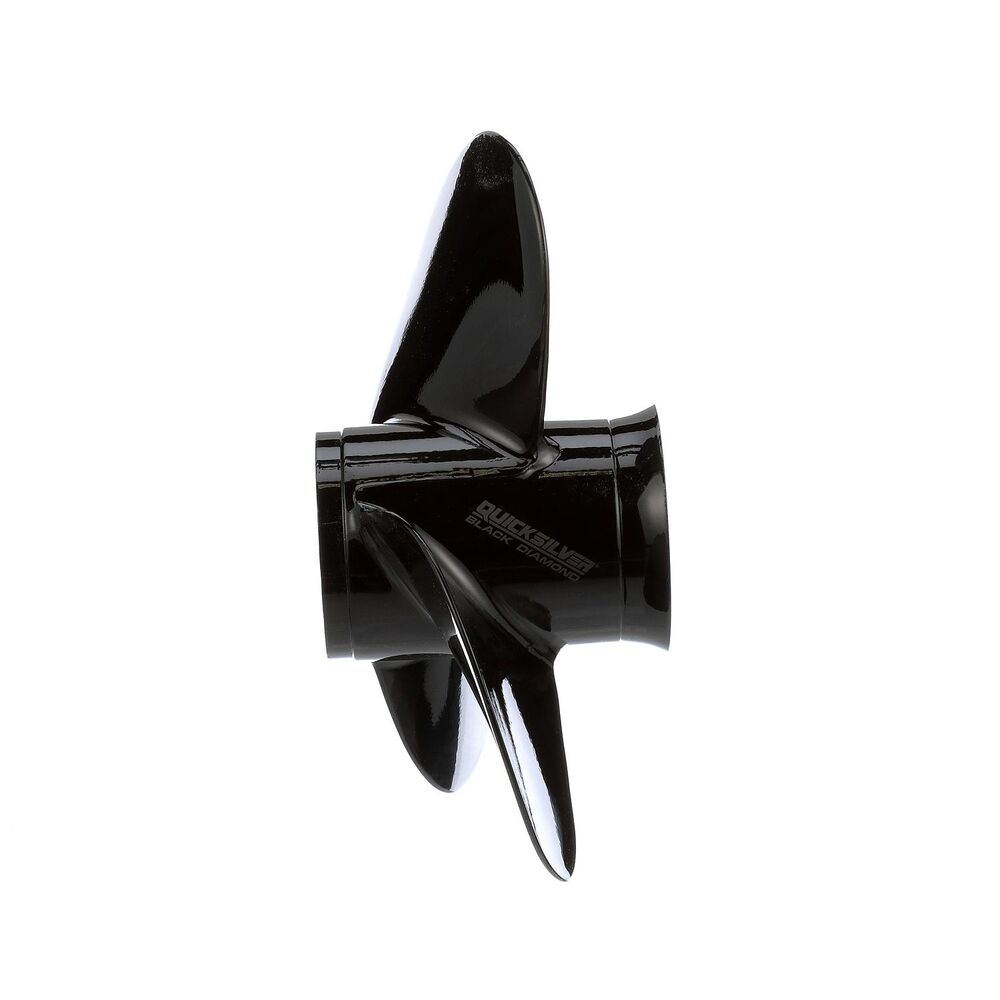

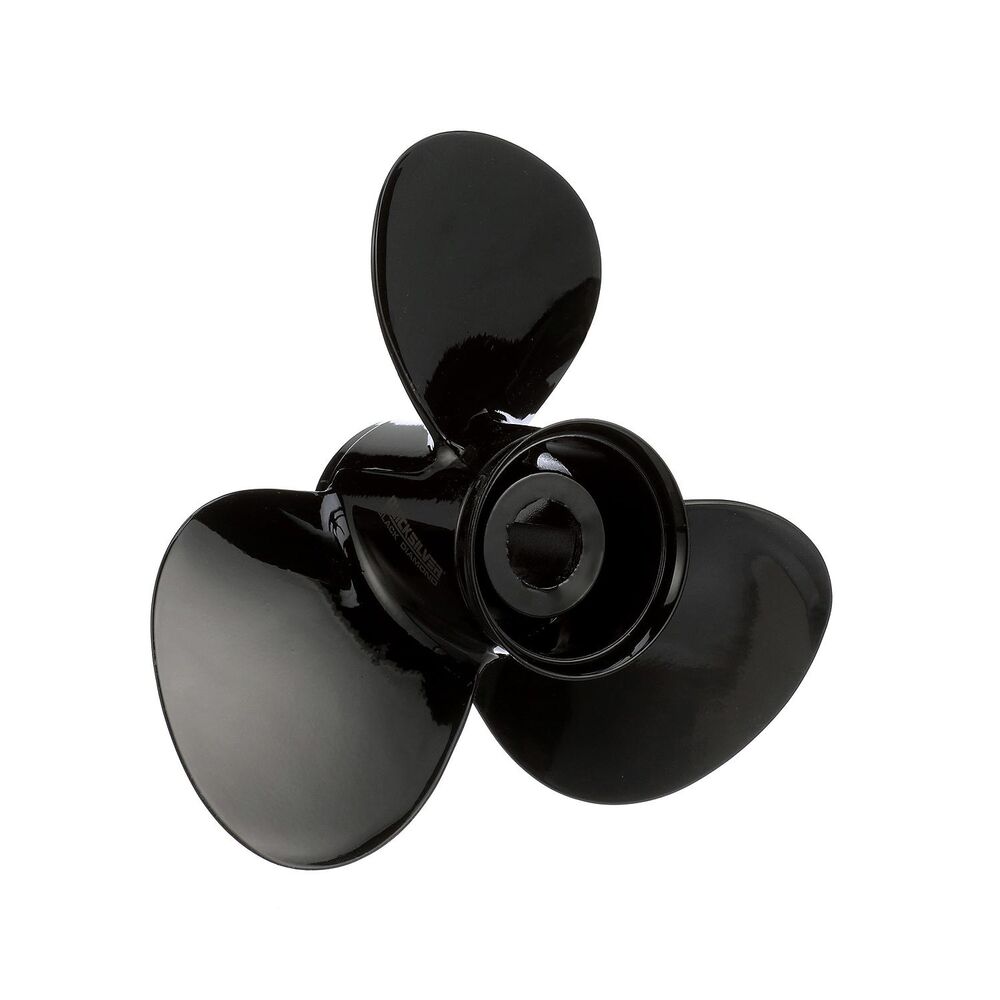

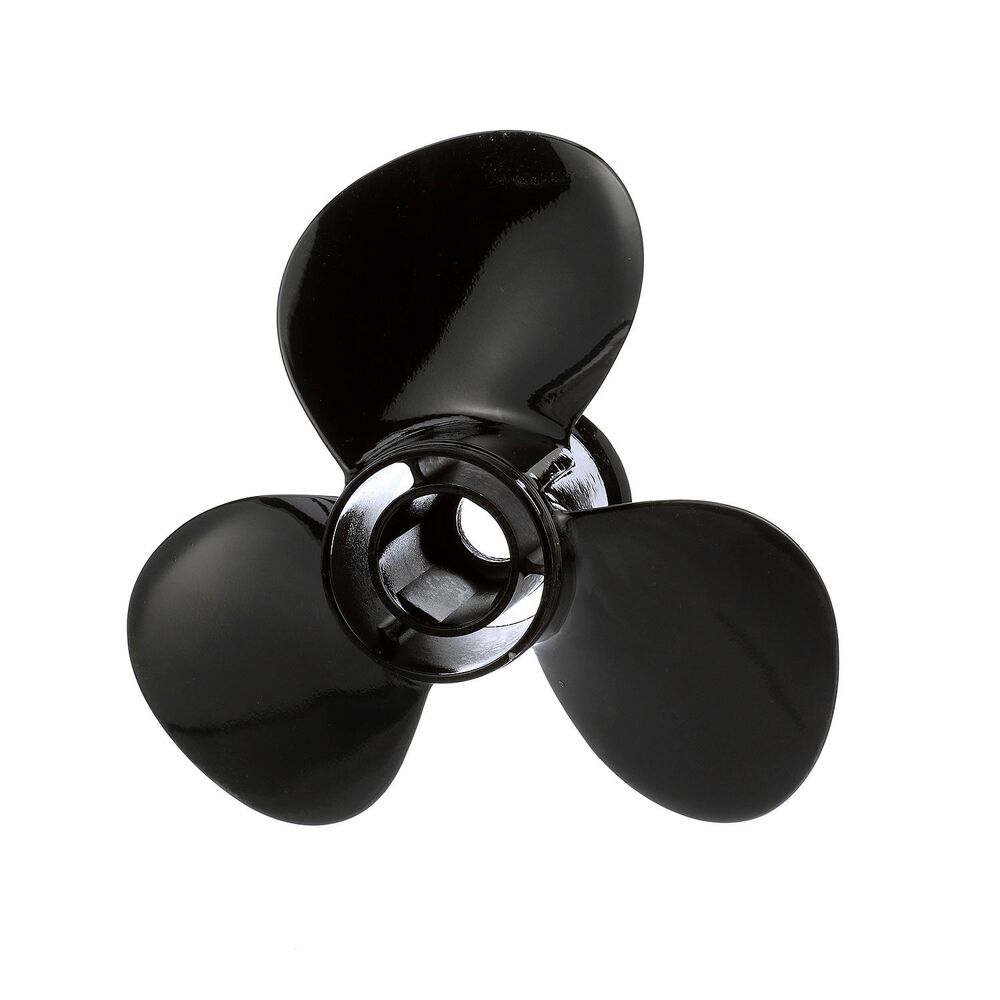

Quicksilver Black Diamond 14 x 11 RH Propeller (QA2830X)
This three-blade aluminum propeller pairs a 14-inch diameter with 11-inch pitch and right-hand rotation for compatible outboards. The extra-cup design is listed for pontoon applications.
Key Features
- Three-blade aluminum construction
- Protective black finish
- Engine-specific Flo-Torq hub kit sold separately
- 15-tooth spline application
- Extra-cup pontoon version
Applications
Extra-cup pontoon version for specified 15-spline outboards using the engine-specific hub kit. Mercury/Mariner: 40-60 HP CT/BigFoot and chart-listed 70-140 HP standard gearcase applications; standard-gearcase 40-60 HP engines do not fit. Honda: BFP60 large gearcase and chart-listed 75, 90, 115 and 130 HP engines. Suzuki: DF70-100 (2009 and newer) and DF115-140 (2002 and newer) four-strokes with 15 splines. Nissan/Tohatsu: 70C (1996 and newer), 90 (1987 and newer), 115 (1992 and newer), and 120/140 HP (1988 and newer). Yamaha: chart-listed T50/T60 and 60-130 HP 15-spline applications; exclude standard 50 HP and other 13-spline gearcases. Force: 75 HP (1999 and newer) and 90/120/150 HP (1995 and newer). Confirm the exact model, year and gearcase against the Quicksilver application chart and hub-selection grid.
Fitment / Product Details
- Brand: Quicksilver
- Series: Black Diamond
- Part Number: QA2830X
- Material: Aluminum
- Blades: 3
- Diameter: 14 inches
- Pitch: 11 inches

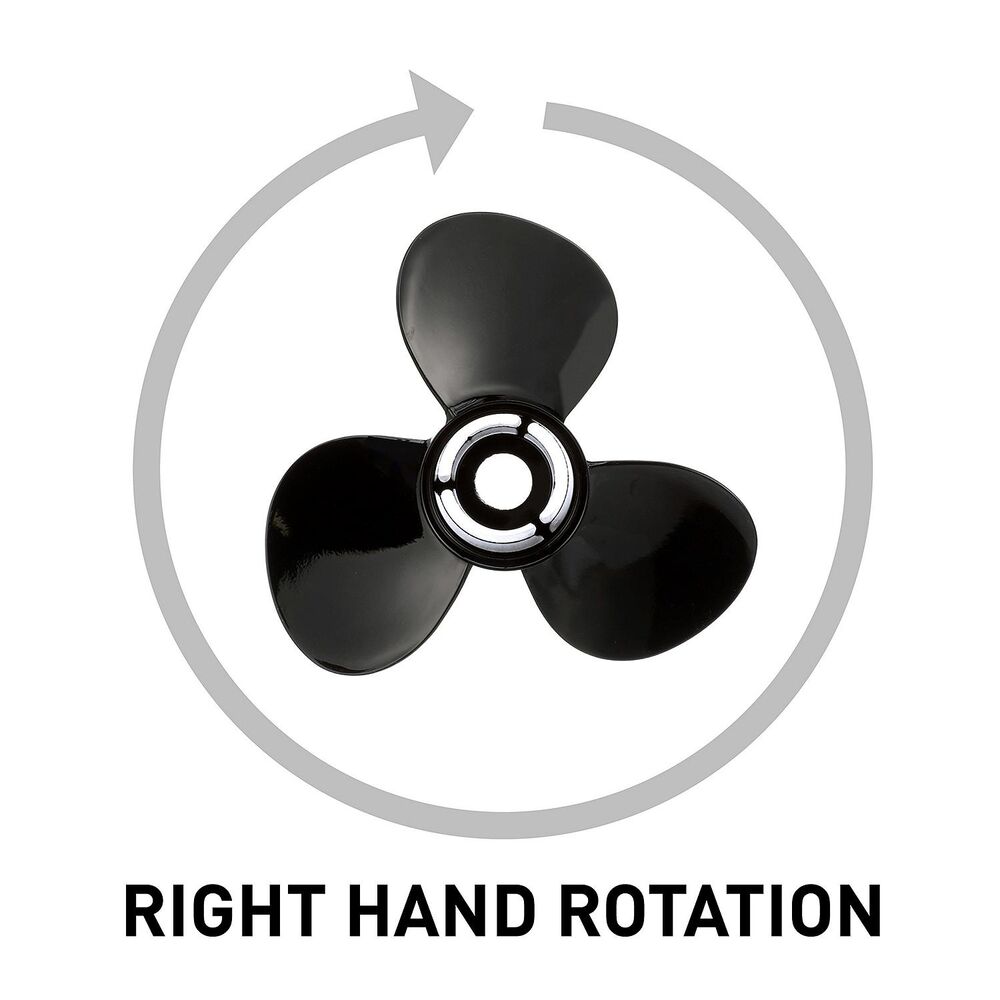

- Rotation: Right-hand (RH)
- Splines: 15
- Hub: Engine-specific Flo-Torq hub kit sold separately
- Condition: New
- UPC: 745061733220
What's Included
One Quicksilver QA2830X Black Diamond aluminum propeller. The engine-specific hub kit and attaching hardware must be selected separately using the Quicksilver hub chart.
Service Notes
Inspect the propeller shaft and hardware before installation. Follow the engine manufacturer's instructions for hardware selection, lubrication and tightening torque. Choose pitch using your normal boat load and the engine's recommended full-throttle RPM range.
Why You Should Buy
The aluminum construction and protective black finish make this a practical replacement or spare for a compatible engine. The extra-cup design suits chart-listed pontoon applications.
Common Applications
Replacement propeller for compatible pontoon installations. Match diameter, pitch, rotation, spline count and gearcase before ordering.
FAQ
What does 14 x 11 RH mean?
Diameter is 14 inches, pitch is 11 inches, and rotation is right-hand.
Is the hub included?
Engine-specific Flo-Torq hub kit sold separately.
How do I confirm fitment?
Match your exact engine model, year, gearcase, spline count and hardware to the Quicksilver application chart. Horsepower alone is insufficient.
How do I select pitch?
Use your current propeller and operating RPM with the engine manufacturer's recommended range under your normal load.
