Description
Quicksilver Black Diamond 14 x 9 RH Propeller (QA2026X)

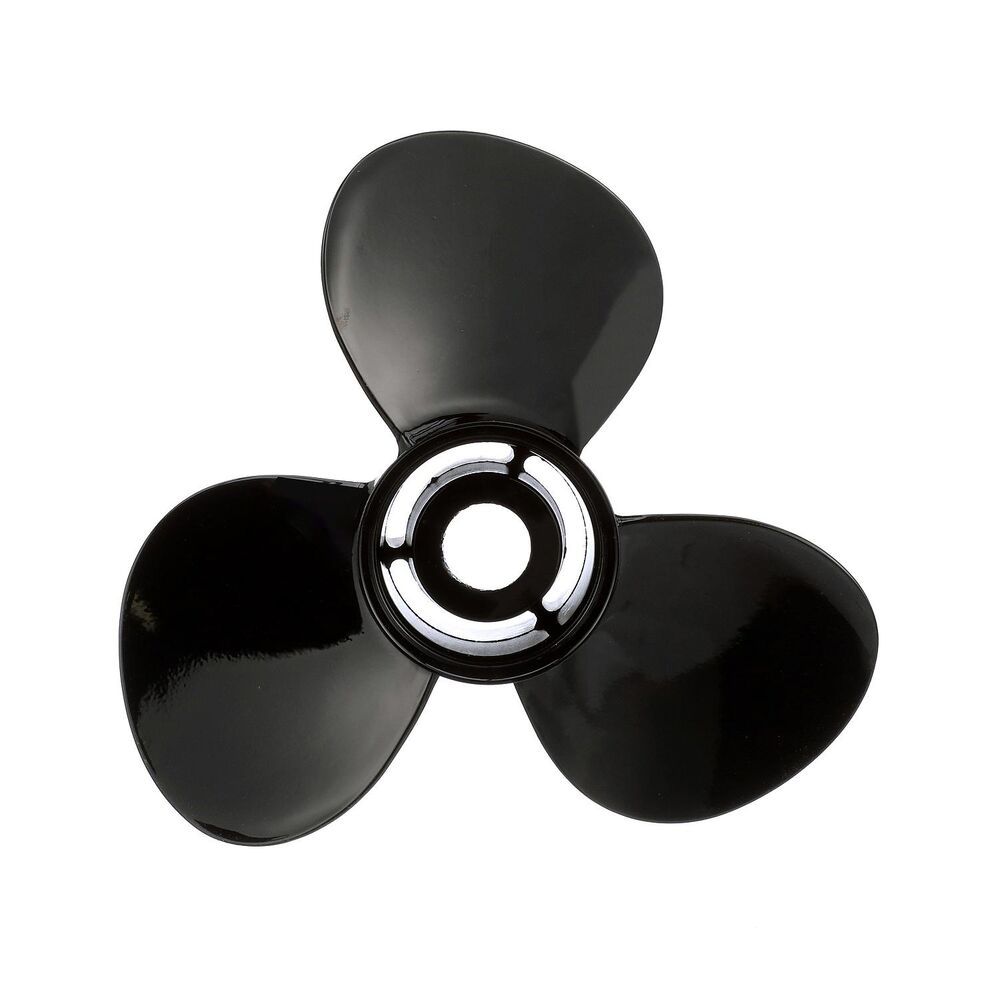

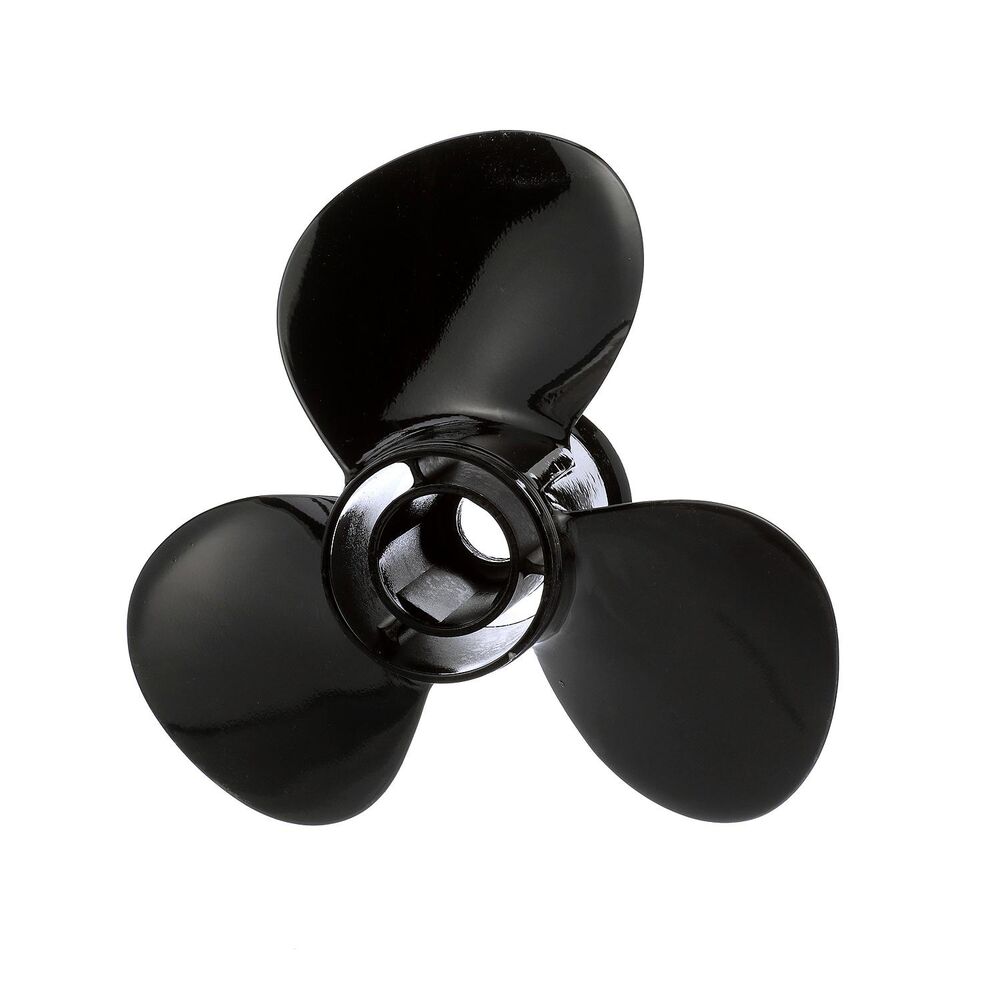

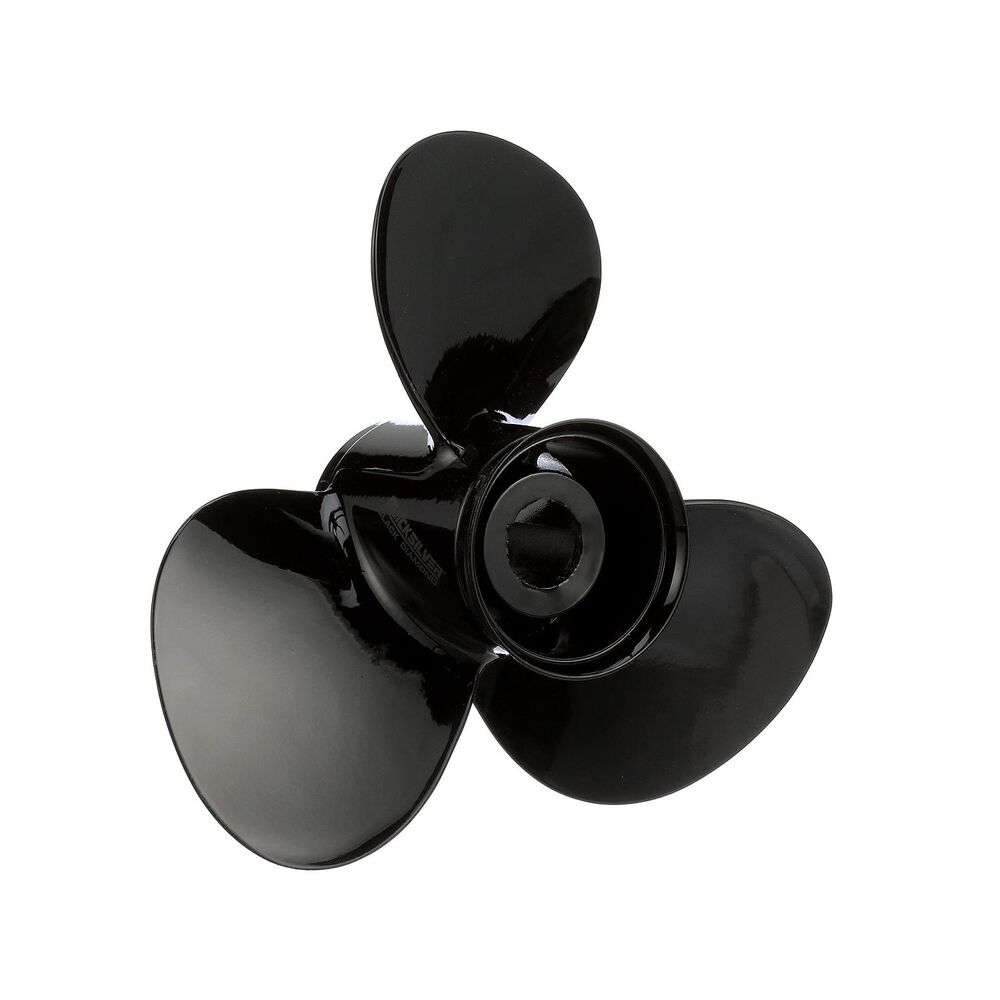

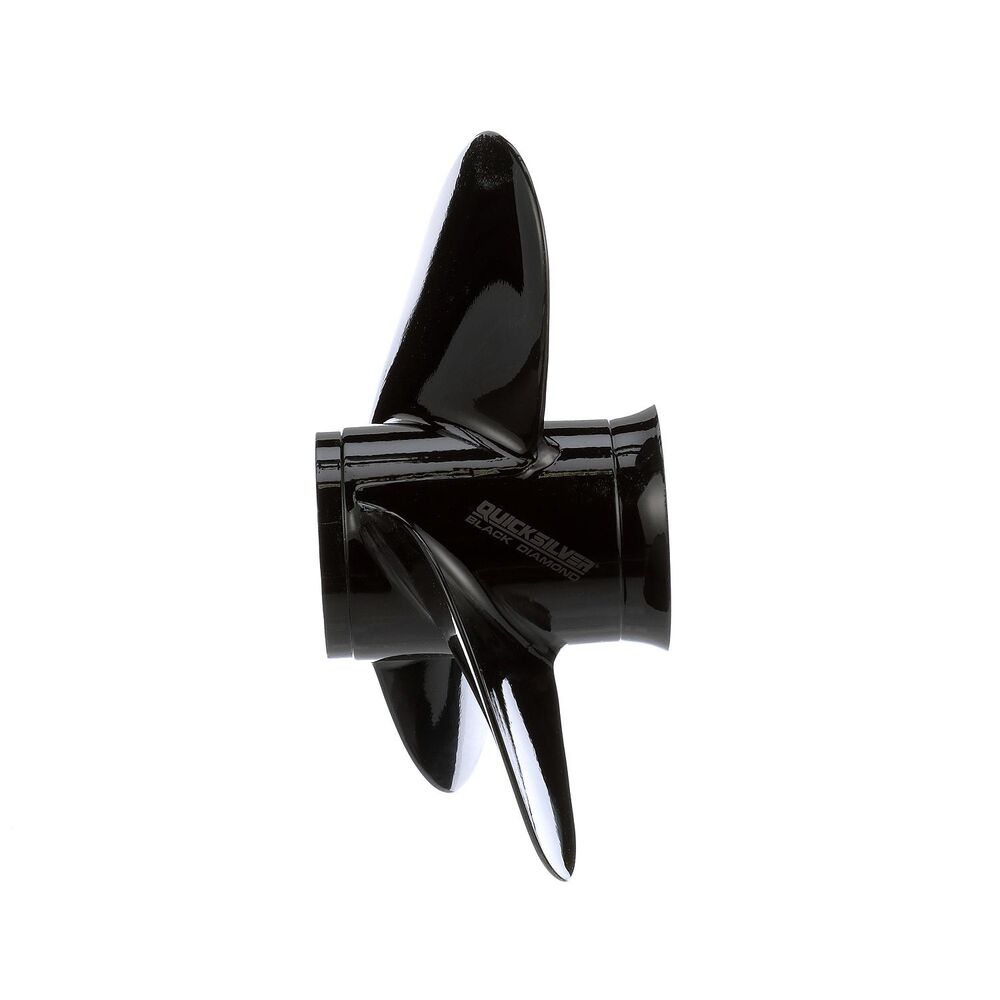

This 3-blade aluminum propeller has a diameter of 14 inches, a pitch of 9 inches and right-hand rotation for the manufacturer-listed applications below.
Key Features
- Three-blade aluminum construction
- Protective black finish
- Right-hand rotation
- 15-spline application with the correct separate hub kit
- For verified 40-60 HP CT and larger chart-listed gearcases
Applications
Compatible workboats, houseboats and loaded boats that need the chart-listed low-pitch propeller.
Fitment / Product Details
- Mercury/Mariner: 40-60 HP CT/BigFoot gearcases; standard 70 HP (1987-1989), 75 HP (1984 and newer), 80 HP (1978-1989), 90 HP (1978 and newer), 100 HP (1988-1999), 115 HP (1978 and newer), 125 HP (1994 and newer) and 140 HP (1978-1981), plus chart-listed SeaPro/Marathon and legacy models. Requires a separate hub: 835257Q1 for chart-listed carbureted two-strokes or 8M0150152 for chart-listed four-stroke/OptiMax applications. Verify the 15-spline shaft and gearcase.
- Honda: BF60 BFP large gearcase, 75/90 HP (1995 and newer), and 115/130 HP (1998 and newer). Requires separate hub kit 835277Q1 for chart-listed 75/90 HP through 1998, or 835279Q2 for 1999 and newer 75/90 HP and listed 115/130 HP applications.
- Suzuki: 15-spline DF70-100 (2009 and newer) and DF115-140 (2002 and newer). Chart kit references include 835283Q1, 835283Q2 and 835283Q03; select by exact model and year.
- Nissan/Tohatsu: 70C (1996 and newer), 90 HP (1987 and newer), 115 HP (1992 and newer), and 120/140 HP (1988 and newer). Requires separate hub kit 835284Q1.
- Yamaha: T50 (1996 and newer), 60 HP (1992 and newer), T60 (2003 and newer), 70 HP (1984 and newer), 75 HP (1994-2000), F75 (2003 and newer), chart-listed 80/F80, 85 HP (1991-1997), 90 HP (1984 and newer), F90 (2003 and newer), F100 (2000 and newer), 115 HP (1984 and newer), F115 (2000 and newer), and 130 HP (1984 and newer). Requires separate kit 835272Q1 for 50-100 HP or 835271Q2 for 115/130 HP.
- Force: 75 HP (1999 and newer), 90/120/150 HP (1995 and newer). Requires separate Flo-Torq II kit 835257Q1.
- Brand: Quicksilver
- Series: Black Diamond
- Part Number: QA2026X
- Material: Aluminum
- Blades: 3
- Diameter: 14 inches
- Pitch: 9 inches

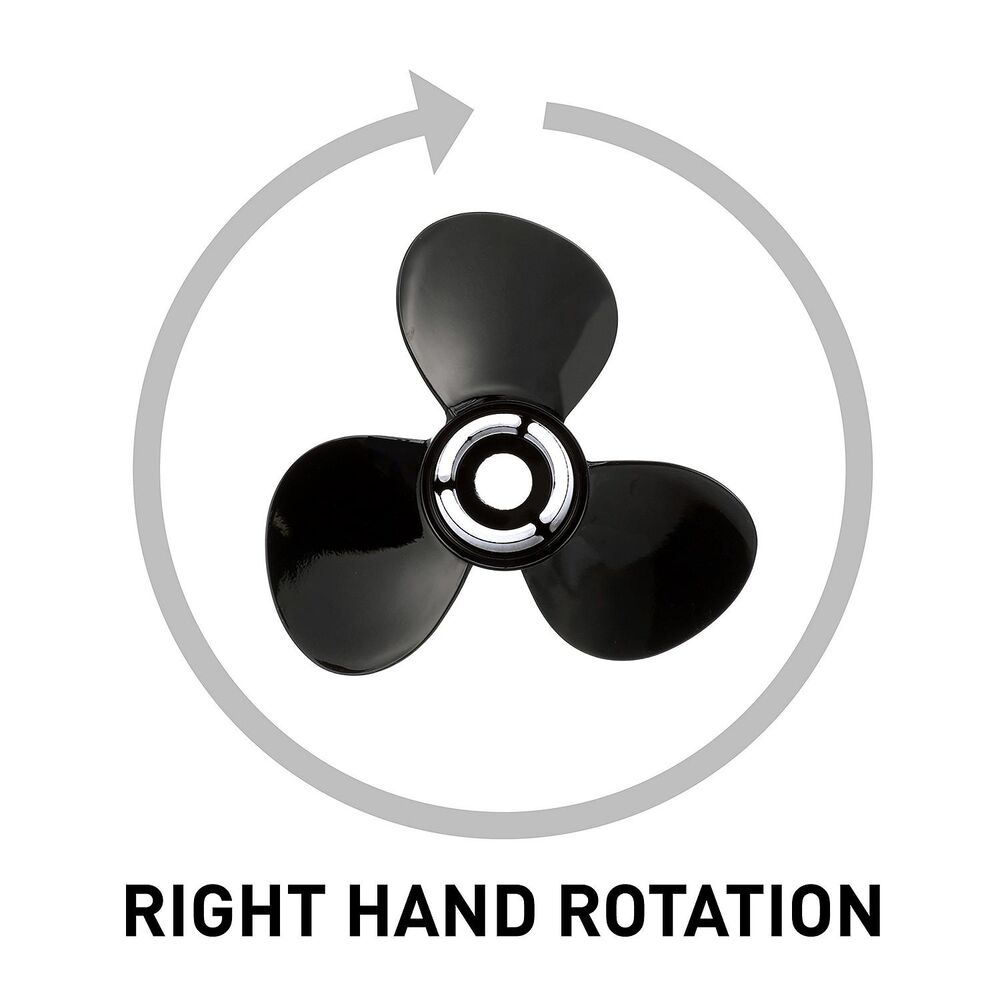

- Rotation: Right-hand (RH)
- Hub: Compatible engine-specific hub kit required; sold separately
- Condition: New
- UPC: 745061487567
- Spline Application: 15
What's Included
One Quicksilver QA2026X Black Diamond aluminum propeller. Compatible engine-specific hub kit required; sold separately. This Quicksilver SKU does not include a separate hub kit. Select the Flo-Torq system and attaching hardware for the exact engine and year. Horsepower alone does not establish compatibility.
Service Notes
Inspect the shaft and hardware before installation. Follow the engine manufacturer's instructions for lubrication, hardware selection and tightening torque. Select pitch to keep full-throttle RPM within the engine's specified range under your normal load. This Quicksilver SKU does not include a separate hub kit. Select the Flo-Torq system and attaching hardware for the exact engine and year. Horsepower alone does not establish compatibility.
Why You Should Buy
Aluminum construction and a protective black finish make this a practical replacement or spare for a compatible installation.
Common Applications
Compatible workboats, houseboats and loaded boats that need the chart-listed low-pitch propeller. Match diameter, pitch, rotation, shaft, gearcase and attaching hardware before ordering.
FAQ
What does 14 x 9 RH mean?
Diameter is 14 inches, pitch is 9 inches, and rotation is right-hand.
Is a hub included?
Compatible engine-specific hub kit required; sold separately. This Quicksilver SKU does not include a separate hub kit. Select the Flo-Torq system and attaching hardware for the exact engine and year. Horsepower alone does not establish compatibility.
How do I confirm fitment?
Match the exact engine/drive model, year, shaft and gearcase to the manufacturer application chart. The total horsepower range covers several applications; it does not mean every engine in that range fits.
How should I choose pitch?
Use your current propeller and measured full-throttle RPM with the engine manufacturer's recommended range under normal boat load.
