Description

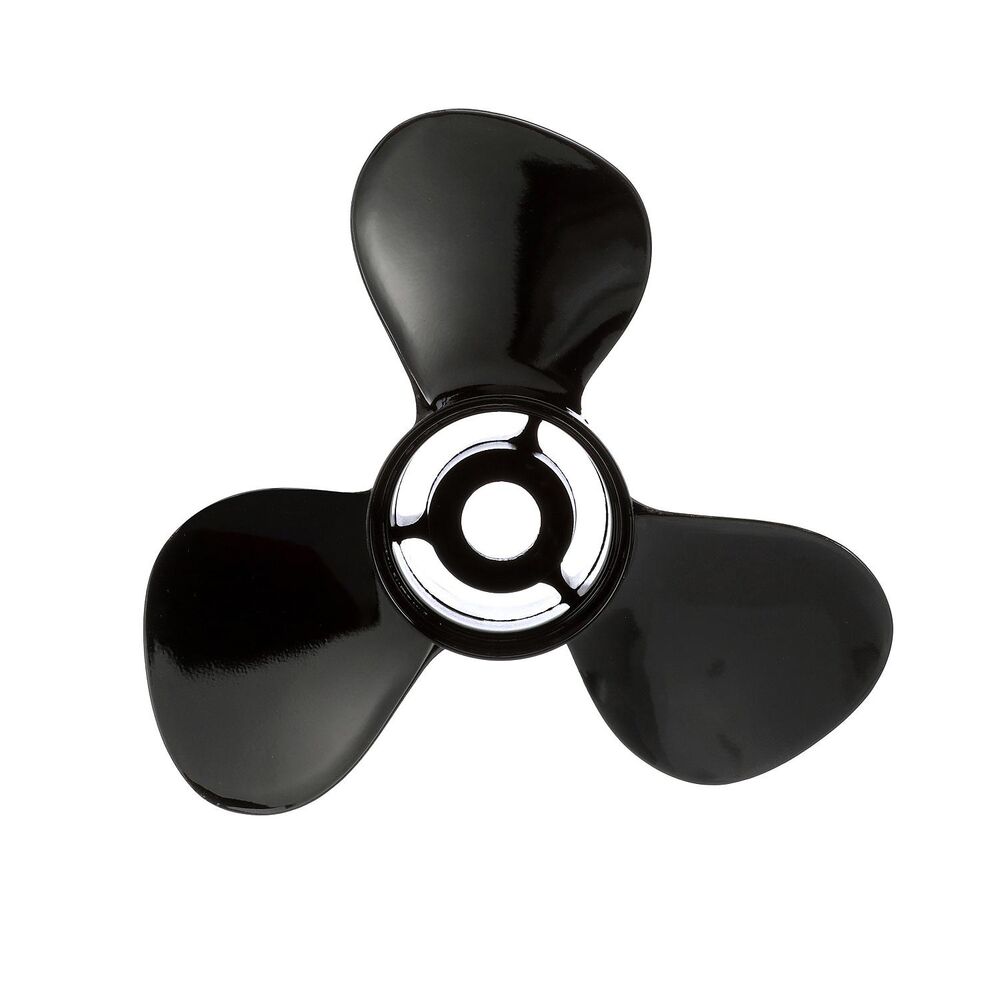

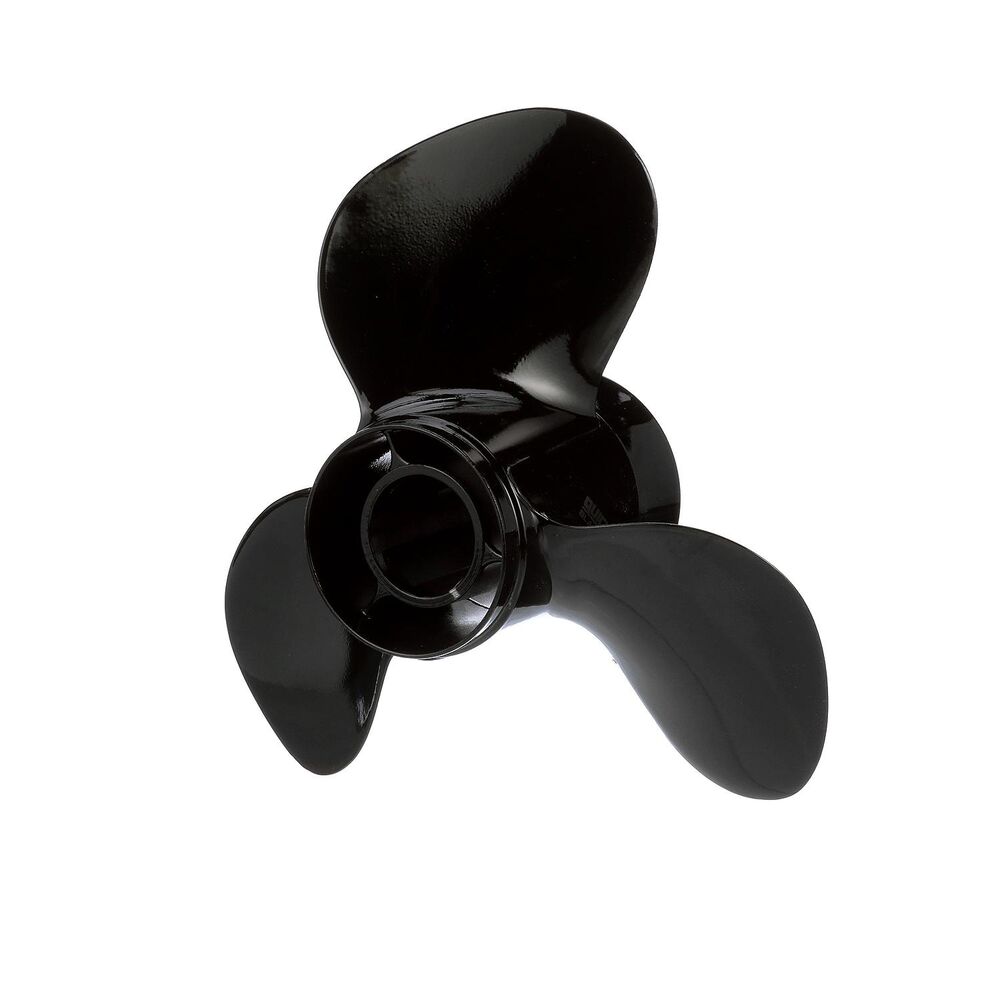

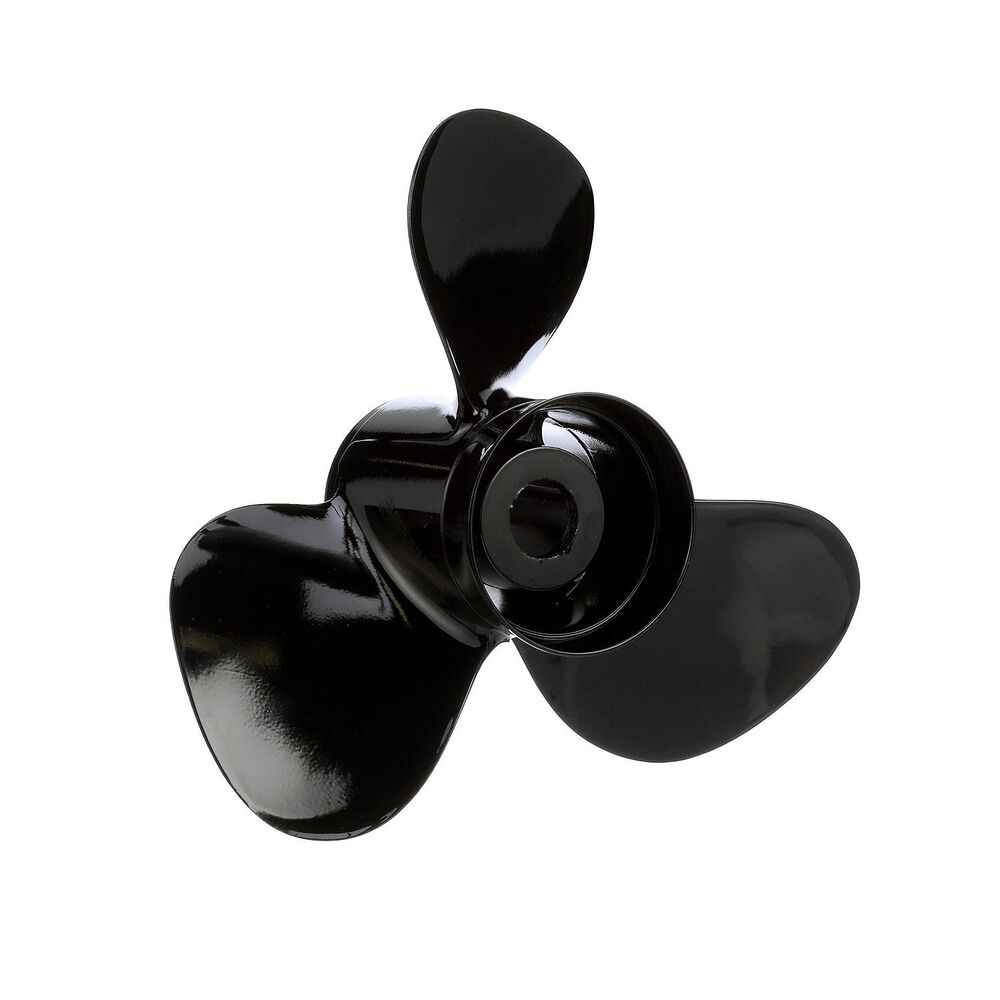

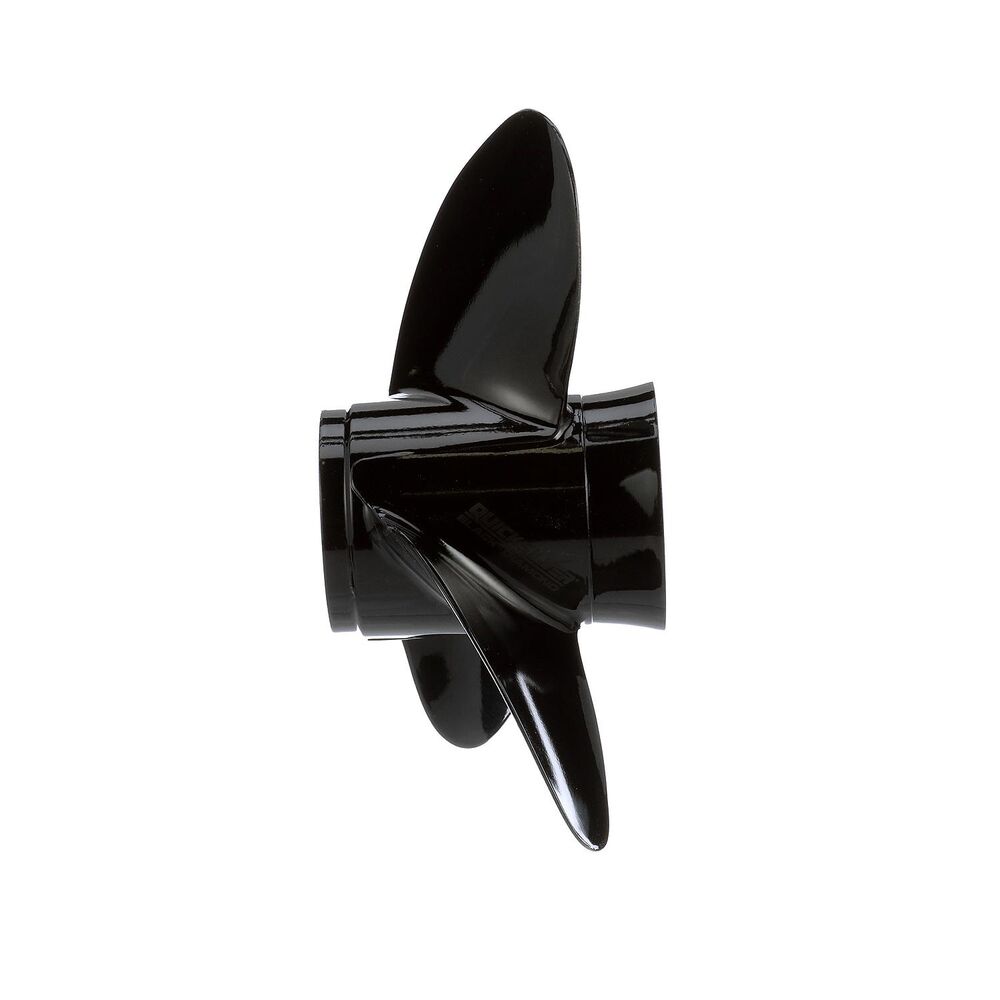

Quicksilver Black Diamond 16 x 16 RH Propeller (QA2010X)
This 3-blade aluminum propeller has a diameter of 16 inches, a pitch of 16 inches and right-hand rotation for the manufacturer-listed applications below.
Key Features
- Three-blade aluminum construction
- Protective black finish
- Right-hand rotation
- For verified large-gearcase outboard and single-prop sterndrive applications
- Separate engine-specific hub kit required
Applications
Compatible cruisers, loaded recreational boats and replacement/spare single-prop installations.
Fitment / Product Details
- Mercury/Mariner: 90/115 HP Command Thrust (2014 and newer), 135 HP (1987 and newer), 150/175/200 HP (1978 and newer), 220 HP (1987-1988), 225 HP (1980 and newer), and chart-listed 250-400 HP engines. Use the specified separate hub: 835257Q1 for listed 15-spline applications or 8M0101603 for FourStroke V8 and 350-400 HP Verado 19-spline applications. Verify the exact gearcase and clearance.
- Honda: chart-listed 115D and 135/150 HP (2004 and newer), plus 200-250 HP four-strokes (2002 and newer). Requires separate hub kit 835278Q1.
- Yamaha outboards: chart-listed 150-300 HP two-stroke and four-stroke applications, including specified SHO/HPDI/VMAX models. Model and year restrictions apply; select the correct separate hub kit from 835271Q2, 8M0075402 or 835274Q1.
- MerCruiser: chart-listed MerCruiser I, Alpha One and Bravo One single-prop drives, including the 120-190 HP MerCruiser I family; listed 2.5, 3.0, 3.7, 4.3, 4.5, 5.0 and 5.7 litre engines; and chart-listed 6.2, 7.4, 8.1 and 8.2 litre applications through 425 HP. Requires separate Flo-Torq II kit 835257Q1 and the correct drive hardware. Verify engine/drive model, year and clearance; these sizes are not suitable for every boat or load.
- Yamaha sterndrives: chart-listed V6/V8 4.75-inch gearcase, 3.0/4.3/5.0/5.7 litre (1989-1993) and 7.4 litre (1992-1993), with the correct separate hub kit. Confirm the drive model.
- Brand: Quicksilver
- Series: Black Diamond
- Part Number: QA2010X
- Material: Aluminum
- Blades: 3
- Diameter: 16 inches
- Pitch: 16 inches

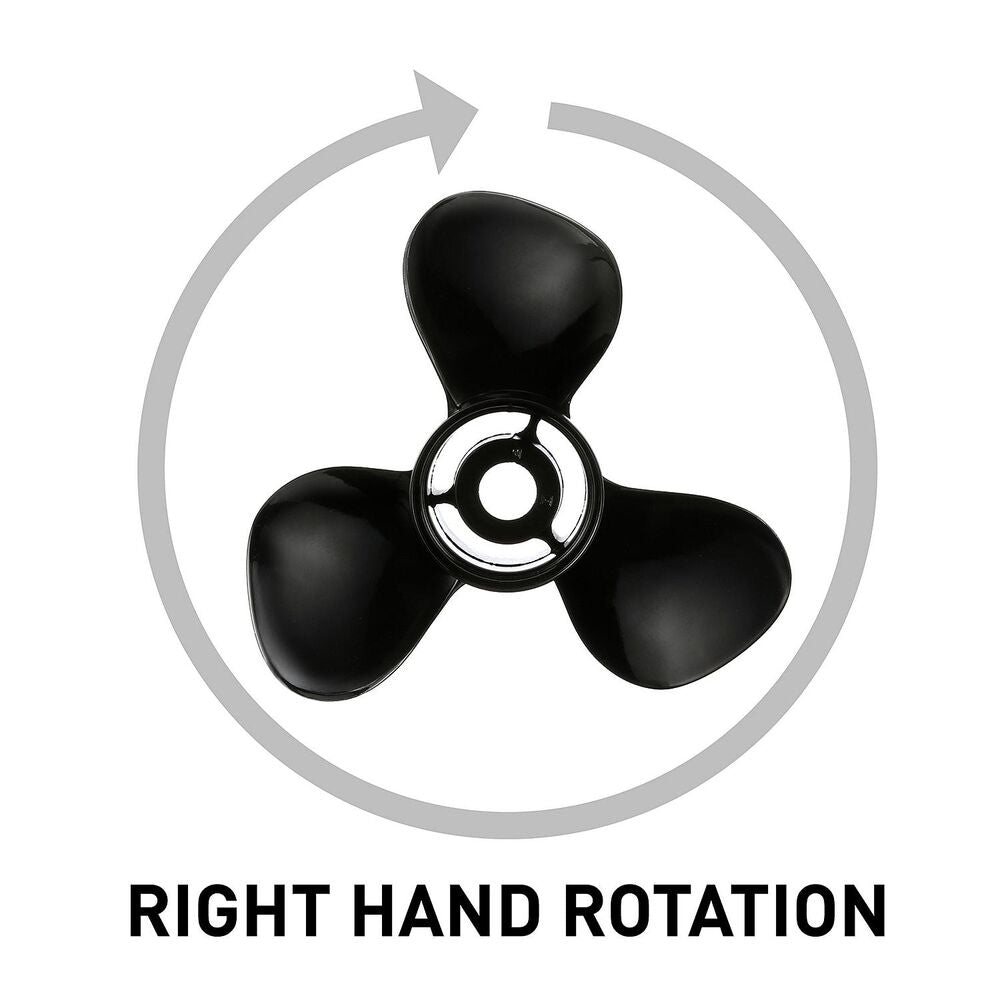

- Rotation: Right-hand (RH)
- Hub: Compatible engine-specific hub kit required; sold separately
- Condition: New
- UPC: 745061028364
- Spline Application: 15 / 19 (engine and hub dependent)
What's Included
One Quicksilver QA2010X Black Diamond aluminum propeller. Compatible engine-specific hub kit required; sold separately. This Quicksilver SKU does not include a hub kit. Select the application-specific Flo-Torq II or heavy-duty system and attaching hardware separately. The shaft has 15 or 19 splines depending on engine/drive and hub kit. Verify blade and trim-tab clearance.
Service Notes
Inspect the shaft and hardware before installation. Follow the engine manufacturer's instructions for lubrication, hardware selection and tightening torque. Select pitch to keep full-throttle RPM within the engine's specified range under your normal load. This Quicksilver SKU does not include a hub kit. Select the application-specific Flo-Torq II or heavy-duty system and attaching hardware separately. The shaft has 15 or 19 splines depending on engine/drive and hub kit. Verify blade and trim-tab clearance.
Why You Should Buy
Aluminum construction and a protective black finish make this a practical replacement or spare for a compatible installation.
Common Applications
Compatible cruisers, loaded recreational boats and replacement/spare single-prop installations. Match diameter, pitch, rotation, shaft, gearcase and attaching hardware before ordering.
FAQ
What does 16 x 16 RH mean?
Diameter is 16 inches, pitch is 16 inches, and rotation is right-hand.
Is a hub included?
Compatible engine-specific hub kit required; sold separately. This Quicksilver SKU does not include a hub kit. Select the application-specific Flo-Torq II or heavy-duty system and attaching hardware separately. The shaft has 15 or 19 splines depending on engine/drive and hub kit. Verify blade and trim-tab clearance.
How do I confirm fitment?
Match the exact engine/drive model, year, shaft and gearcase to the manufacturer application chart. The total horsepower range covers several applications; it does not mean every engine in that range fits.
How should I choose pitch?
Use your current propeller and measured full-throttle RPM with the engine manufacturer's recommended range under normal boat load.
