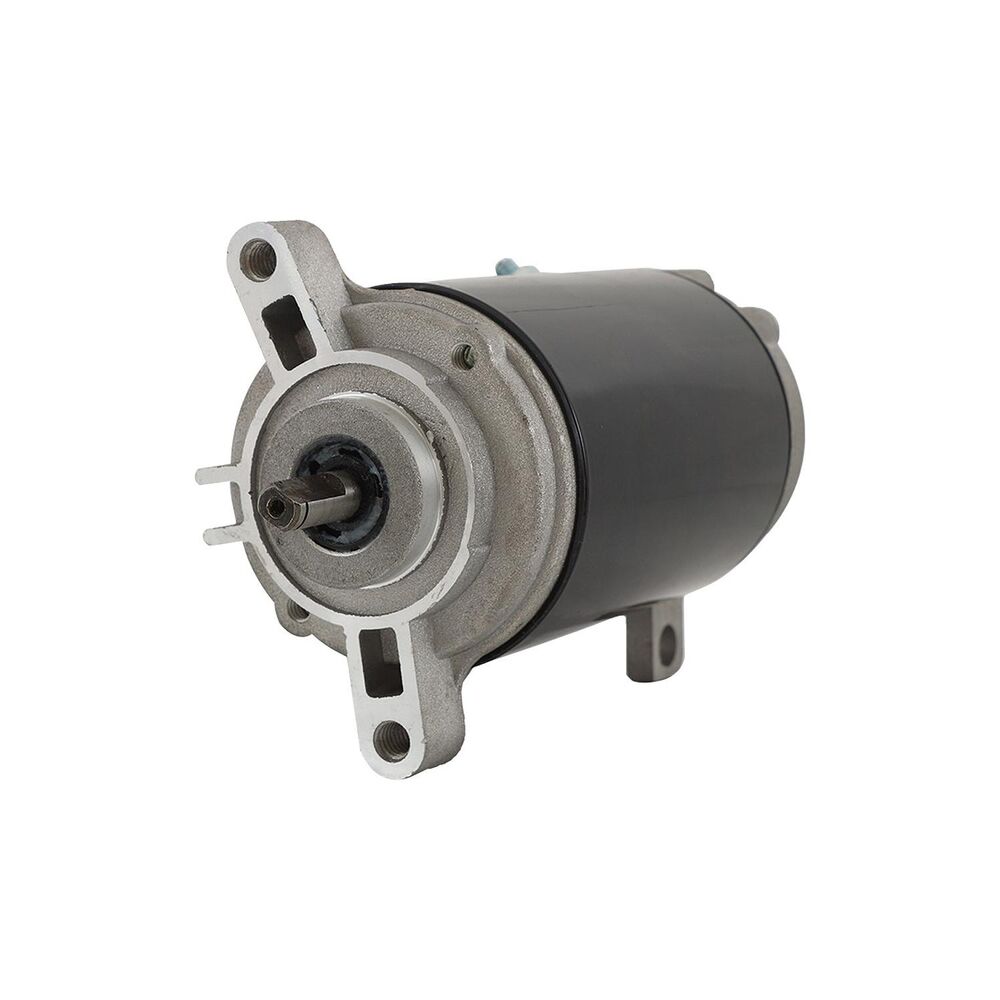

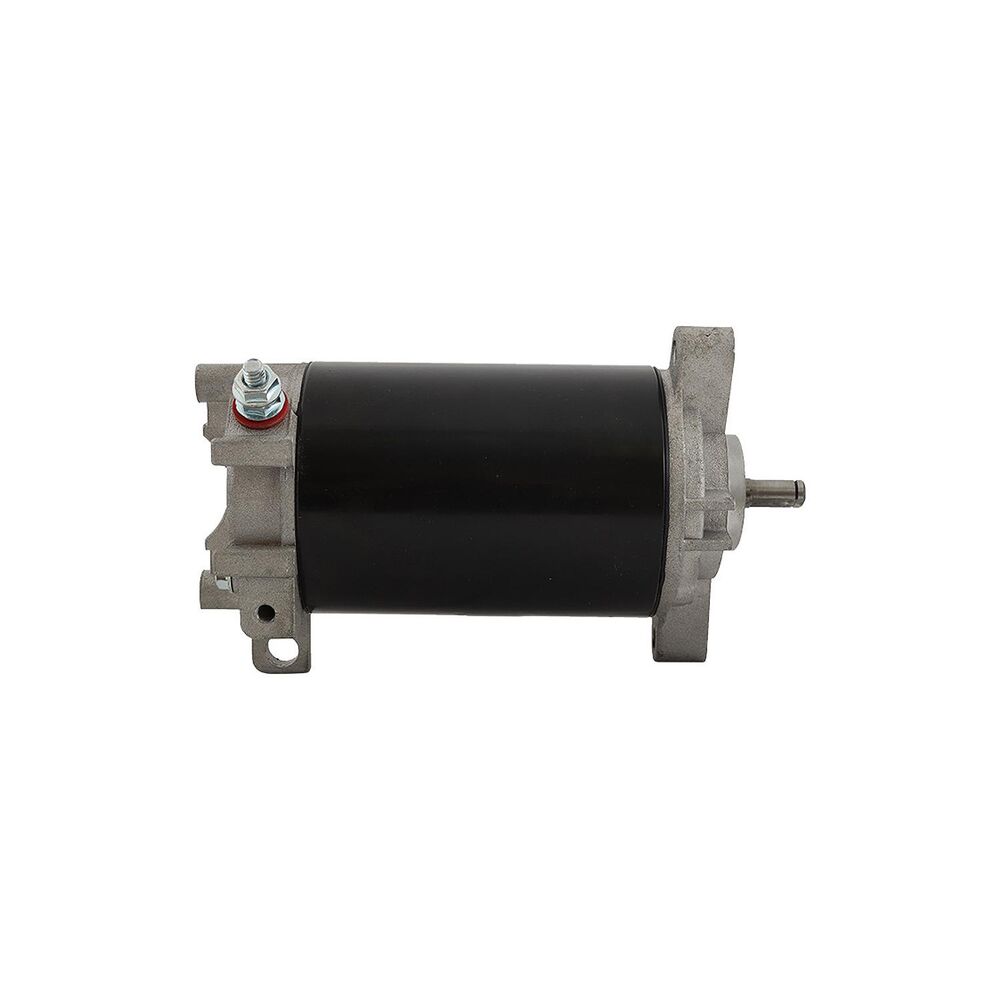

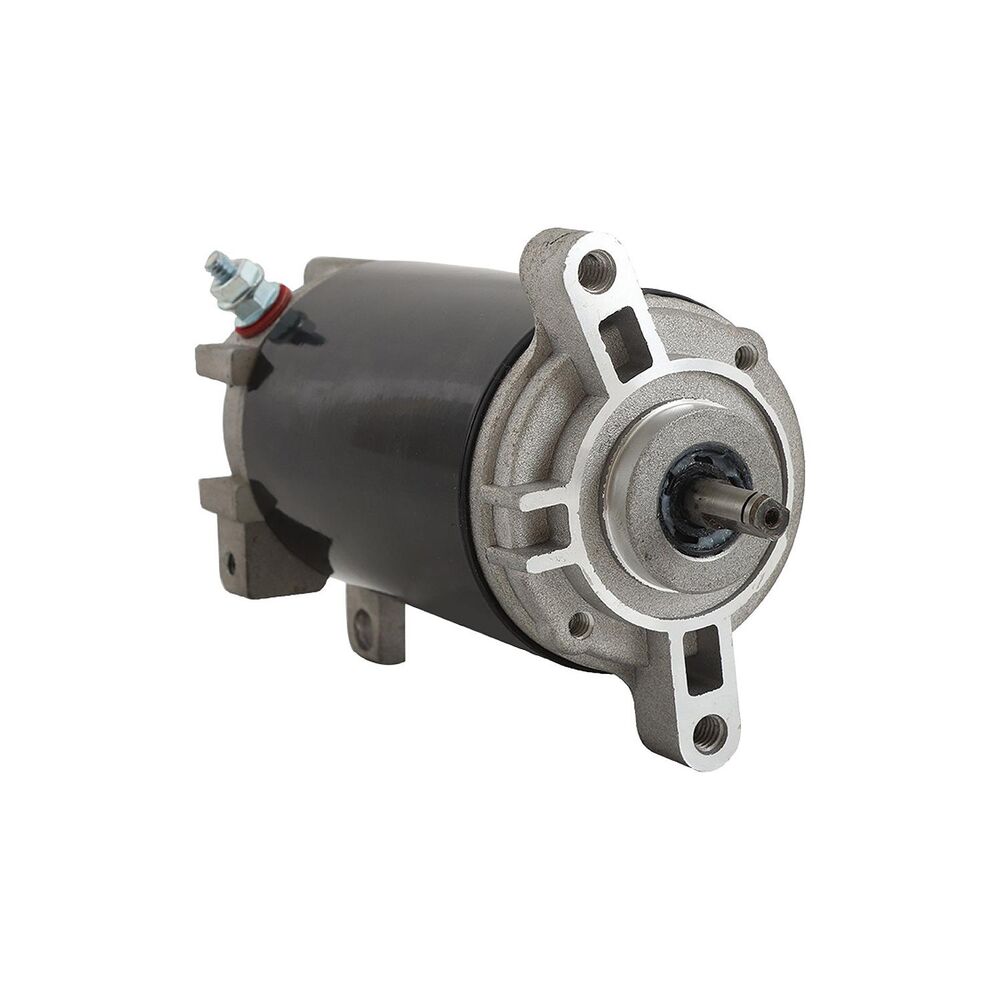

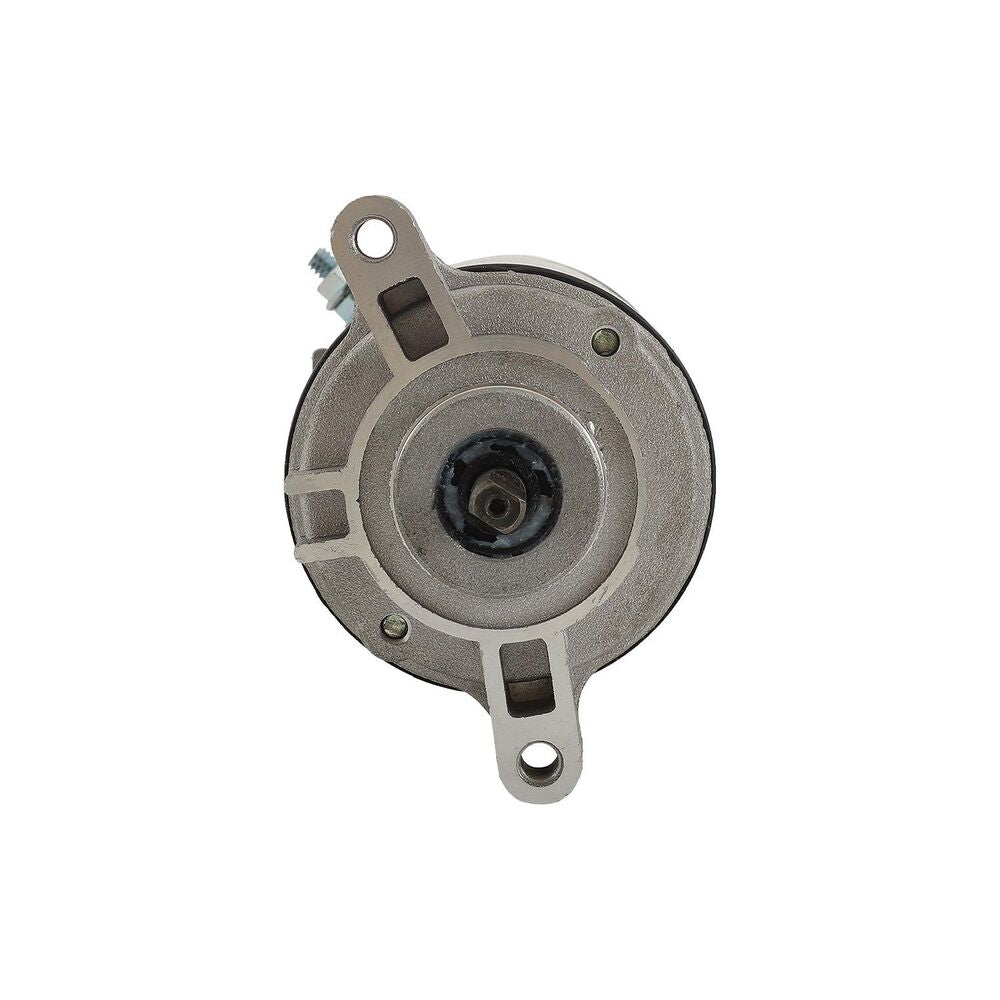

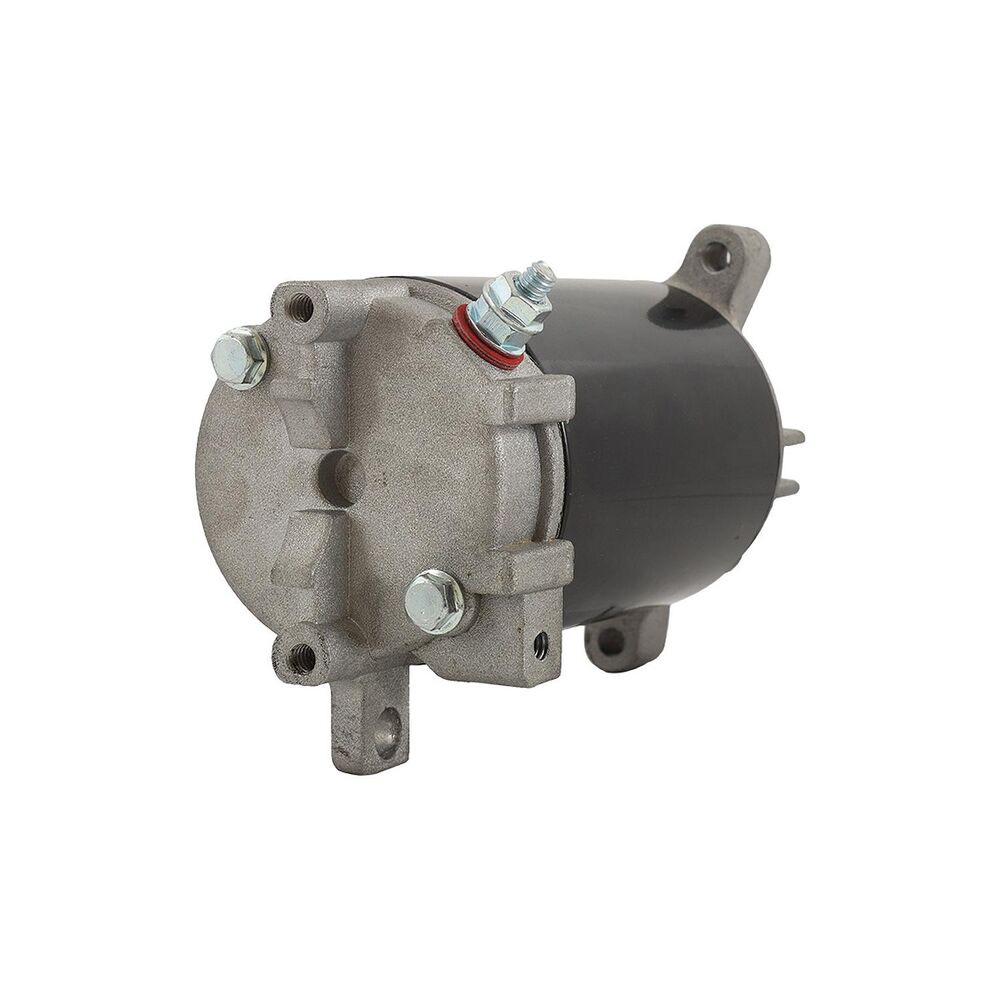

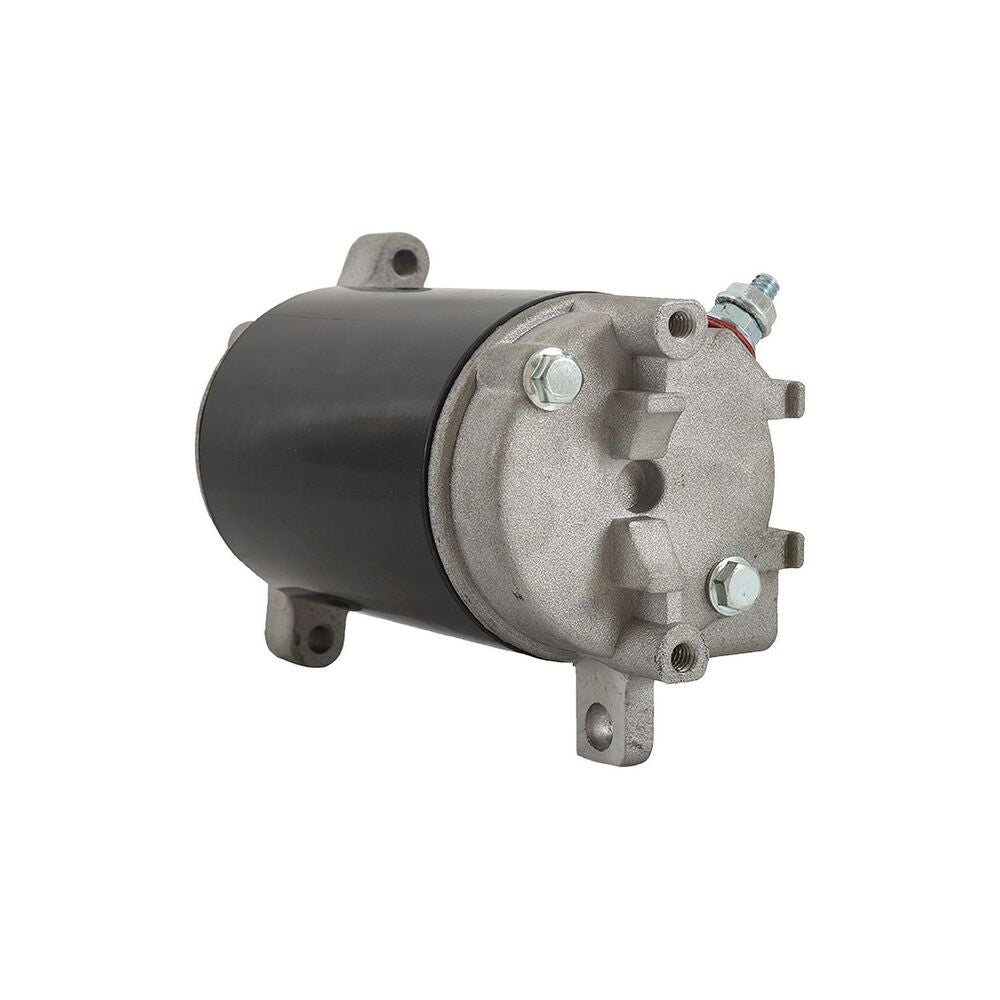

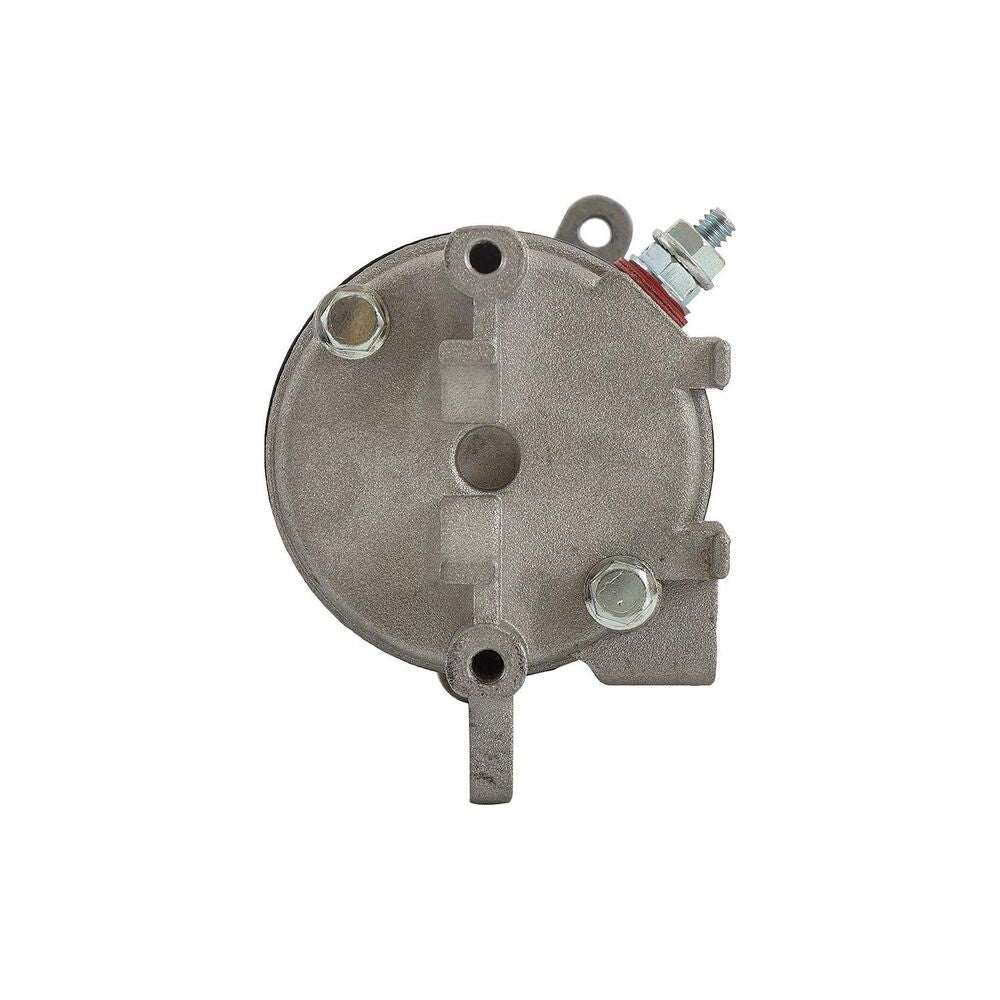

Quicksilver 8M6014130 Starter Motor for Evinrude/Johnson 100-175 HP
Quicksilver 8M6014130 is a 12-volt direct-drive starter motor for select Evinrude and Johnson 100-175 HP outboards. It uses clockwise rotation, a 10-tooth drive, and United Technologies design.
Key Features
- 12-volt marine starter motor
- Direct-drive design
- Clockwise rotation
- 10-tooth drive
- High-temperature epoxy armature construction helps secure and insulate internal wiring from corrosion
- Uses 90/10 copper bushings or heavy-duty needle bearings for dependable service
- Meets Marine SAE J1171 certification
- Built to Quicksilver original equipment manufacturer specifications
Applications
For select Evinrude and Johnson 100-175 HP outboards that specify starter motor 8M6014130.
Replacement References
- J & N: 410-21045
- Lester: 5741, 5762
- OMC: 0438878, 0586257, 0586287, 432925, 586286
- United Technologies: 5249840-M030SM, 6858540-M030SM, SM52498, SM685854
- Supersedes: Quicksilver 8M6007314
Product Details
- Brand: Quicksilver
- Part Number: 8M6014130
- Voltage: 12 volts
- Starter Design: Direct drive
- Rotation: Clockwise
- Tooth Count: 10
- Package Quantity: 1
- UPC: 678633208959
- Packaged Length: 8.7 in.
- Packaged Height: 4.5 in.
- Packaged Weight: 5.735 lb.
- Country of Origin: China
- California Proposition 65: No warning required
Installation Note
Check the applicable owner’s manual, parts catalog, or service manual for exact application and installation instructions. Verify the engine model, required rotation, mounting pattern, and pinion tooth count before installation.
