Description

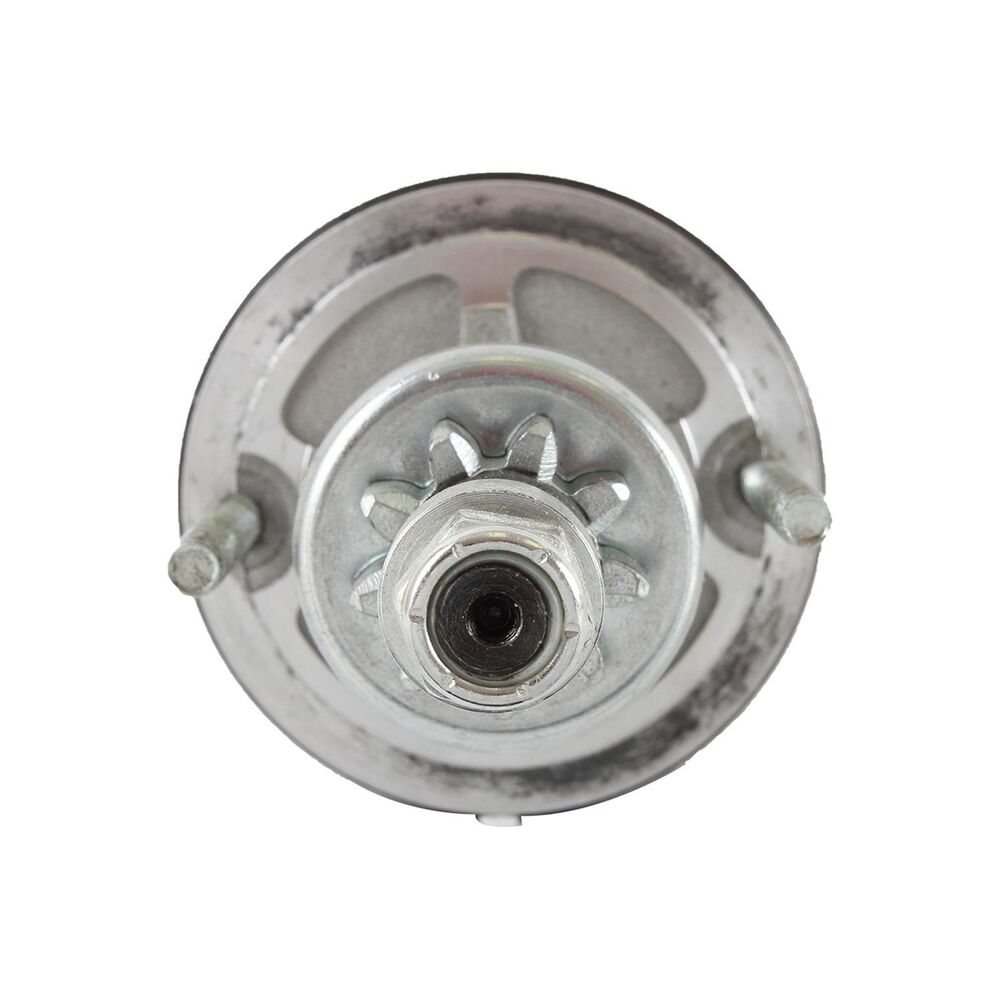

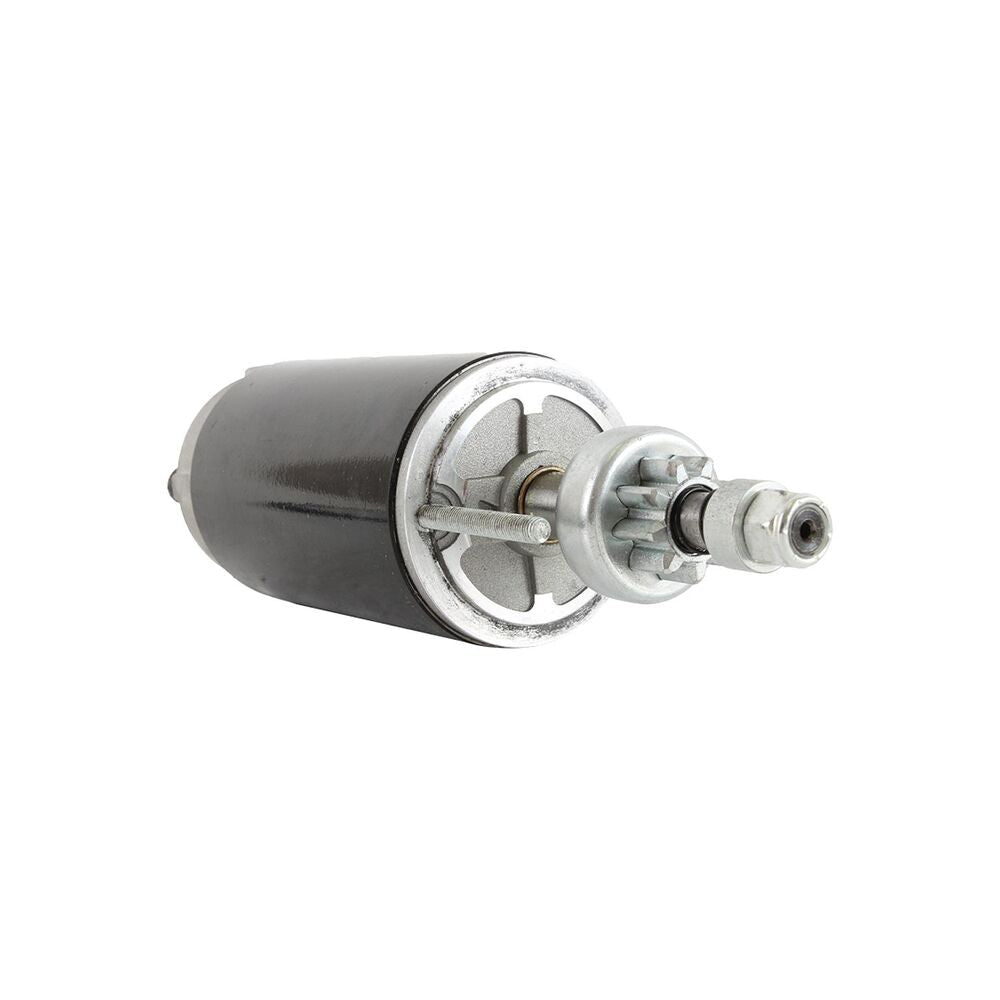

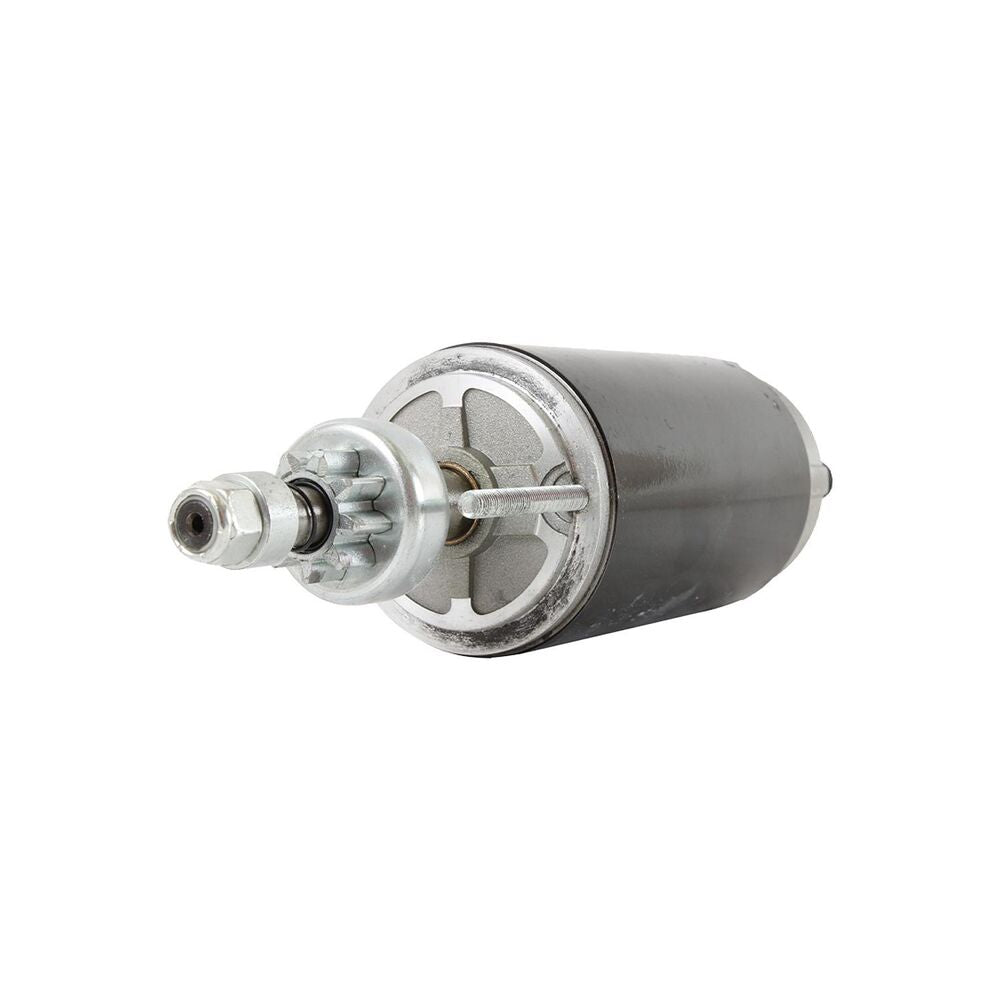

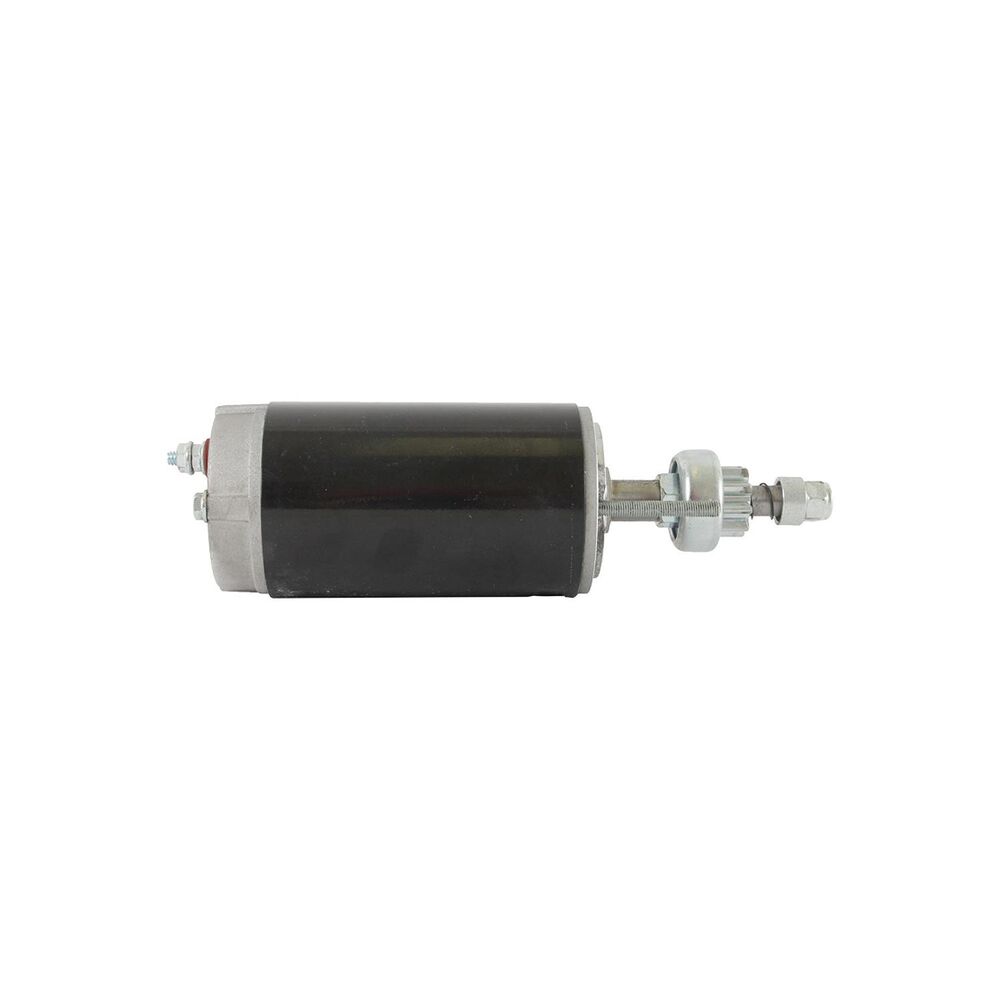

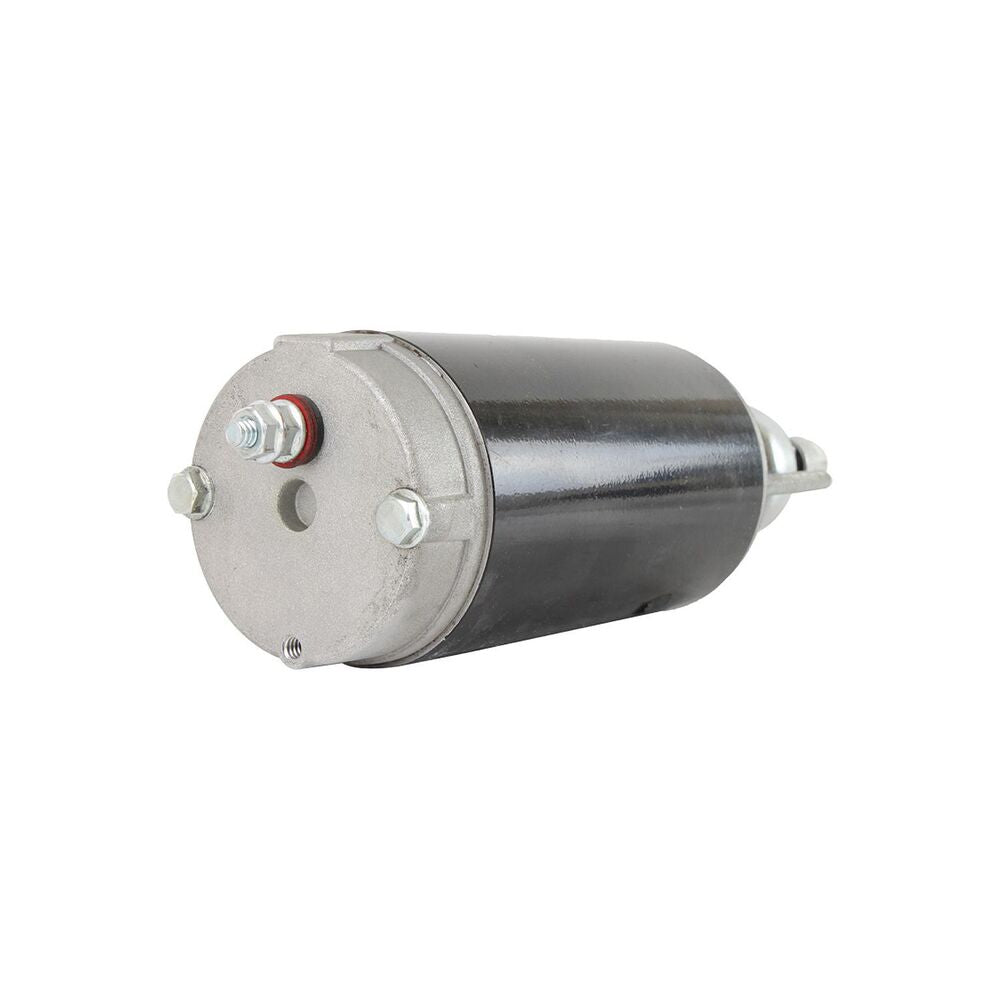

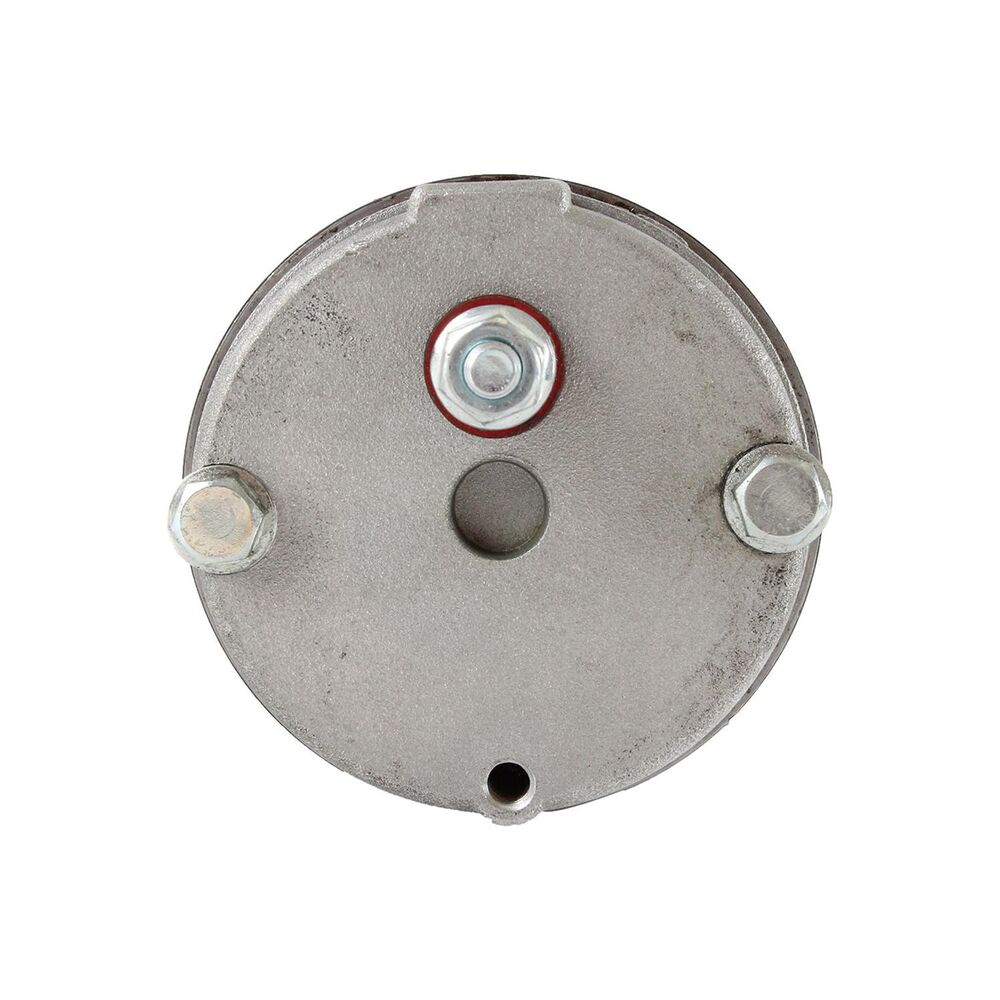

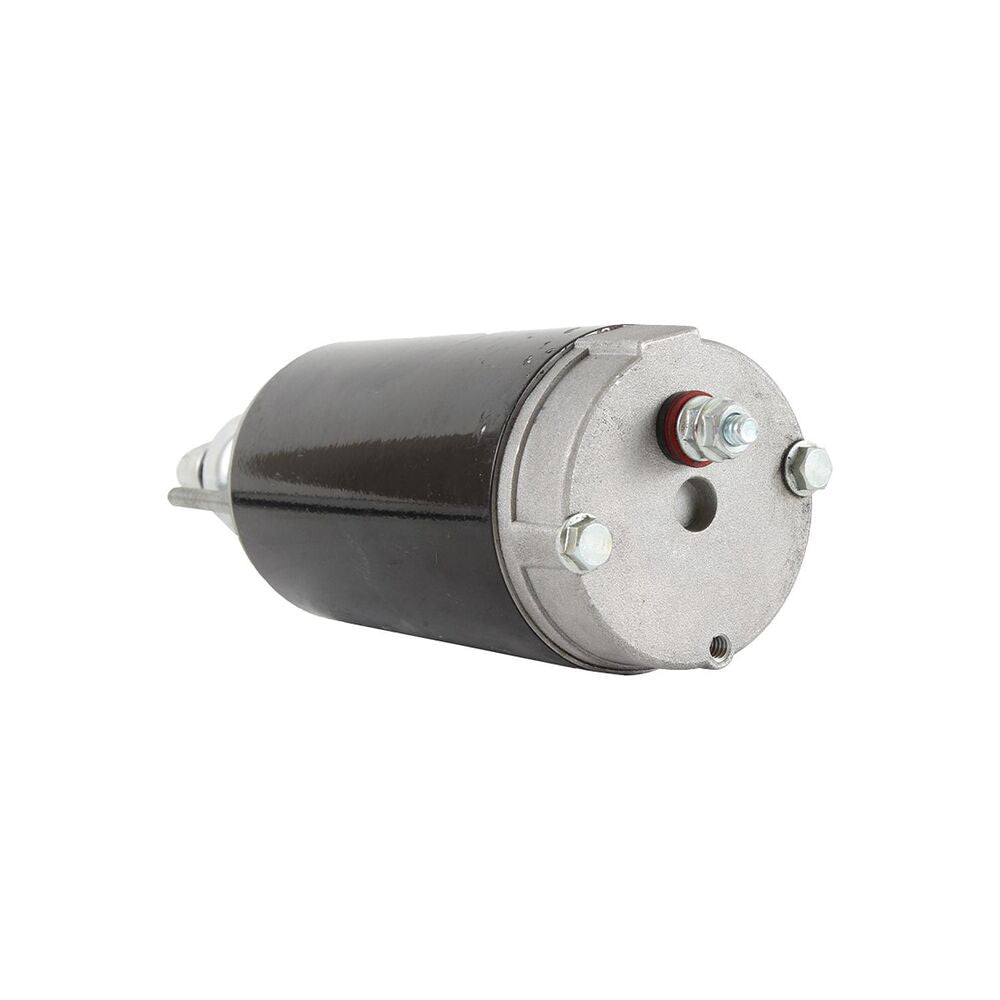

Quicksilver 8M6014128 Starter Motor for Chrysler/US Marine 70-115 HP
Quicksilver 8M6014128 is a 12-volt permanent-magnet direct-drive starter motor for select Chrysler and US Marine 70-115 HP outboards. It uses counter-clockwise rotation, a 9-tooth drive, and Prestolite design.
Key Features
- 12-volt marine starter motor
- Permanent-magnet direct-drive design
- Counter-clockwise rotation
- 9-tooth drive
- High-temperature epoxy armature construction helps secure and insulate internal wiring from corrosion
- Uses 90/10 copper bushings or heavy-duty needle bearings for dependable service
- Meets Marine SAE J1171 certification
- Built to Quicksilver original equipment manufacturer specifications
Applications
For select Chrysler and US Marine 70-115 HP outboards that specify starter motor 8M6014128. Verify the required part number, mounting pattern, rotation, and tooth count before ordering.
Replacement References
- Chrysler Marine: 48-0955, 9955, 49-0955, 61-6955, A85955
- Supersedes: Quicksilver 8M6007284
Product Details
- Brand: Quicksilver
- Part Number: 8M6014128
- Voltage: 12 volts
- Starter Design: Permanent magnet direct drive
- Rotation: Counter-clockwise
- Tooth Count: 9
- Package Quantity: 1
- UPC: 678633208935
- Packaged Length: 11.9 in.
- Packaged Height: 4 in.
- Packaged Weight: 7.21 lb.
- Country of Origin: China
- California Proposition 65: No warning required
Installation Note
Check the applicable owner’s manual, parts catalog, or service manual for exact application and installation instructions. Disconnect the battery before servicing the starting system.
