Description

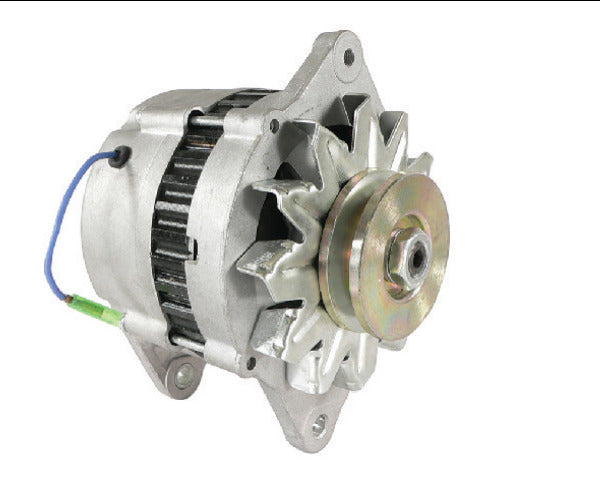

Quicksilver 8M6007518 12V 80-Amp Alternator for Yanmar LH Engines
Quicksilver 8M6007518 is a 12-volt, 80-amp replacement alternator for select Yanmar LH-series marine engines. It combines an internal regulator with an external cooling fan for dependable marine charging-system service.
Key Features
- 12-volt, 80-amp output
- Internal voltage regulator
- External cooling fan
- Corrosion-resistant plated fan, pulley and hardware for marine service
- Flame-arrestor screens meet Marine SAE J1171 requirements
- Built to Quicksilver original equipment manufacturer specifications
Applications
For select Yanmar LH-series marine engines that specify alternator 8M6007518 or one of the listed interchange references. Because Yanmar applications vary by engine configuration, verify the required part number before ordering.
Replacement References
- Hitachi: LR180-03A, LR180-03B and LR180-03C
- J&N: 400-44046 and 400-44130
- Lester: 12272
- Yanmar: 119573-77200, 119573-77201 and 129470-77200
Product Details
- Brand: Quicksilver
- Part Number: 8M6007518
- Product Type: Marine alternator
- Voltage: 12 volts
- Rated Output: 80 amps
- Regulator: Internal
- Fan: External
- Package Quantity: 1
- UPC: 678633111105
Installation Note
Disconnect the battery before servicing the charging system. Verify the engine model, mounting configuration, electrical connections and required part number in the applicable parts or service manual before installation.
