Description

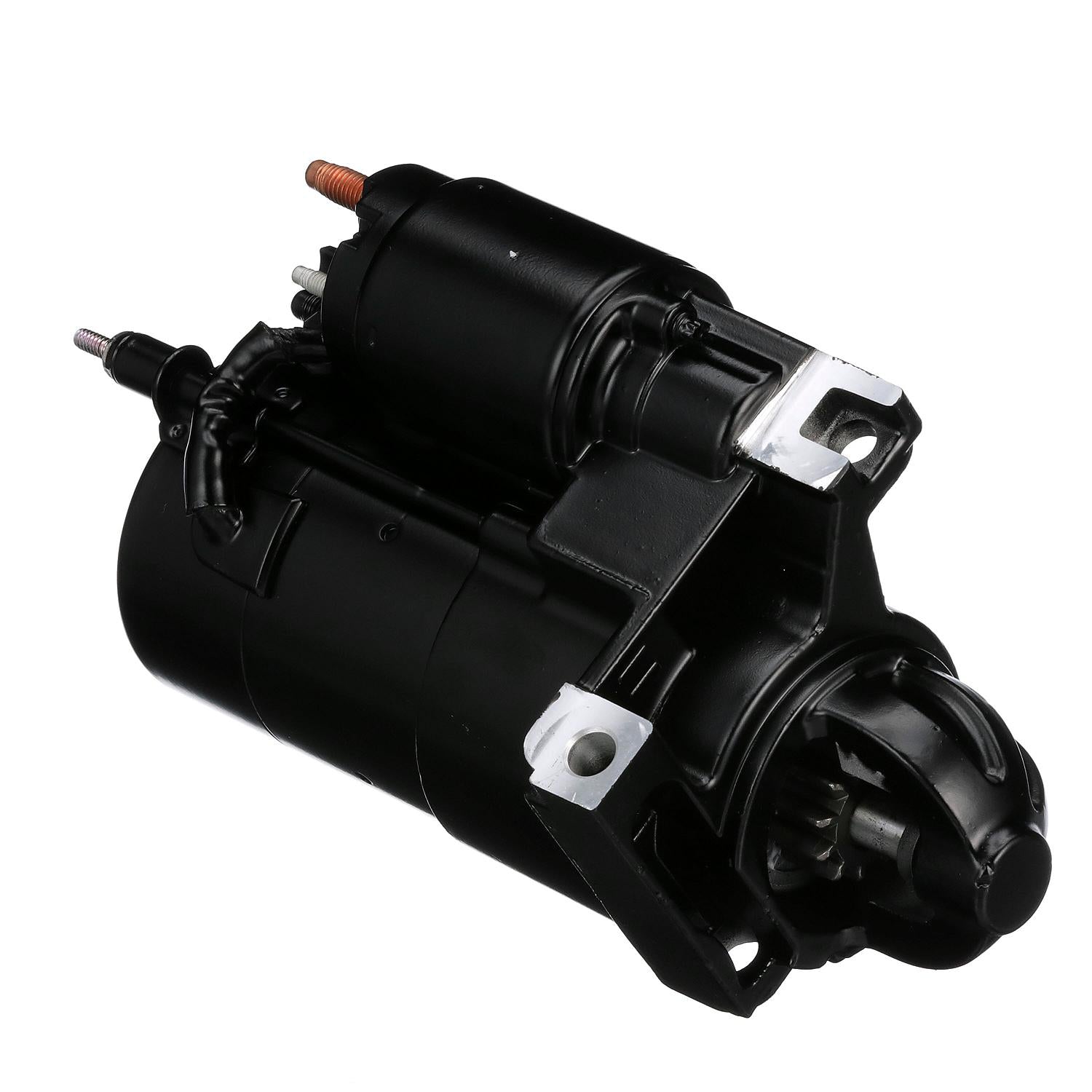

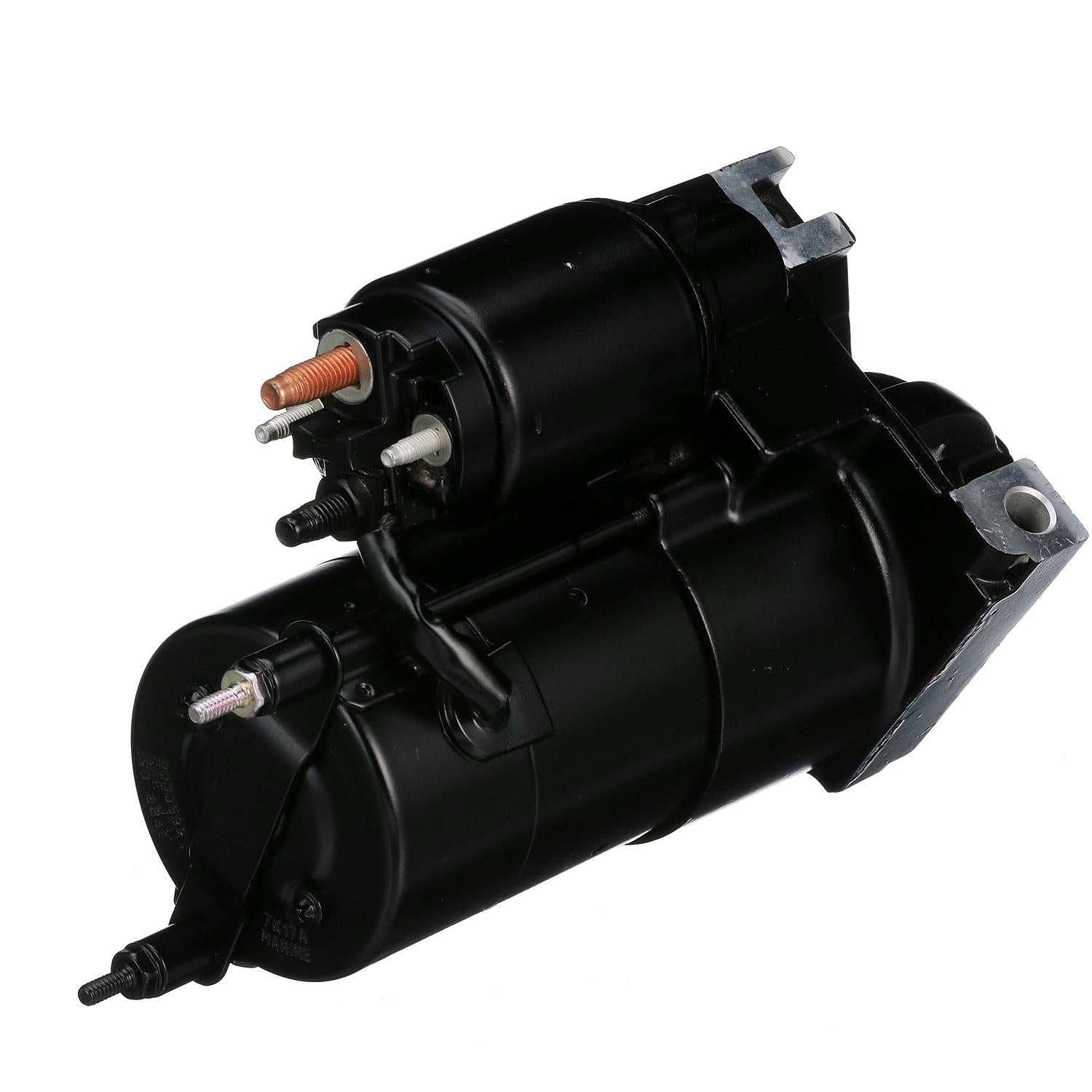

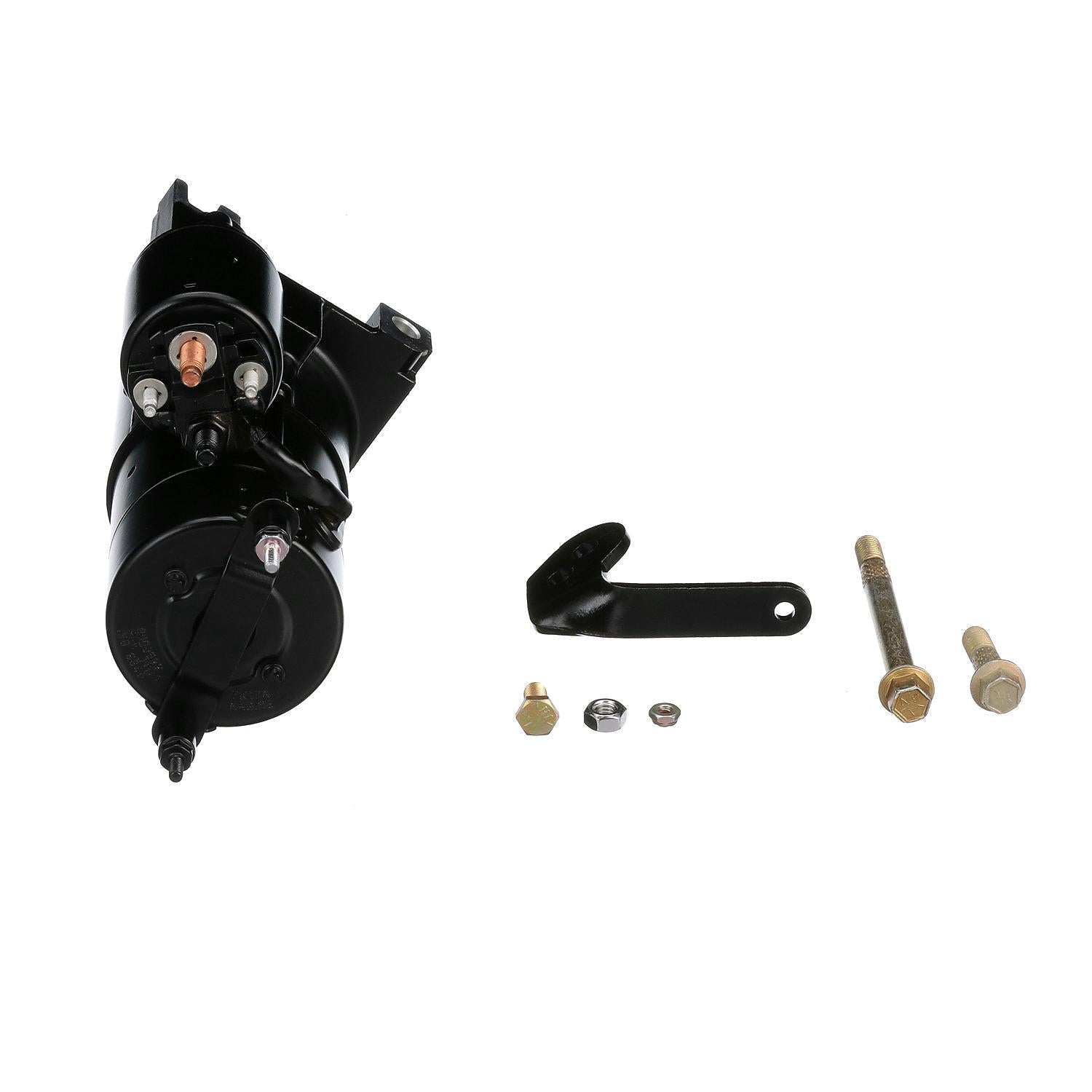

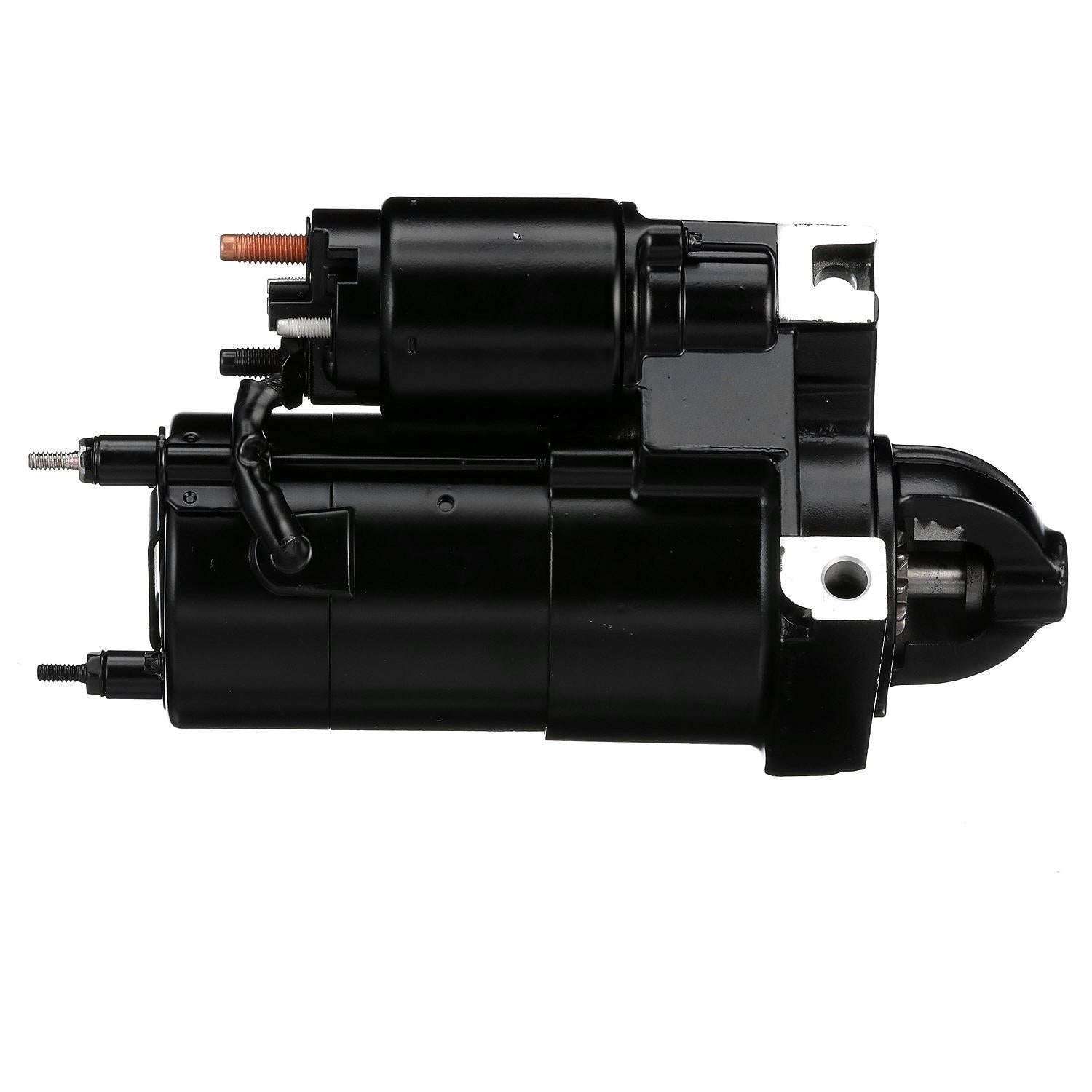

Quicksilver 8M0090697 Starter Motor Assembly
Quicksilver 8M0090697 is a marine starter motor assembly for General Motors inline 4-cylinder and 6-cylinder MerCruiser engines produced from 1963 through 1998. It features an 11-tooth pinion and is designed for bottom-mount installations with a straight-across bolt pattern.
Key Features
- 11-tooth starter pinion
- Bottom-mount installation
- Straight-across mounting-bolt pattern
- Same starter assembly configuration originally installed on the specified engines
- Designed and built specifically for marine-engine applications
- Produced to meet Mercury Marine original equipment manufacturer specifications
Applications
Fits select General Motors inline 4-cylinder and inline 6-cylinder MerCruiser engines manufactured from 1963 through 1998 that specify starter motor assembly 8M0090697 or superseded part number 806965A4.
Fitment depends on the exact engine model, serial number, mounting position, and bolt pattern. Confirm the required part number in the applicable MerCruiser parts catalog or service manual before ordering.
Product Details
- Brand: Quicksilver
- Part Number: 8M0090697
- Product Type: Marine starter motor assembly
- Pinion: 11 tooth
- Mounting Position: Bottom mount
- Bolt Pattern: Straight across
- Package Quantity: 1
- UPC: 745061937321
- Country of Origin: South Korea
Package Information
- Package Length: 12.25 inches
- Package Height: 6.5 inches
- Package Weight: 9.438 pounds
Supersession Information
Quicksilver 8M0090697 supersedes previous part number 806965A4.
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm. For more information, visit P65Warnings.ca.gov.
Installation Note
Disconnect the battery before servicing the starting system. Refer to the applicable MerCruiser service manual for removal, installation, electrical connections, and fastener specifications.
