Description

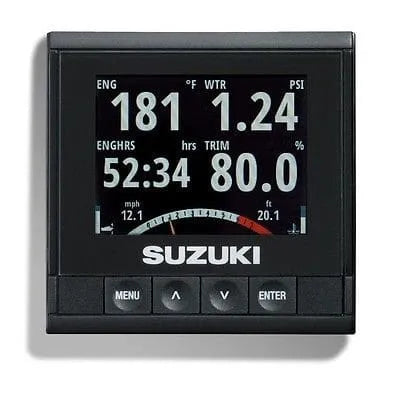

Suzuki 990C0-04C10-KIT C10 Color Gauge Kit with Cables
The Suzuki 990C0-04C10-KIT is a full C10 multifunction color gauge kit, including all necessary power and interface cables. Capable of displaying engine data such as RPM, trim, fuel level, water pressure, engine temperature, voltage, and total hours — all in a vibrant color display.
Compatibility & Features
- Designed for EFI-equipped Suzuki outboards (engine serial ≥ 310001, model year 2013+)
- Displays data for one or two engines on a single gauge
- Fits standard 3-3/8" gauge cutout
- Connects via single NMEA 2000 Micro-C cable for power and data
- Three default display pages; user customization also supported
- Micro-USB port for software updates
Included in Kit
- C10 Color LCD Gauge (990C0-04C10)
- Power cable
- Interface / data cable
- T-connectors for networking dual engines
- Resistors and adapters for correct data mapping
Specifications
- Part Number / SKU: 990C0-04C10-KIT
- Display Type: Full-color LCD with backlit graphics
- Mounting: Front-mount, fits standard gauge cutouts
- Network Interface: NMEA 2000 Micro-C
- Functions Displayed: RPM, trim, voltage, water pressure, fuel level, engine temperature, hours
- Warranty / OEM Quality: Genuine Suzuki marine gauge kit
- Prop 65 Notice: Gauge electronics may contain materials that are subject to the California Proposition 65 warning
Installation Notes & Tips
Mount the gauge in a 3-3/8″ cutout in the dash or pod. Wire the power, ground, and data cable to the engine’s NMEA 2000 network. Use the included T-connectors for dual-engine setups. Ensure cables are routed neatly and secured to avoid chafe over time. Update firmware via micro USB when new versions are released.
Returns
Unused gauge kits are eligible for return under our Return Policy. Please double-check compatibility with your engine model and current networking setup before installing.
Wakeboss.com offers authentic Suzuki gauge kits to ensure full compatibility, accurate readings, and easy integration into your marine electronics setup.
