Description

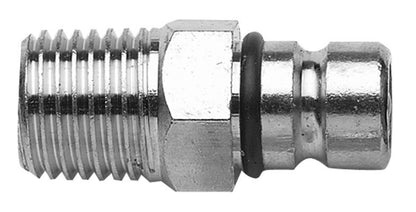

The Moeller 033463-10 is a chrome-plated brass male fuel tank fitting with 1/4-inch NPT threads. It threads into a compatible tank fuel-withdrawal port and provides the Suzuki small-bore connection for a matching female fuel-line connector such as Moeller 033488-10.
Key Features
- Male Suzuki-style tank connector.
- 1/4-inch NPT threaded tank connection.
- Chrome-plated brass construction.
- Pairs with Moeller 033488-10 female hose connector, sold separately.
Fitment & Applications
For fuel tanks with a compatible 1/4-inch NPT withdrawal port and a Suzuki small-bore fuel-line connection, commonly listed for applications up to 75 HP. This is a threaded tank fitting, not a hose-barb engine connector. Confirm the tank threads and mating connector profile before ordering.
Product Details
- Brand: Moeller
- Manufacturer Part Number: 033463-10
- Connector Type: Male tank fitting
- Tank Threads: 1/4 inch NPT
- Material: Chrome-plated brass
- Application: Suzuki small-bore fuel-line connection, up to 75 HP where specified
- Mating Hose Connector: Moeller 033488-10 (not included)
- UPC: 739729334638
- Condition: New
What's Included
One Moeller 033463-10 male fuel tank fitting. Tank, fuel hose, female connector, and installation supplies are not included.
Service Notes
Inspect the tank withdrawal port and match the 1/4-inch NPT threads before installation. Use a fuel-compatible thread sealant according to the tank and fitting installation instructions. Do not overtighten. Connect the matching female fitting and check the fuel system for leaks after installation.
Why You Should Buy
This tank fitting provides the correct threaded connection when replacing a matching Suzuki small-bore tank outlet. The paired 033488-10 connector identifies the compatible hose-side fitting.
Common Applications
- Replacing a Suzuki-style male fitting on a compatible marine fuel tank.
- Adapting a compatible 1/4-inch NPT withdrawal port to the Moeller 033488-10 female connector.
FAQ
Is 1/4 inch NPT the hose size?
No. It is the threaded connection to the tank. The matching 033488-10 female connector has a 3/8-inch hose barb.
Which female connector fits this tank fitting?
Moeller lists 033488-10 as the matching connector.
Is this an engine-side hose fitting?
No. It is a male fitting that threads into a compatible fuel tank withdrawal port.
