Mercury 8M0206585 SmartCraft SC100 Trim Gauge Black 52mm

Mercury 8M0206585 SmartCraft SC100 Trim Gauge Black 52mm

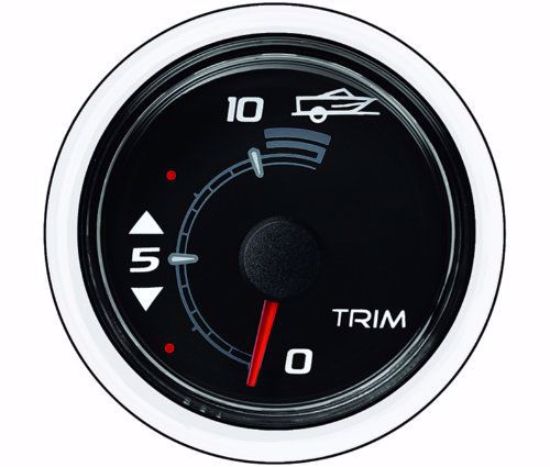

Mercury 8M0206585 is a genuine Mercury SmartCraft SC100 System Link trim gauge with a black face and glass lens. This 2-1/8 inch / 52mm gauge displays engine trim position when installed in a compatible Mercury SmartCraft instrumentation system with the required trim sender or sensor data.

Use this trim gauge where Mercury part number 8M0206585 is specified. Do not substitute it for a different SC100 gauge part number unless your Mercury parts diagram or rigging documentation confirms compatibility.

Applications

Common applications include compatible Mercury SmartCraft SC100 System Link gauge installations where a black 52mm trim gauge is required.

Always verify compatibility by Mercury part number, engine serial number, SmartCraft system, harness configuration, trim sender or sensor setup, dash opening size and parts diagram before ordering.

Shipping & Returns

Ships as one genuine Mercury SmartCraft SC100 trim gauge.

Electrical and rigging items must be confirmed before installation. Returns must be unopened, unused and in sellable condition. Review our Refund Policy for full return details.

Key Facts

Brand: Mercury

Part Number: 8M0206585

Category: Rigging & Controls

Product: Gauges/Displays & Adapters

Specifics: SmartCraft Gauges

Product Type: SmartCraft SC100 Trim Gauge

Gauge Face: Black

Gauge Size: 2-1/8 in / 52mm

Lens: Glass

System: Mercury SmartCraft SC100 System Link instrumentation

Sold As: Each

What’s Included

Gauge: One Mercury 8M0206585 SmartCraft SC100 black trim gauge

Bezel, harnesses, senders, sensors and additional installation components are not included unless specifically shown or stated.

Related Mercury Rigging Items

Working on Mercury SmartCraft instruments? See our Mercury gauges, Mercury parts and accessories, and genuine Mercury outboard parts and maintenance kits.

Service Notes

Confirm that your Mercury SmartCraft system can provide trim position data before installing this gauge.

Confirm whether a separate bezel is required for your dash layout. SC100 bezels are commonly sold separately unless included in a specific kit.

Route and secure wiring according to Mercury rigging instructions. Keep connections protected from moisture, heat, sharp edges and moving parts.

If replacing an existing gauge, match the old part number, gauge face color, size and connector style before ordering.
