Description

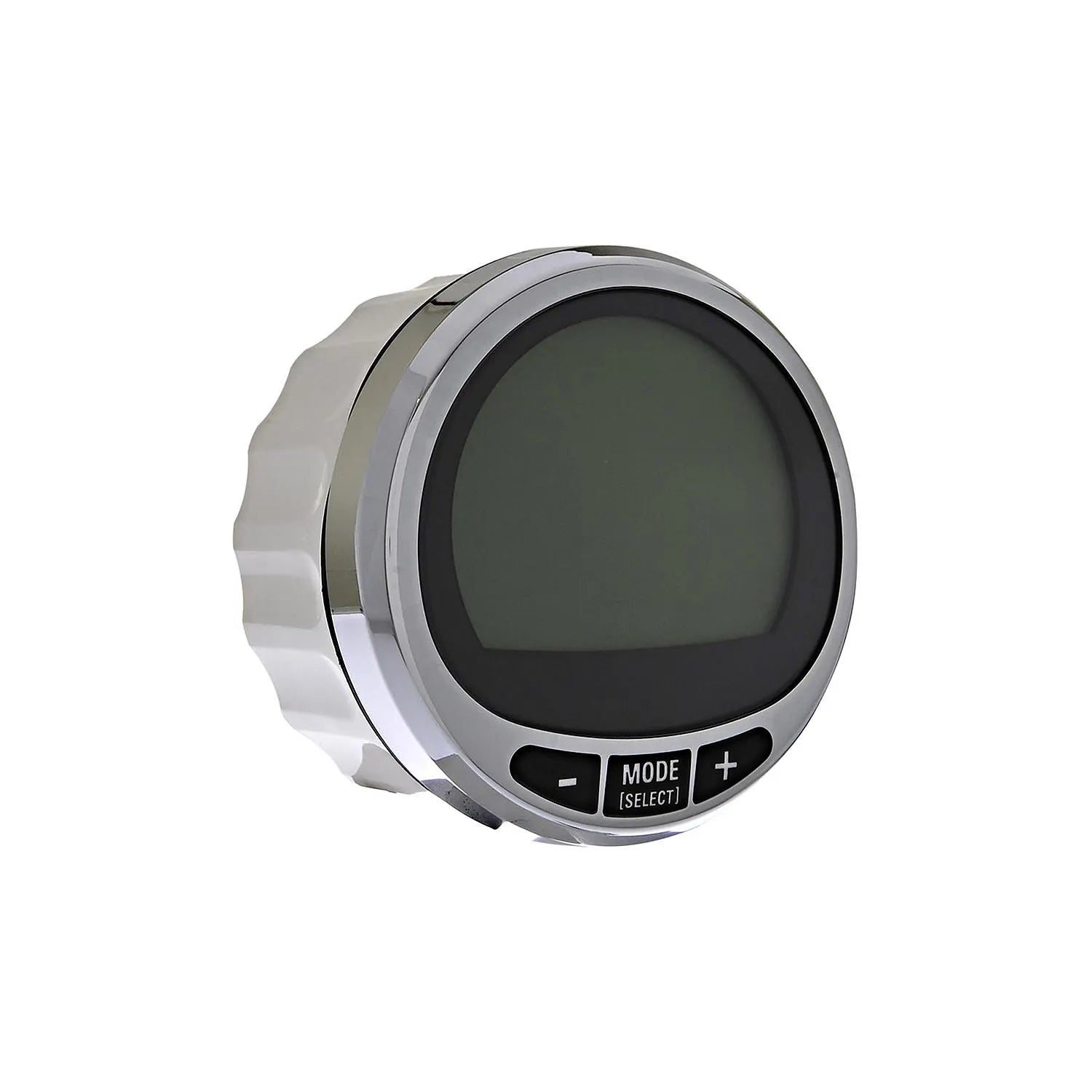

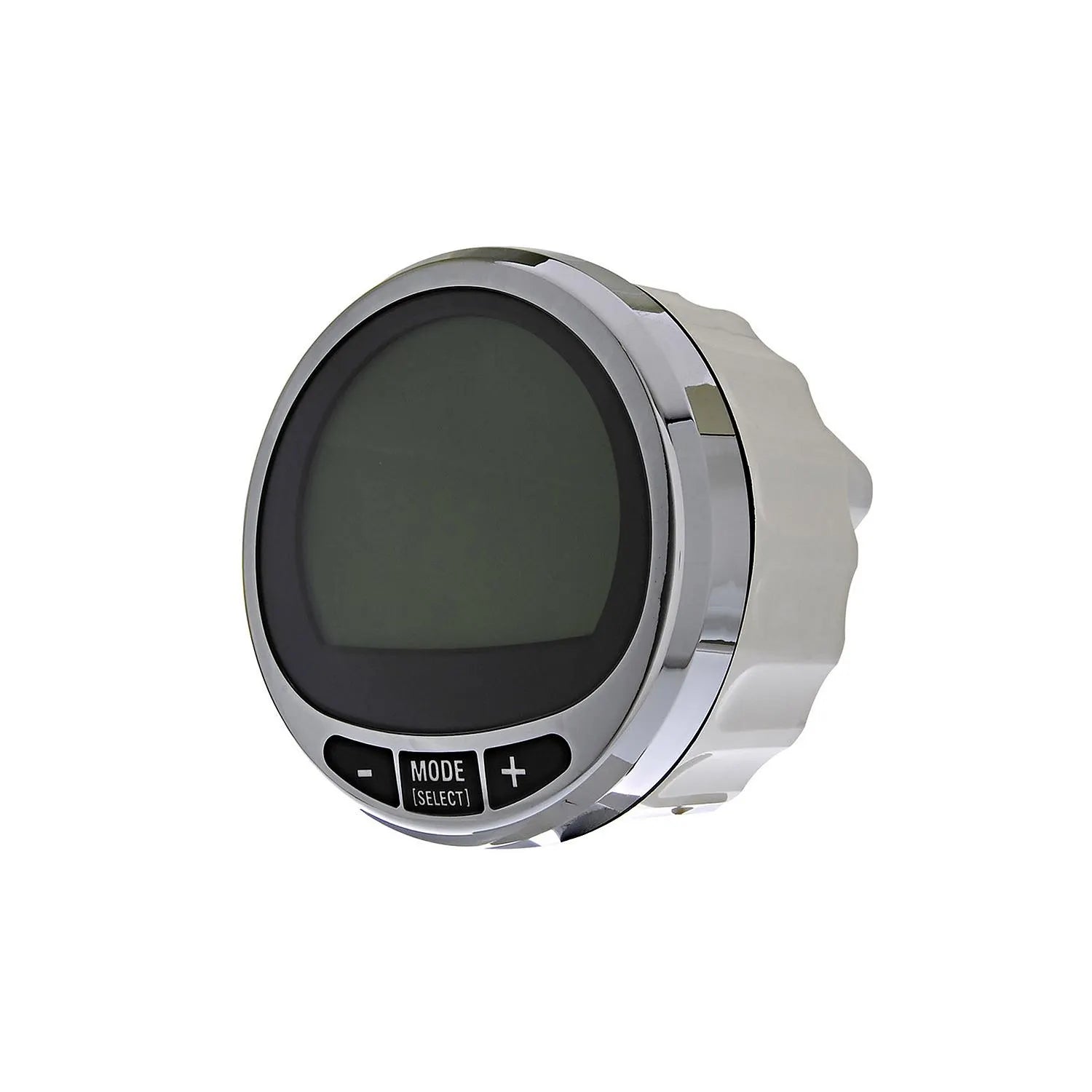

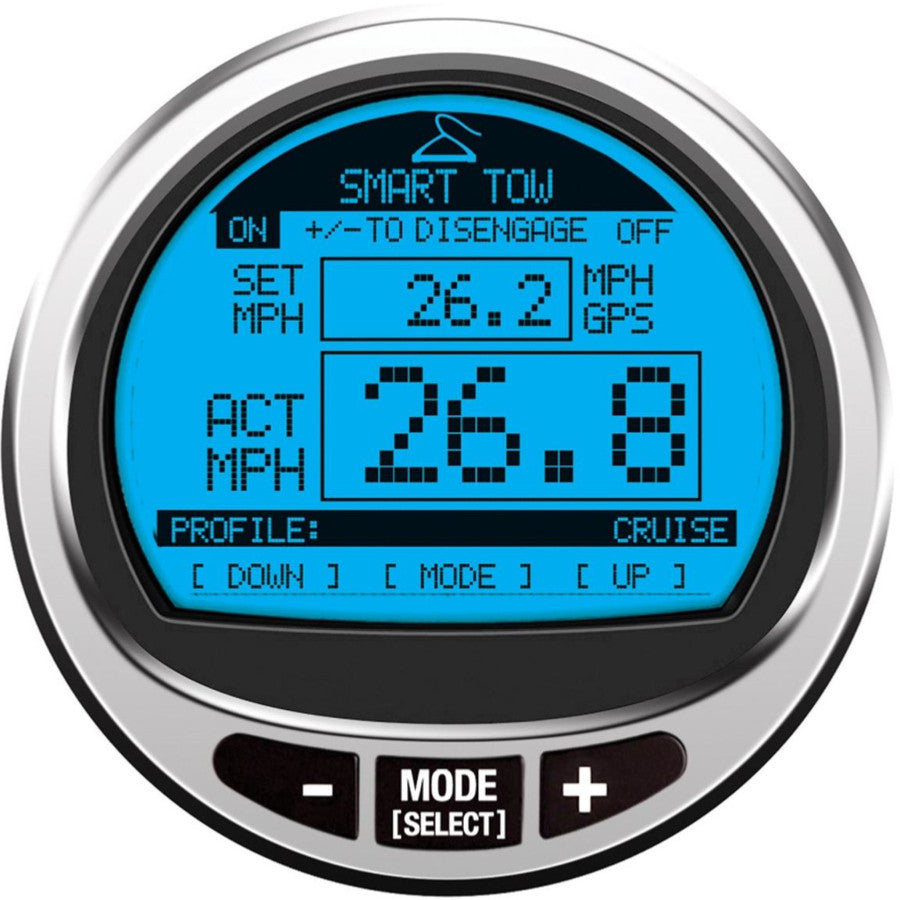

Mercury 8M0135536 SmartCraft MercMonitor (Level 1)
MercMonitor v4.602 ECO Screen Kit displays all available SmartCraft engine data on a single screen. Fits all SmartCraft-capable engines with full SmartCraft functionality—no NMEA 2000, universal fault codes, or latest Tab module support. Control buttons sit directly below the display for intuitive operation. Features customizable favorites, descriptive fault text (Generation 1, 2007+ engines), speed, depth, and more. Does not include NMEA 2000 Gateway, SmartTow, or Cruise functionality. Part 8M0119406.
- Includes ECO screen display, does not include NMEA 2000 Gateway functionality and does not include SmartTow or cruise
- Screens include customizable favorites, descriptive fault text (Generation 1) (2007 and newer engines only) speed, depth and more
- Three bezels included to complement other instruments and instrument panel
Applications
- Digital Gateway: Functions as a Level 1 NMEA 2000 gateway for single-engine configurations.
- Engine Compatibility: Fits all SmartCraft-capable Mercury outboards and MerCruiser engines.
- System Integration: Fully compatible with Mercury Active Trim and provides descriptive fault code text for easier troubleshooting.
Shipping & Returns
Electronic Items are NOT returnable
In-stock digital monitoring kits ship quickly to upgrade your helm's capabilities. For our full return policy, please visit /policies/refund-policy.
Key Facts
Brand: Mercury Marine
Part ID: 8M0135536
Display Type: Multi-color LCD with Glass Lens
Data Level: Level 1 (Basic NMEA 2000 Gateway)
UPC: 745061966314
What’s Included
Monitor: (1) MercMonitor Level 1 Digital Gauge
Bezels: (3) Interchangeable bezels (Black, White, and Chrome)
Wiring: Standard data harness and NMEA 2000 drop cable
Service Notes
This Level 1 unit is designed for single-engine applications only; for multi-engine data or advanced SmartTow features, a Level 2 or Level 3 MercMonitor is required. Ensure your NMEA 2000 backbone is properly powered and terminated before connecting the MercMonitor gateway to ensure stable data transmission to your chart plotter.
Frequently Asked Questions
What data does Level 1 send to my GPS?
Level 1 transmits approximately 8 key data items, including RPM, voltage, oil pressure, coolant temperature, fuel flow, and engine trim.
Will this fit in my existing gauge hole?
Yes, it is designed to fit a standard 3-3/8" (85mm) diameter dash hole, making it a direct replacement for older SC1000 gauges.
Does it support Active Trim?
Yes, the MercMonitor Level 1 provides a full user interface for Mercury’s Active Trim system.
