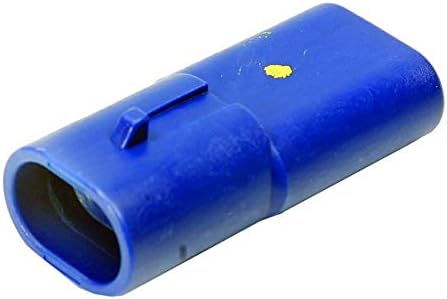

Mercury 893388A01 120 Ohm Resistor – 2-Pin CAN Bus Terminator
The Mercury 893388A01 is a factory OEM 120 ohm resistor used as a termination on CAN communication lines including Mercury SmartCraft networks. This 2-pin termination ensures proper signal integrity and prevents reflections on the CAN bus system.
Applications & Compatibility
- Used in Mercury / MerCruiser CAN / SmartCraft gauge systems and networked marine electronics
- Required termination for data lines, particularly in multi-device CAN bus configurations
- OEM part used by Mercury as a standard 2-pin terminator/resistor blue cap design
Features & Benefits
- Genuine Mercury part ensures proper resistance and network matching
- Prevents communication errors and signal distortion on CAN bus networks
- Compact 2-pin design for easy insertion into CAN harness terminations
- Blue cap appearance consistent with Mercury’s standard terminator design
Specifications
- Part Number: 893388A01
- Resistance: 120 ohm
- Pin Count: 2
- Type: CAN bus termination resistor
- UPC: 745061658073
- Prop 65 Warning: Cancer & Reproductive Harm
Installation & Usage Notes
Always install this resistor at the end of a CAN bus segment where termination is required. Do not place multiple terminators on the same line. Confirm correct wiring polarity and ensure the resistor is fully seated in the connector. Use only one termination resistor per segment unless specified otherwise by network layout.
Returns
Unopened and unused resistors may be returned per our Return Policy. Verify part number and application before installation.
