Description

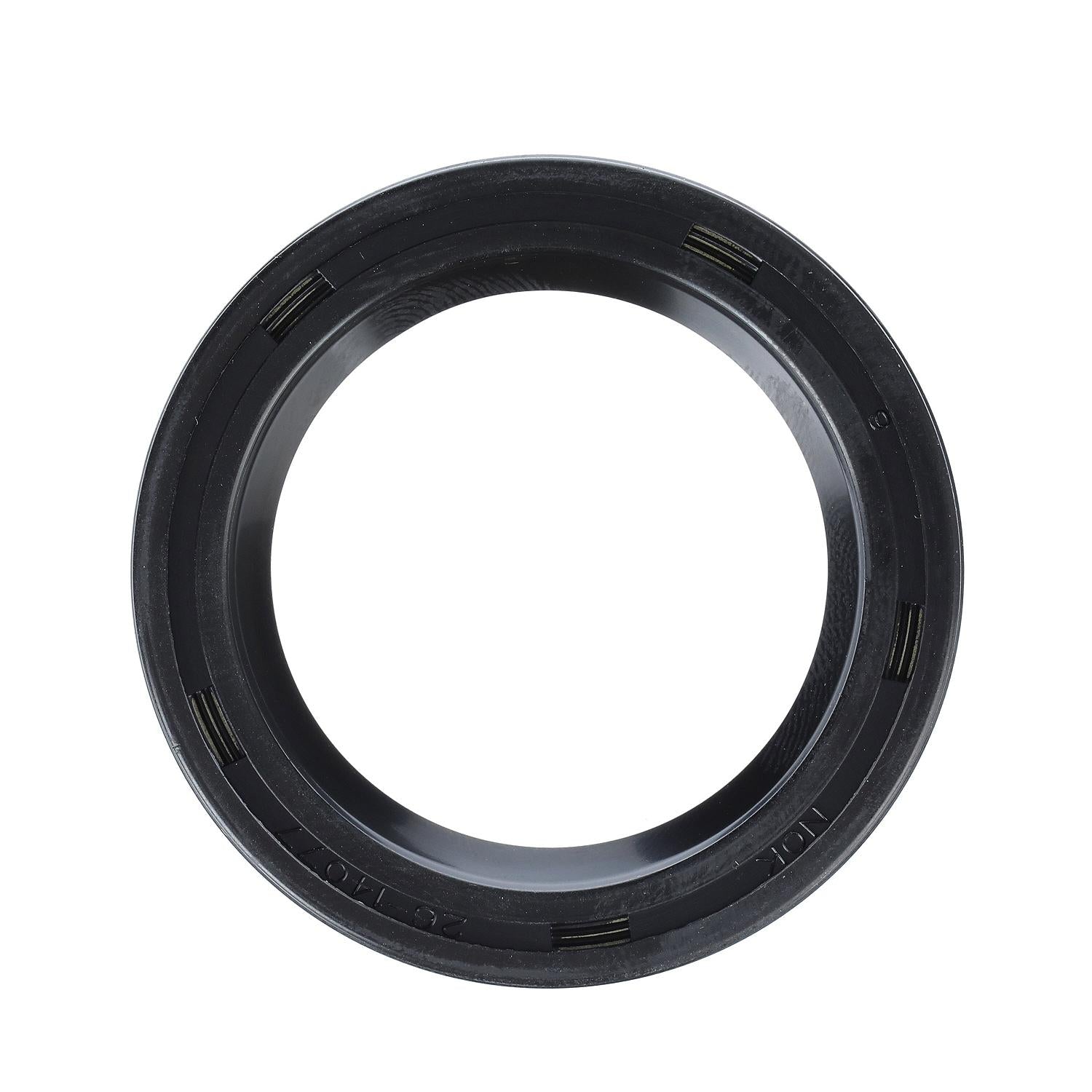

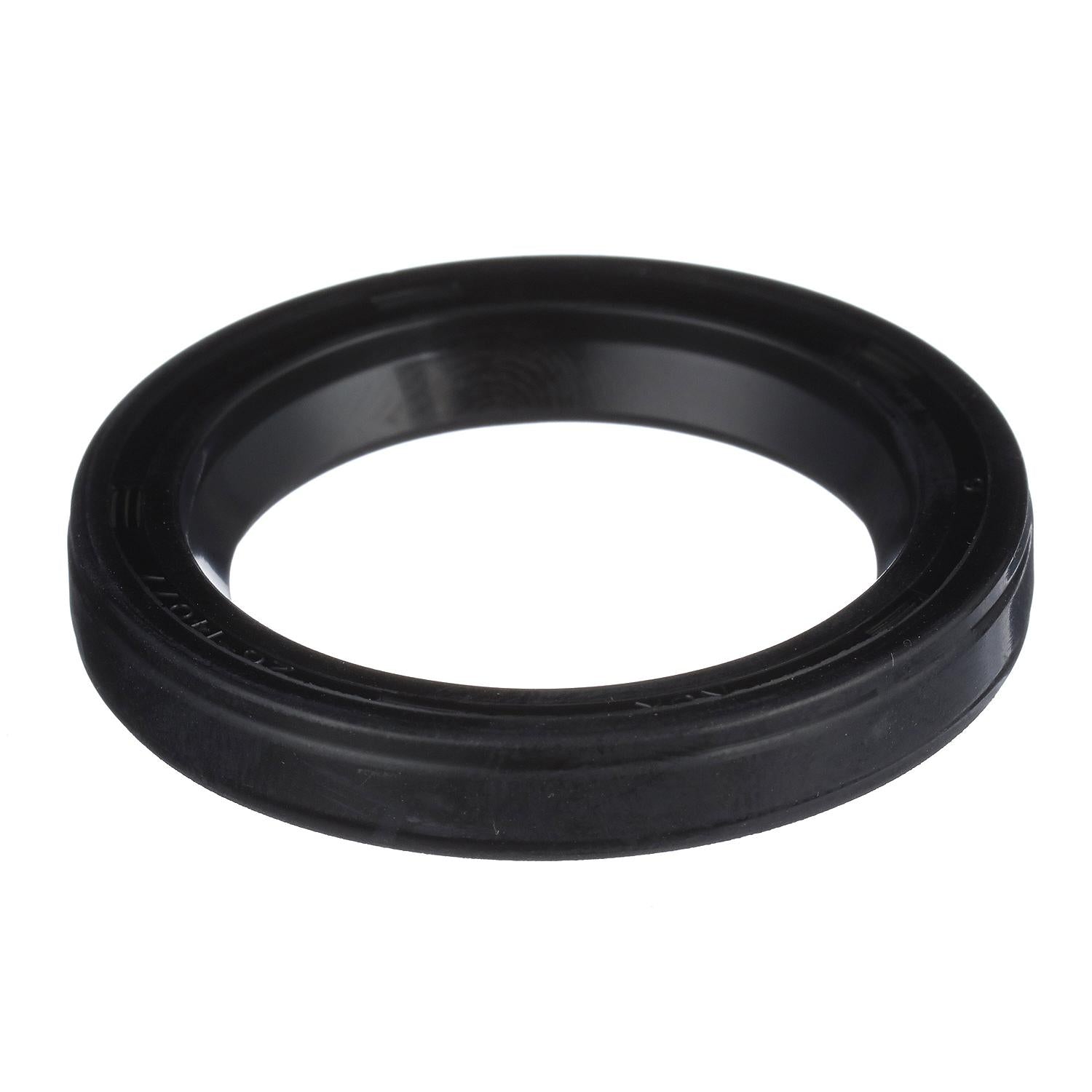

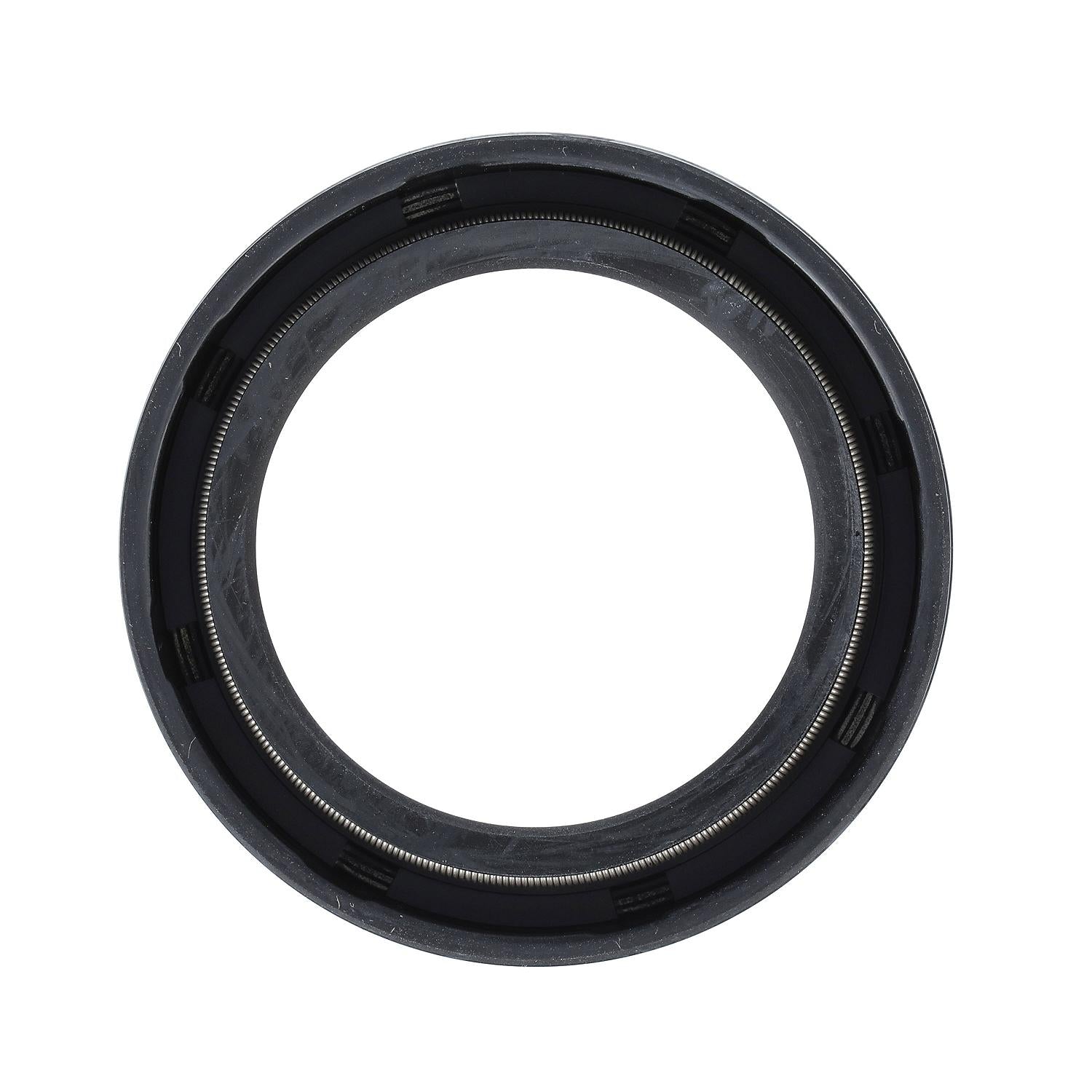

Quicksilver 14077 Bearing Carrier Seal for MerCruiser and Mercury Applications
The Quicksilver 14077 Bearing Carrier Seal is produced to meet Mercury Marine original equipment manufacturer specifications for compatible Mercury, Mariner, Force, and MerCruiser applications. This replacement seal is used on select MerCruiser sterndrives and a wide range of Mercury 2-stroke outboard gearcase applications where part number 14077 is specified.
Key Features
- Quicksilver bearing carrier seal replacement
- Part number: 14077
- Mercury part reference: 26-14077
- Fits select MerCruiser MR, Alpha One, Alpha One SS, and Alpha One Gen II sterndrives
- Also fits select Mercury, Mariner, and Force 2-stroke outboard applications
- Produced to meet Mercury Marine OEM specifications
- Designed for bearing carrier / gearcase seal service
- Use owner’s manual or service manual for specific application and installation instructions
Fitment / Product Details
- Brand: Quicksilver
- Part Number: 14077
- Mercury Part Reference: 26-14077
- BU Part ID: 14077
- Product Type: Bearing carrier seal / oil seal
- Application: Select Mercury and Mariner outboards, Force outboards, and MerCruiser sterndrive bearing carrier seal applications
- Engine Types: 2-stroke outboards and MerCruiser sterndrive applications
- HP Range: 90HP to 300HP outboard applications, plus compatible MerCruiser sterndrive applications
- Drive Applications: MR, Alpha One, Alpha One SS, Alpha One Gen II, Vazer Drive, and Vazer Transom applications where specified
- Assembly Location: Bearing carrier / gearcase seal area
- Supersession From: F697555
- UPC: 745061080034
- Country of Origin: ID
- Prop 65: No
- Packaged Quantity: 1
- Package Dimensions: 4.4 in L x 0.5 in H
- Package Weight: 0.02 lb
- Category: Parts
- Subcategory: Sterndrive
- Fitment Note: Match part number 14077 or 26-14077 to your engine model, drive model, serial number, and service manual before ordering.
Expanded Outboard Fitment
- Force 90HP 2-Stroke: 1990-1994
- 105HP Jet 2-Stroke: Serial range 0G303046 through 0G760299
- 110HP 2.5L Jet 2-Stroke: Serial range 1B690542 through 1B974227
- 115HP 2.5L 2-Stroke: Serial range 0G960500 through 0T178499
- 135HP 2.5L 2-Stroke: Serial range 0G590000 through 1B737495
- 140HP Jet 2-Stroke: Serial range 0G303046 through 0T178499
- 150HP 2.5L 2-Stroke: Serial range 0G590000 through 1B580029
- 150HP 2.5L Pro XS 2-Stroke: Serial range 1B690542 through 2B535572
- 150 / 200HP EFI Pro Max / Super Max 2-Stroke: Serial range 0D935000 through 0G856999
- 175HP 2.5L 2-Stroke: Serial range 0T178500 through 1B508457
- 175HP 2.5L Pro XS 2-Stroke: Serial range 1B516339 through 2B535624
- 200HP 2.5L 2-Stroke: Serial range 0G386496 through 1B504988
- 200HP 3.0L 2-Stroke: Serial range 0T750164 through 1B504988
- 200HP 2.5L 2-Stroke: Serial range 0G590000 through 0T800999
- 225HP 3.0L Carb 2-Stroke: Serial range 0D280813 through 0T408999
- 225-250HP 3.0L EFI 2-Stroke: Serial range 0G129222 through 1B504988
- 250HP 3.0L XS 2-Stroke: Serial range 0T651945 through 1E000796
- 300HP 3.0L Marathon EFI 2-Stroke: Serial range 0T409000 through 0T800999
- 300HP 3.0L Pro Max EFI 2-Stroke: Serial range 0G610221 through 0T105297
- V-135HP 2-Stroke: Serial range 0G303046 through 0T178499
- V-150 / 175 / 200HP 2.5L EFI 2-Stroke: Serial range 0G303046 through 1B226999
- XR-6 / Magnum III 2-Stroke: Serial range 0G303046 through 1B226999
Expanded Sterndrive Fitment
- MerCruiser MR / Alpha One: 1983-1990, serial range 6225577 through 0D469858
- MerCruiser MR / Alpha One Counter Rotation: 1983-1990, serial range 6225577 through 0D469858
- MerCruiser Alpha One SS: 1983-1995
- MerCruiser Alpha One Gen II: 1996-current
- Vazer Drive: Use where part number 14077 is specified
- Vazer Transom: Use where part number 14077 is specified
Why You Should Buy
- Correct Quicksilver replacement seal for applications requiring part number 14077
- Supports bearing carrier and gearcase seal service on compatible outboards and sterndrives
- Fits a broad range of Mercury 2-stroke outboard horsepower applications from 90HP to 300HP
- Fits select MerCruiser Alpha One and Alpha One Gen II sterndrive applications
- Helps replace worn, damaged, or leaking bearing carrier seals during routine service or repair
Common Applications
- MerCruiser Alpha One bearing carrier seal replacement
- MerCruiser Alpha One Gen II seal service
- MerCruiser Alpha One SS seal replacement
- Mercury 2-stroke outboard gearcase seal service
- Force 90HP 2-stroke outboard applications
- Mercury Pro XS, Pro Max, Super Max, Marathon EFI, XR-6, and Magnum III applications where specified
- Vazer Drive and Vazer Transom service where 14077 is required
FAQ
- What is Quicksilver 14077? Quicksilver 14077 is a bearing carrier seal used on select Mercury, Mariner, Force, and MerCruiser applications.
- Is 26-14077 the same part reference? Yes. Mercury 14077 is also referenced as 26-14077.
- What horsepower range does this seal fit? This seal fits select 90HP to 300HP 2-stroke outboard applications, plus compatible MerCruiser sterndrive applications.
- What engine types does this fit? This seal fits select Mercury, Mariner, and Force 2-stroke outboards, along with compatible MerCruiser sterndrive applications.
- Does this fit Alpha One Gen II? Yes. This seal is listed for Alpha One Gen II applications from 1996-current where part number 14077 is specified.
- Does this fit Alpha One SS? Yes. This seal is listed for Alpha One SS applications from 1983-1995.
- Does this fit Force 90HP? Yes. This seal is listed for Force 90HP 2-stroke applications from 1990-1994.
- What part number does this supersede from? This seal supersedes from F697555.
- What is the UPC? The UPC is 745061080034.
- Does this item have a Prop 65 warning? No. The provided Prop 65 value is No.
- How should I confirm fitment? Match part number 14077 or 26-14077 to your engine model, drive model, serial number range, and service manual before ordering.
