Description
FLOE Kit, QA Roll-In Dock Cleat 10" Cast Aluminum – Includes Attachment Kit (510-02604-00)
Add a strong, clean tie-off point to your FLOE Quick Attach Roll-In dock with the FLOE 10" Cast Aluminum Dock Cleat Kit. This kit includes the 10" cast aluminum dock cleat plus the Quick Attach Roll-In cleat bracket and mounting hardware, so you can install a cleat where you need it along the dock side channel.
FLOE’s instructions show the bracket sliding into the dock side in your desired location, then clamping in place using the (2) bottom bolts. A 9/16" socket and torque wrench are recommended, and FLOE specifies tightening the bottom bolts to a maximum of 6 ft-lbs.
Applications
- Adding a tie-off cleat to FLOE Quick Attach Roll-In dock systems
- Replacing a missing/damaged cleat and bracket on an existing QA Roll-In dock
- Great for customizing mooring points along your dock edge
Shipping & Returns
Orders ship via UPS or USPS depending on package size and destination. Returns are handled per our policy: /policies/refund-policy.
Key Facts
- Brand: FLOE
- Kit Part Number: 510-02604-00
- Dock Compatibility: FLOE Quick Attach Roll-In docks
- Cleat Size: 10"
- Cleat Material: Cast aluminum
- Tools Required: 9/16" socket, torque wrench
- Torque Spec: Bottom bolts torque to 6 ft-lbs max

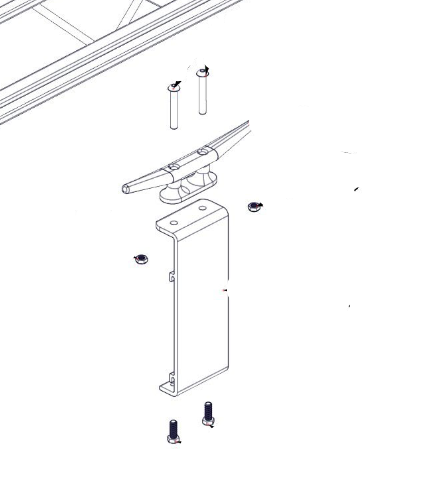

What’s Included
- Dock Cleat: Qty 1 FLOE Dock Cleat, 10" Cast Aluminum (510-34300-00)
- Cleat Bracket: Qty 1 Bracket, QA Roll-In Dock Cleat (002-00286-00)
- Bottom Bolts: Qty 2 HHCS 3/8-16 x 1" SS (001-70105-00)
- Upper Bolts: Qty 2 BHCS 3/8-16 x 2-1/2" SS 18-8 (001-73821-00)
- Nuts: Qty 2 Nut, 3/8-16 Jam Nylock – Zinc (001-37026-00)
Service Notes
- Designed specifically for FLOE Quick Attach Roll-In docks; confirm dock style before ordering.
- Position the bracket in the dock side channel where desired, then tighten the bottom bolts to clamp it in place (6 ft-lbs max per FLOE). :contentReference[oaicite:2]{index=2}
- Re-check hardware tightness after initial setup and at the start of each season.
